1. Introduction

This guide provides instructions for installing the pedestal anchor for the CoRe+ and
TM
CoRe+ MAX .
TM

2. Pedestal Anchor

The pedestal is designed to be mounted on a prefabricated anchor with free space in the
center that has conduit openings to allow for the passage of the power supply cables. The
sections below show the installation details. Certain types of installations may require a
concrete base. Refer to the section below for more information.

2.1. Anchor Specifications

The installer can use a FLO prefabricated anchor (part number: ACAN0001 or C+V1-
TM
ANCHOR) or make their own using 304.8 mm (12"), 12.7 mm (½") diameter threaded rods
spaced according to the image below.

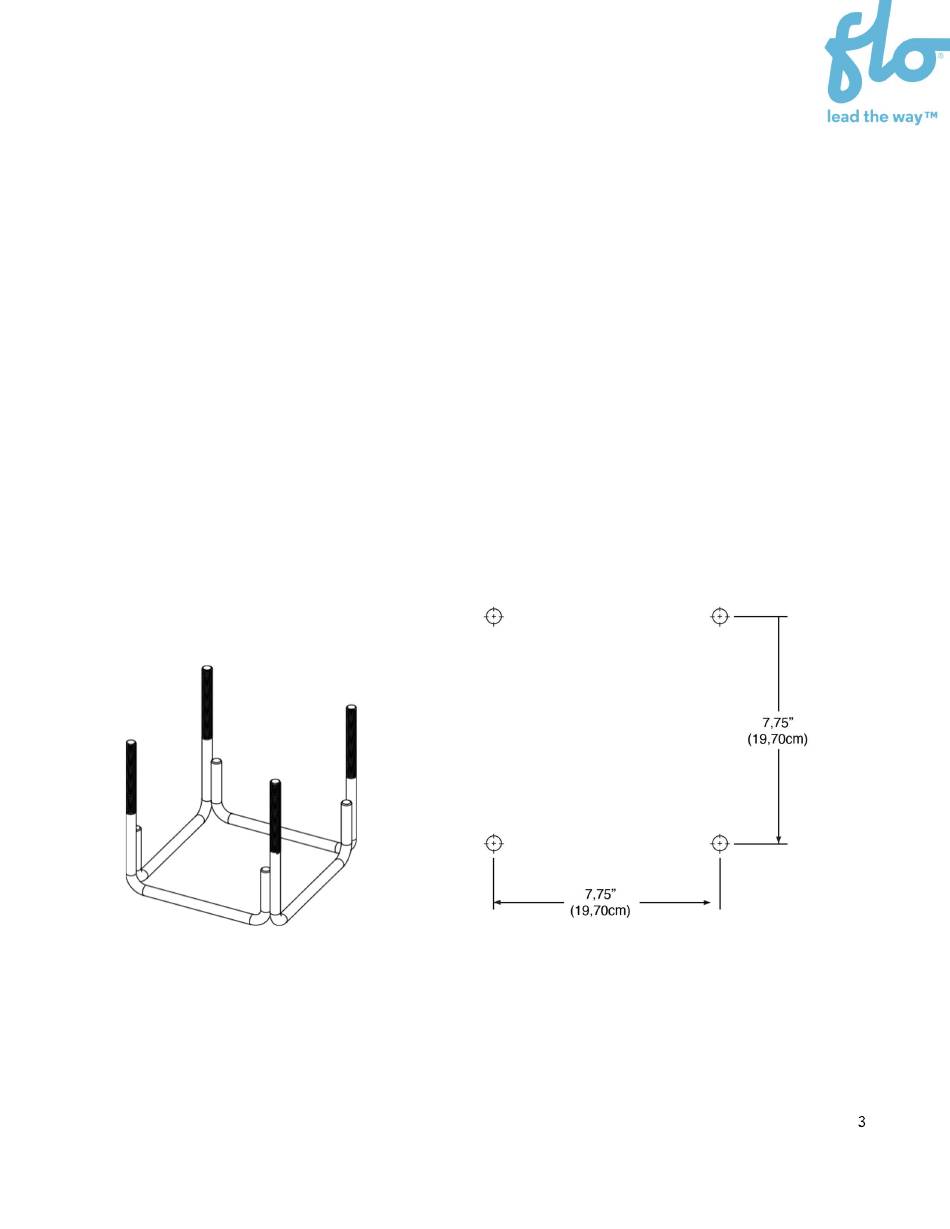

Prefabricated anchor
Threaded rod
