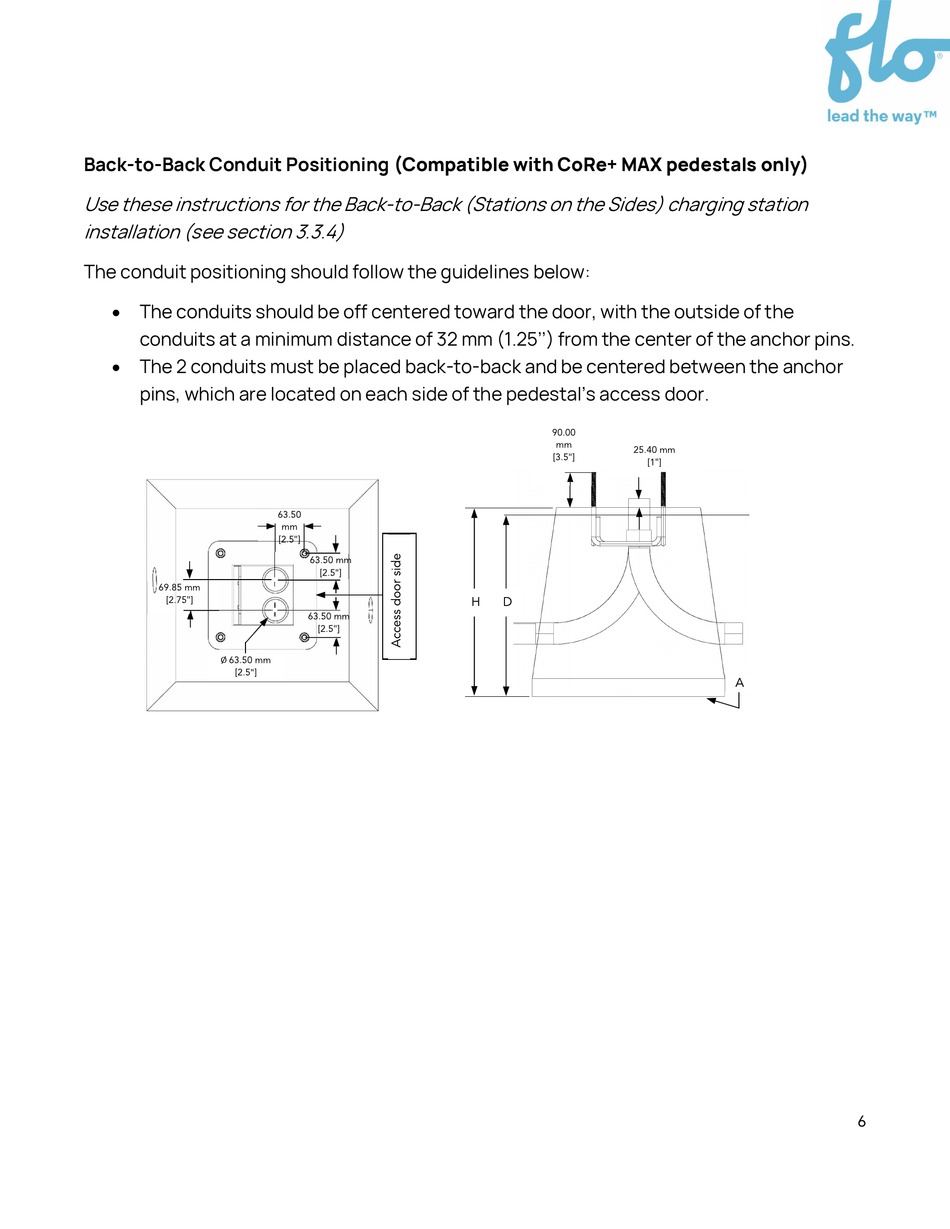

Flo CoRe+ Installation Manual page 6

Back-to-Back Conduit Positioning (Compatible with CoRe+ MAX pedestals only)
Use these instructions for the Back-to-Back (Stations on the Sides) charging station
installation (see section 3.3.4)
The conduit positioning should follow the guidelines below:
 The conduits should be off centered toward the door, with the outside of the
conduits at a minimum distance of 32 mm (1.25'') from the center of the anchor pins.
 The 2 conduits must be placed back-to-back and be centered between the anchor
pins, which are located on each side of the pedestal's access door.
"
Ø
"
"
"
"
"
"
