Summary of Contents for Labnet VorTemp 1550

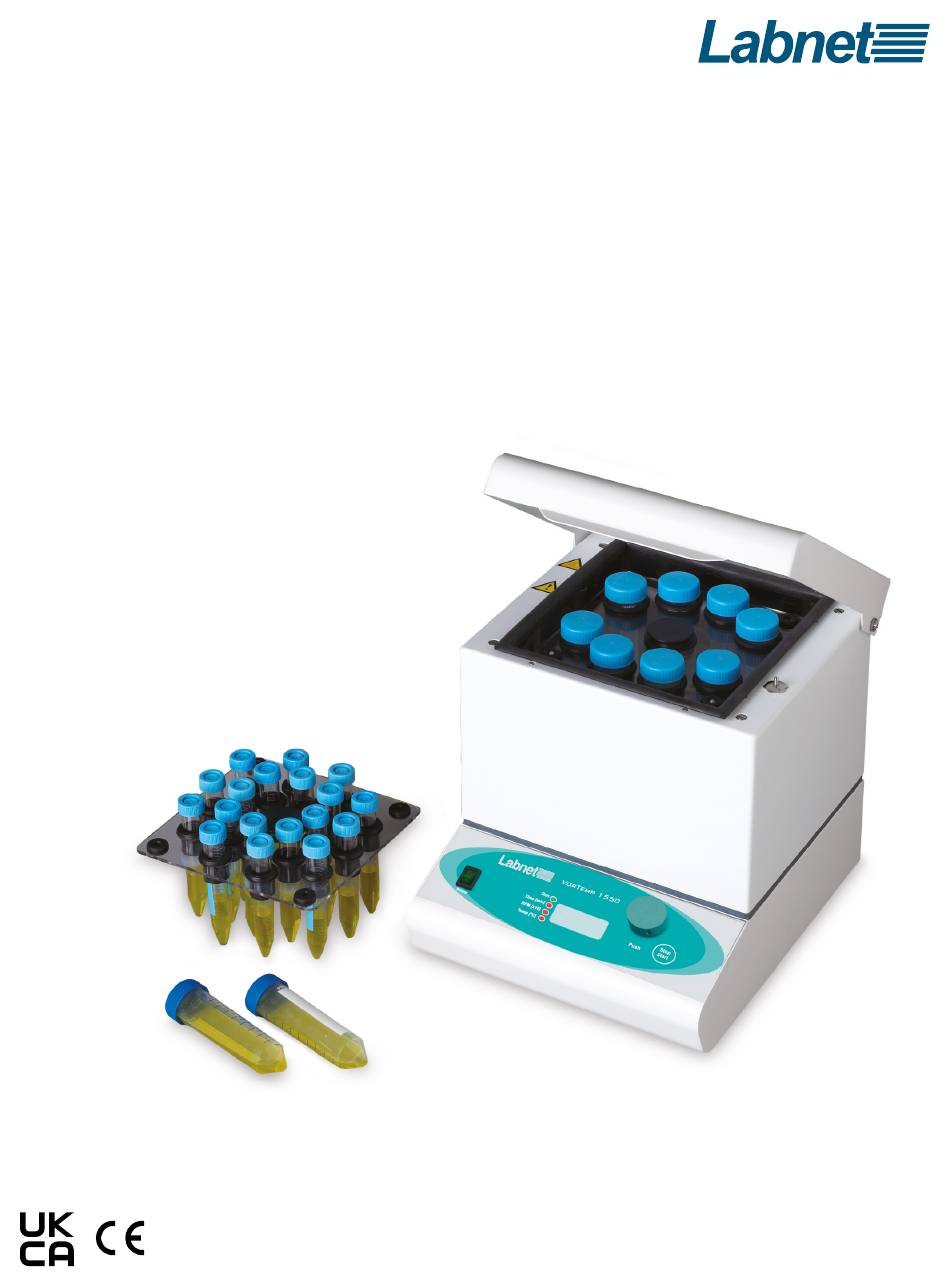

- Page 1 Labnet VorTemp™ 1550 Shaking Incubator Instruction Manual Catalog Numbers: S2050A S2050A-230V...
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction ................. . .1 1.1 Symbols and Conventions . -
Page 3: Introduction
1.0 Introduction The Labnet VorTemp™ 1550 shaking incubator is designed for simultaneous heating and mixing of small samples. It replaces two devices, reducing both time and space needed. It is suitable for biochemistry, microbiology, and clinical laboratories in which applications require temperature and shaking treatment. -
Page 4: Construction
(surges) or voltage interruptions in mains power supply. 3.1. Construction The housing of Labnet VorTemp 1550 shaking incubator is constructed of steel plate coated with highly resistant polyurethane lacquer. The interior chamber is isolated with special thermal protection materials and insulation foam. Both the shaking mechanism and temperature chamber regulated via microprocessors, which control all sensors for motor speed, temperature, and time. -
Page 5: Installation
6.4. Platforms There are two platforms available for the Labnet VorTemp™ 1550 shaking incubator. The 50 mL Conical Tube Platform can accommodate up to 8 x 50 mL test tubes. The 15 mL Conical Tube Platform accommodates up to 18 x 15 mL test tubes. -
Page 6: Operating Instructions
Press the Power Key on the control panel. On the LED display the unit will automatically detect the line frequency F50 (50Hz) or F60 (60Hz). Encoder Time [min] Power RPM [x10] Start Stop Temp [°C] After a 2-second delay the unit will then default to the Time setting. Encoder Time [min] Power 99.5 RPM [x10] Start Stop Temp [°C] LABNET VORTEMP 1550 SHAKING INCUBATOR... - Page 7 Time Illuminated Rotating the Encoder knob, right (+) or left (-) sets the run time to the desire value from 30 sec. to 99 min. 50 sec.: 99.5 = 99 min. 50 sec. 9.59 = 9 min. 59 sec. 0.30 = 30 sec.
-
Page 8: Shaking Without Heating
NOTE: The shaker motor drives the fan, which circulates warm air throughout the chamber aiding in temperature uniformity. If the RPM is set to OFF, the temperature control will not be as precise due to lack of airflow over the heating element. Maximum set temperature in this program is 70°C. LABNET VORTEMP 1550 SHAKING INCUBATOR... -
Page 9: Additional Operations
2 sec. the display will show the actual Temperature and the light will stop blinking. 8.0 Troubleshooting The Labnet VorTemp™ 1550 shaking incubator features built in self-diagnostic procedures which are constantly checking the operating parameters and performance, as well as functions that are necessary for safe and reliable operation. An error code is shown on the LCD display if an error occurs. -
Page 10: Temperature Calibration
No individual may accept for, or on behalf of Corning, any other obligation of liability, or extend the period of this warranty. For your reference, make a note of the serial and model number, date of purchase, and supplier here. Serial No. ______________________________________ Date Purchased _______________________________________ Model No. _____________________________________ Supplier _____________________________________________ LABNET VORTEMP 1550 SHAKING INCUBATOR... -
Page 11: Equipment Disposal
12.0 Equipment Disposal According to Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE), this product is marked with the crossed-out wheeled bin and must not be disposed of with domestic waste. - Page 12 To request certificates, please contact us at www.labnetlink.com. Warranty/Disclaimer: Unless otherwise specified, all products are for research use or general laboratory use only.* Not intended for use in diagnostic or therapeutic procedures. Not for use in humans. These products are not intended to mitigate the presence of microorganisms on surfaces or in the environment, where such organisms can be deleterious to humans or the environment.
