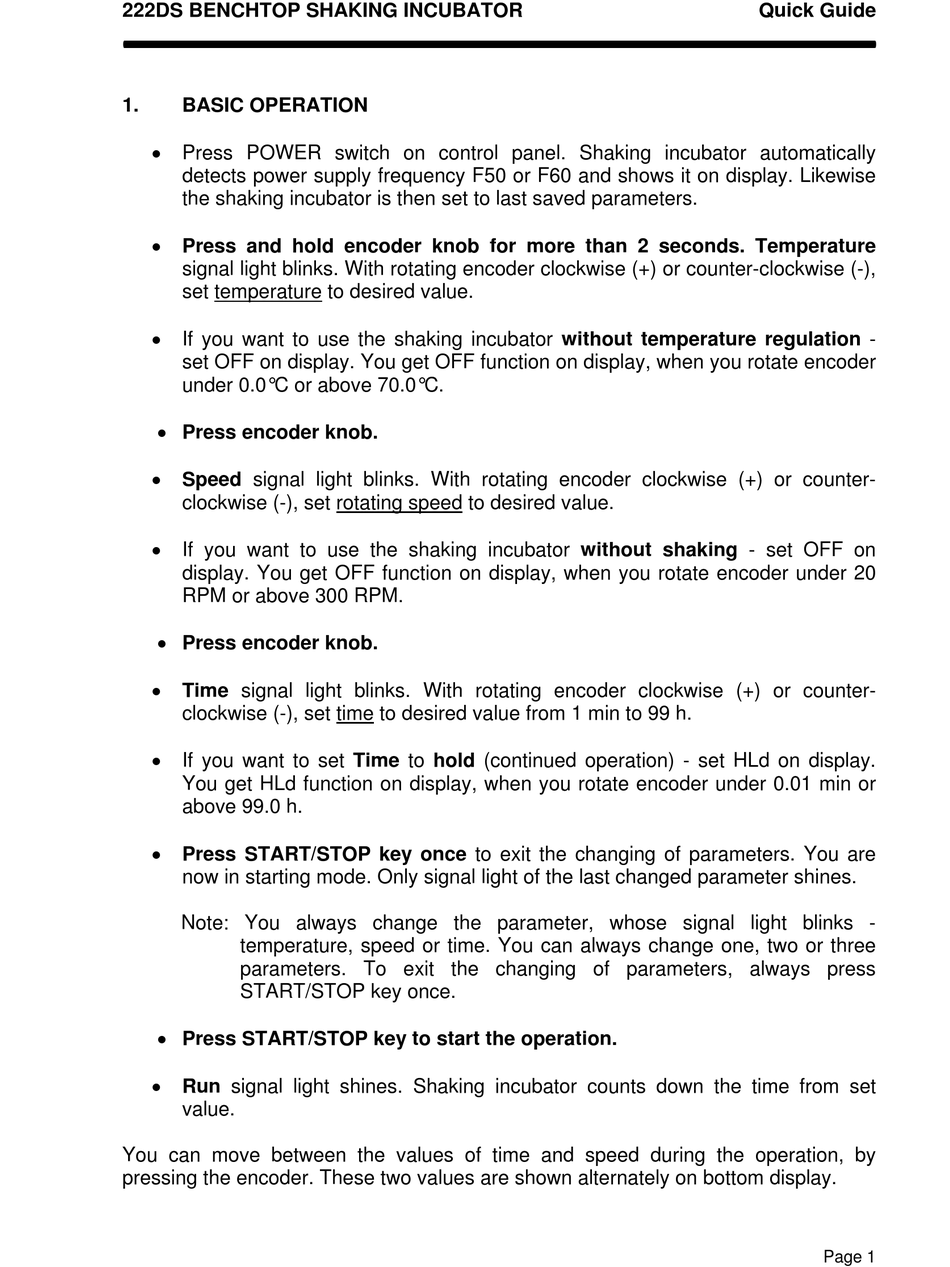

222DS BENCHTOP SHAKING INCUBATOR
1.

BASIC OPERATION

 Press POWER switch on control panel. Shaking incubator automatically
detects power supply frequency F50 or F60 and shows it on display. Likewise
the shaking incubator is then set to last saved parameters.
 Press and hold encoder knob for more than 2 seconds. Temperature
signal light blinks. With rotating encoder clockwise (+) or counter-clockwise (-),
set temperature to desired value.
 If you want to use the shaking incubator without temperature regulation -
set OFF on display. You get OFF function on display, when you rotate encoder
under 0.0°C or above 70.0°C.
 Press encoder knob.
 Speed signal light blinks. With rotating encoder clockwise (+) or counter-
clockwise (-), set rotating speed to desired value.
 If you want to use the shaking incubator without shaking - set OFF on
display. You get OFF function on display, when you rotate encoder under 20
RPM or above 300 RPM.
 Press encoder knob.
 Time signal light blinks. With rotating encoder clockwise (+) or counter-
clockwise (-), set time to desired value from 1 min to 99 h.
 If you want to set Time to hold (continued operation) - set HLd on display.
You get HLd function on display, when you rotate encoder under 0.01 min or
above 99.0 h.
 Press START/STOP key once to exit the changing of parameters. You are
now in starting mode. Only signal light of the last changed parameter shines.
Note: You always change the parameter, whose signal light blinks -
temperature, speed or time. You can always change one, two or three
parameters. To exit the changing of parameters, always press
START/STOP key once.
 Press START/STOP key to start the operation.
 Run signal light shines. Shaking incubator counts down the time from set
value.
You can move between the values of time and speed during the operation, by
pressing the encoder. These two values are shown alternately on bottom display.
