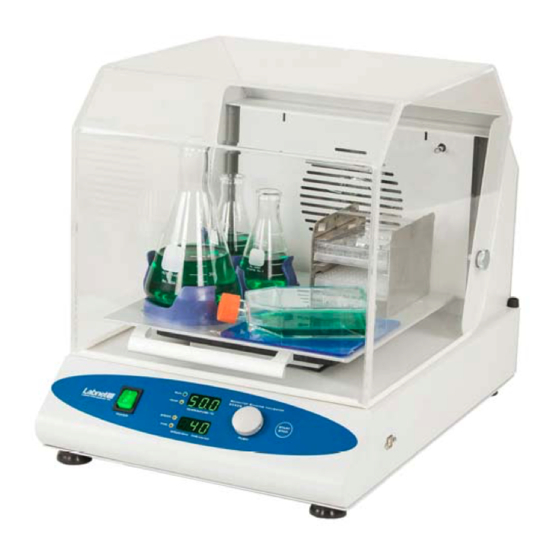

Labnet I-5222-DS User Manual

222ds benchtop shaking incubator
Hide thumbs Also See for I-5222-DS:
Table of Contents

Advertisement

Quick Links

Download this manual
222DS Benchtop Shaking Incubator
User Manual
I-5222-DS
I-5222-D-230V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-5222-DS and is the answer not in the manual?

Questions and answers

Related Manuals for Labnet I-5222-DS

Summary of Contents for Labnet I-5222-DS

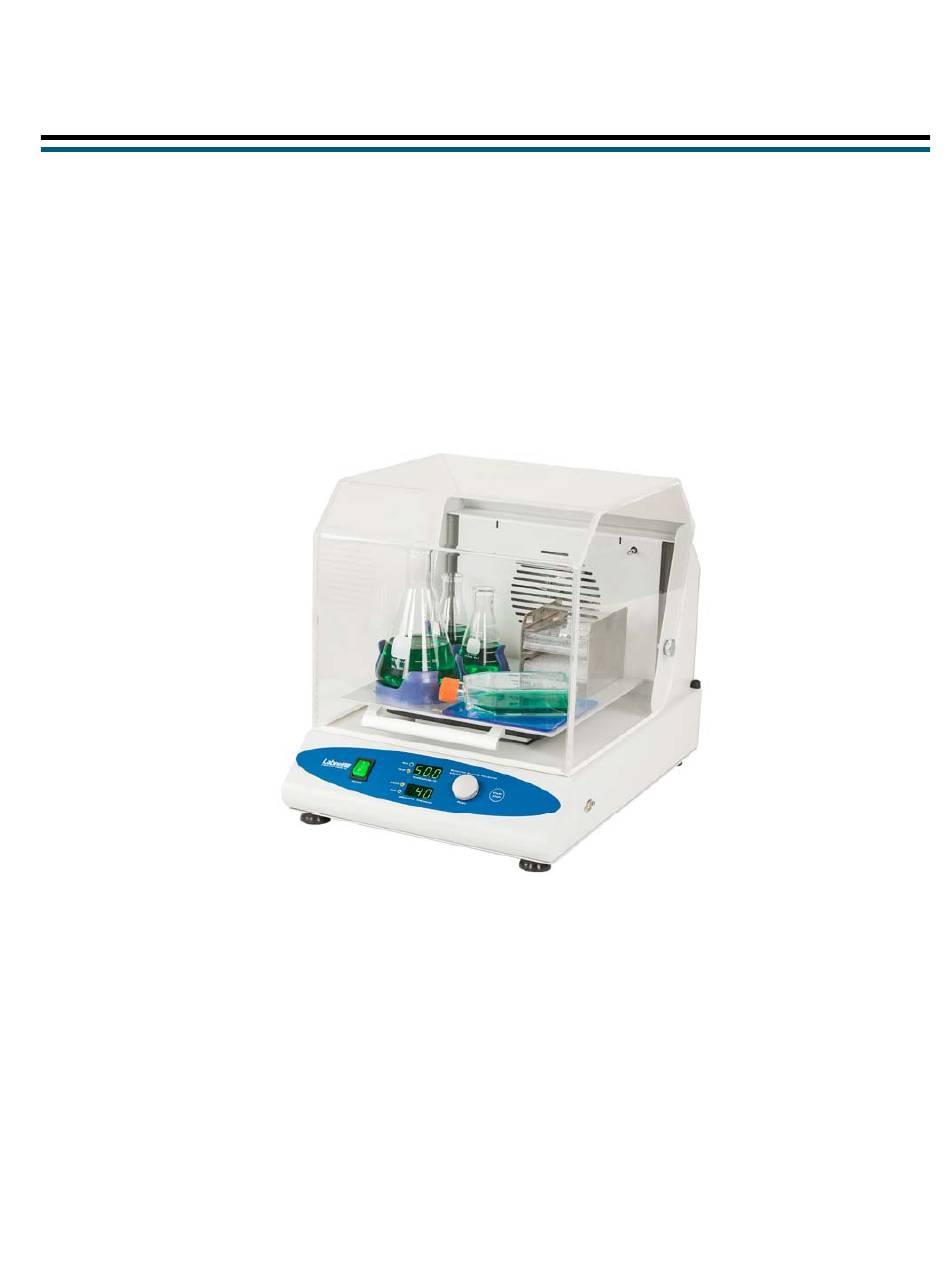

  • Page 1 222DS Benchtop Shaking Incubator User Manual I-5222-DS I-5222-D-230V...

  • Page 2: Table Of Contents

    BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL TABLE OF CONTENTS Page 1.0. GENERAL INFORMATION DEFINITION KEY FEATURES 2.0. TECHNICAL DESCRIPTION CONSTRUCTION INSTALLATION UNPACKING SELECTING THE RIGHT PLACE ATTACHING POWER CORD ATTACHING SHAKER PLATFORMS STARTING UP 3.5.1 STARTING UP CHECK LIST GENERAL SAFETY RECOMMENDATIONS INSTRUCTION FOR USE INTRODUCTION BASIC OPERATIONS...

  • Page 3: General Information

    BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL GENERAL INFORMATION DEFINITION 222DS BENCHTOP SHAKING INCUBATOR is a combination product of a shaker and a temperature chamber, designed for shaking and heat treatment of sensitive samples. It replaces two devices, reduces time and space needed. It is very suitable for biochemistry, microbiology and medicine laboratories in which thermal and shaking treatment of samples is a daily used routine.

  • Page 4: Installation

    BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL INSTALLATION UNPACKING Before starting the installation, carefully examine the delivery for possible damage or missing parts: Open the box and lift the device, together with the shock absorbers, out of the box. Remove the shock absorbers and check that the machine has not been visibly damaged during the transportation.

  • Page 5: Attaching Power Cord

    BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL ATTACHING POWER CORD Fit the mains cord, which is included in the delivery, into the mains receptacle. Connect the other end of the cord to a grounded wall socket. ATTACHING SHAKING PLATFORMS The SHAKING INCUBATOR has a variety of platforms available, to meet most of the shaking needs.

  • Page 6: Instruction For Use

    BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL INSTRUCTIONS FOR USE INTRODUCTION POWER 1. POWER switch - switch ON (power switch shines) or OFF the shaking incubator. 2. RUN green signal light - shines when the shaking incubator is running. 3. TEMPERATURE yellow signal light - shines when the shaking incubator is set on temperature.
  • Page 7 BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL  Press and hold encoder knob for more than 2 seconds. Temperature signal light blinks. With rotating encoder clockwise (+) or counter-clockwise (-), set temperature to desired value: 37.5  37.5°C POWER  If you want to use the shaking incubator without temperature regulation - set OFF on display.
  • Page 8 BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL  If you want to use the shaking incubator without shaking - set OFF on display. You get OFF function on display, when you rotate encoder under 20 RPM or above 300 RPM.  Press encoder knob. ...

  • Page 9: Changing Parameters During Operation

    BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL CHANGING PARAMETERS DURING OPERATION Note: You can not modify time during operation.  If you want to change Temperature during operation, press and hold encoder knob for more than 2 sec. Temperature signal light blinks. Rotate encoder clockwise (+) or counter-clockwise (-), to set the desired value.

  • Page 10: Description Of Possible Errors

    BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL DESCRIPTION OF POSSIBLE ERRORS E 11: This error message appears, when something is wrong with motor regulation (PWM regulator, pulse generator, motor). Shaking incubator is automatically stopped. Call nearest service. E 12: This error appears, when the motor does not reach set speed in 30 seconds. Shaking incubator is automatically stopped.

  • Page 11: Temperature Re-Adjustment

    BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL TEMPERATURE RE-ADJUSTMENT Shaking incubator has a software for temperature re-adjustment. First you have to measure the temperature in the middle of the chamber, or even better in the sample, for minimum 2 hours. You have to measure the temperature with a calibrated digital temperature thermometer, with precision 0.1°C or more.
  • Page 12 BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL Cleaning: • For cleaning the lid, do not use the cleaners, which could damage the surface! Do not use: acetone, benzene, paint thinner, carbon tetrachloride or other aggressive liquids, because they can damage the surface of acrylic lid. •...

  • Page 13: Positioning Of Attachments On Shaking Platform

    BENCHTOP SHAKING INCUBATOR 222DS USER'S MANUAL POSITIONING OF ATTACHMENTS ON SHAKING PLATFORM You can mount different attachments on shaking platform. Follow below diagram as a guideline for positioning different flasks and accessories. EQUIPMENT DISPOSAL This equipment is marked with the crossed out wheeled bin symbol to indicate that this equipment must not be disposed of with unsorted waste.
  • Page 14 Number: CE 00701 Labnet International, Inc,., 31 Mayfield Ave., Edison, NJ 08837 USA Labnet International declares that the devices described below are in conformity with the EC directives listed. In the event of unauthorized modification of any of the devices listed below, this declaration becomes invalid.
  • Page 15 This warranty gives you specific legal rights. You may have other rights which vary from state to state. No individual may accept for, or on behalf of Labnet International, Inc., any other obligation of liability, or extend the period of this warranty.
