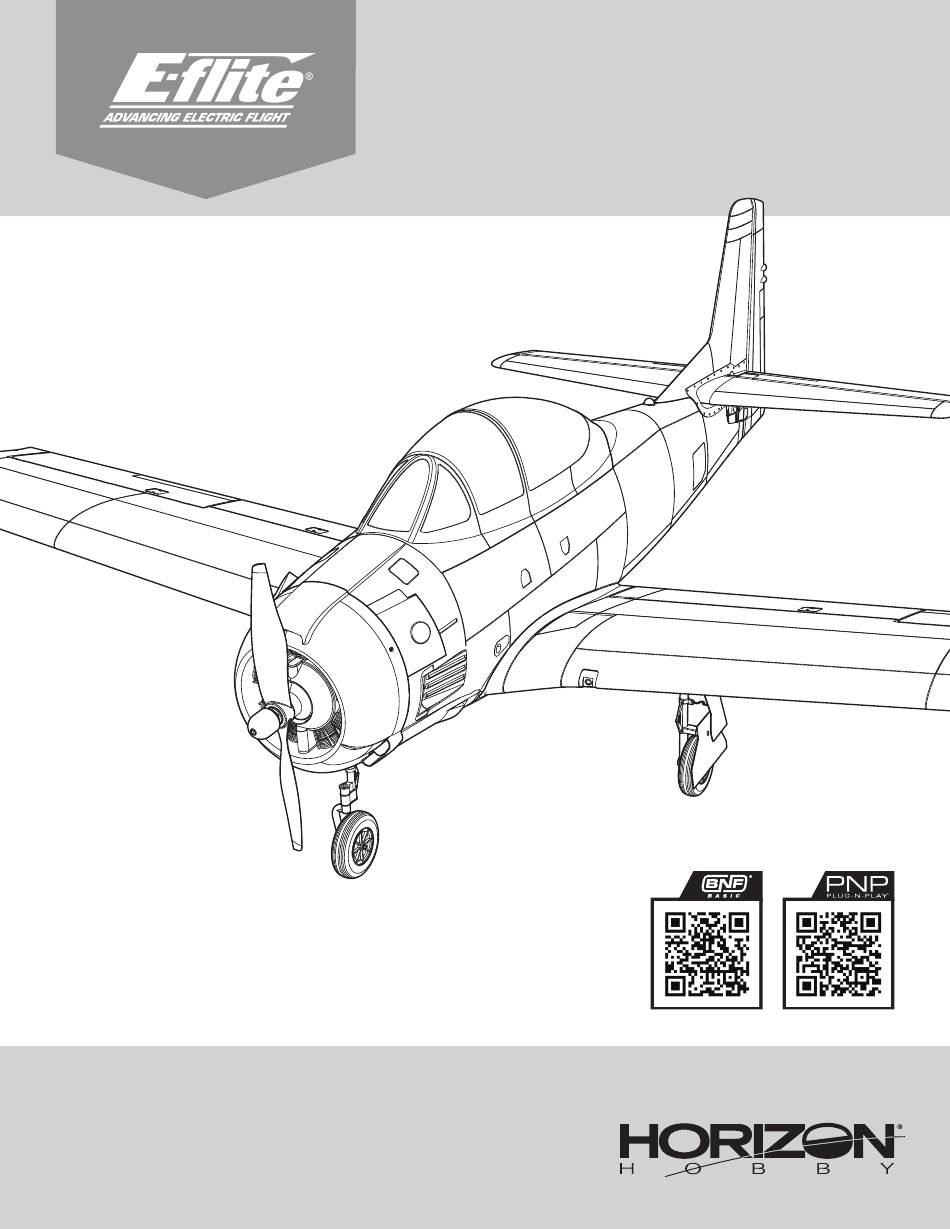

Carbon-Z
T-28 2.0m
®
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
EFL013550
EFL013575
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
163032
Created 10/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-FLITE Carbon-Z T-28 and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby E-FLITE Carbon-Z T-28

  • Page 1 Carbon-Z T-28 2.0m ® Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher. Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la page du produit pour obtenir les informations les plus récentes sur le manuel.
  • Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
  • Page 3: Table Of Contents

    Registration Specifications Wingspan 78" (1980mm) Register your product today to join our mailing list and keep Length 63" (1620mm) up to date with product updates, offers and E-flite news. ® Without Battery: 10.4lbs (4729g) Weight With Recommended 6S 5000mAh Flight Battery: 12.0lbs (5463g) Included Equipment Receiver Spektrum...
  • Page 4: Transmitter Setup

    Transmitter Setup IMPORTANT: After you set up your model, always rebind the transmitter and Computerized Transmitter Setup receiver to set the desired failsafe positions. (DX6e‡, DX6‡, DX7, DX7S, DX8, DX8e, DX9, DX10t, DX18, DX20, iX12, iX14, IMPORTANT: Flap to elevator mix values, control throws, dual rates, exponential, iX20, NX6, NX8, and NX10) CG range are recommended as STARTING POINTS and should be adjusted for Start all transmitter programming with a blank ACRO model (do a model reset),...
  • Page 5: Aircraft Assembly

    Aircraft Assembly Motor and Propeller Installation 1. Using a 3mm hex driver, install the motor on the fuselage using four M4 x 45mm flat head screws. 2. Correctly align and connect the motor wire colors with the ESC wires. 3. Using a PH#0 Phillips screwdriver, install the cowling on the fuselage using three M2 x 8mm flat head screws.
  • Page 6 Vertical Stabilizer Installation 1. Connect the rudder and elevator servo connectors to the servo extensions in the fuselage. 2. Slide the vertical stabilizer assembly into the slot in the fuselage. CAUTION: DO NOT crush or damage the wiring when attaching the vertical stabilizer assembly to the fuselage.
  • Page 7 4. Insert the Z-bend end of the elevator push rod in the middle hole of the elevator servo arm, as shown. 5. Attach the clevis end to the second outermost hole of the elevator control horn. CAUTION: Ensure the rubber retention sleeve is properly installed on the clevis.
  • Page 8 4. Install two wing joiner brackets in the bottom of the wing as shown to secure the wing panels together. TIP: The wing joiner brackets have an arrow molded in the bottom surface. The arrow should face the front of the wing. 5.
  • Page 9: Battery Installation And Esc Arming

    Battery Installation and ESC Arming We recommend the Spektrum 5000mAh 6S 22.2V Smart G2 30C (SPMX56S30). ™ Refer to the Optional Parts List for additional recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the recommended battery packs to fit in the fuselage.
  • Page 10 General Binding Tips and Failsafe • The included receiver has been specifically programmed for operation of this • Once bound, the receiver will retain its bind settings for that transmitter until aircraft. Refer to the receiver manual for correct setup if the receiver is replaced. you re-bind.
  • Page 11: Safe ® Select Switch Designation

    SAFE Select Switch Designation ® Assigning a Switch Once SAFE Select is enabled, you can choose to fly in SAFE mode full-time, or assign a switch. Any switch on any channel between 5 and 9 can be used on your 1.
  • Page 12: Control Surface Centering

    Control Surface Centering After assembly and transmitter setup, confirm that the control surfaces are centered. If the control surfaces are not centered, mechanically center the control surfaces by adjusting the linkages. After binding a transmitter to the aircraft receiver, set the trims and sub-trims to 0, then adjust the linkages to center the control surfaces.
  • Page 13: In Flight Trimming

    In Flight Trimming During your first flight, trim the aircraft for level flight at 3/4 throttle. Make small trim adjustments with your transmitter’s trim switches to straighten the aircraft’s flight path. After adjusting trim do not touch the control sticks for 3 seconds. This allows the receiver to learn the correct settings to optimize AS3X performance.
  • Page 14: Plug And Play (Pnp) Receiver Selection And Installation

    Plug and Play (PNP) Receiver Selection and Installation The Spektrum AR637T receiver is recommended for this airplane. If you choose to install another receiver, ensure that it is at least a 6-channel full range receiver. Refer to your receiver manual for correct installation and operation instructions. CAUTION: Incorrect installation of the receiver could cause a crash.
  • Page 15: As3X Troubleshooting Guide

    AS3X Troubleshooting Guide Problem Possible Cause Solution Flying over recommended airspeed Reduce air speed Damaged propeller or spinner Replace propeller or spinner Imbalanced propeller Balance the propeller. Adjust gain to current flight conditions (wind, updrafts, local conditions Flight condition variations [elevation, humidity, temperature, etc.]) Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed...
  • Page 16: Replacement Parts

    Replacement Parts Part # Description Part # Description EFL013551 Cowling EFLM1315 5040-500Kv Brushless Outrunner Motor, 14-Pole EFL013552 Hardware Set EFLP1475102E Propeller,14.75x10 2 Blade EFL013553 Horizontal Stab Set SPMAR637T AR637T 6CH SAFE and AS3X Telemetry Receiver EFL013554 Vertical Stabilizer SPMSA320B A320 16g Metal Gear Servo EFL013555 Left Wing SPMSA500...
  • Page 17: Limited Warranty

    Product, (iv) attempted service by anyone other Service Request submission process found on our website or call Horizon to obtain a than a Horizon Hobby authorized service center, (v) Product not purchased from an Return Merchandise Authorization (RMA) number. Pack the Product securely using a authorized Horizon dealer, (vi) Product not compliant with applicable technical regula- shipping carton.
  • Page 18: Fcc Information

    Champaign, IL 61822 USA Amending 2011/65/EU Annex II 2015/863. EU Importer of Record: EFL CZ T28 PNP (EFL013575): Hereby, Horizon Hobby, LLC declares that the Horizon Hobby, GmbH device is in compliance with the following: EU EMC Directive 2014/30/EU; RoHS...
  • Page 19 © 2022 Horizon Hobby, LLC. E-flite, Carbon-Z, AS3X, SAFE, the SAFE logo, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, the BNF logo, Plug-N-Play, Z-Foam, ModelMatch, IC3, IC5 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
