Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
Advertisement
Table of Contents
Related Manuals for Horizon Hobby E-FLITE HABUss
Summary of Contents for Horizon Hobby E-FLITE HABUss
- Page 1 Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
-
Page 2: Table Of Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product. MEANING OF SPECIAL LANGUAGE... -
Page 3: Included / Recommended Equipment

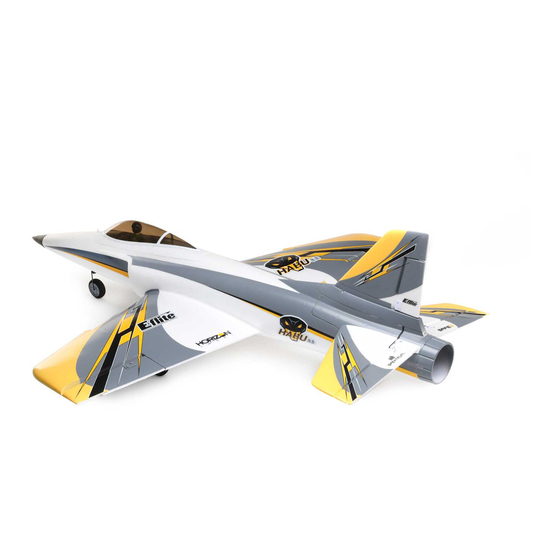

Included / Recommended Equipment 40.5 inches (1033mm) Without Battery: 1110g (2.4lbs) Motor: 2847–2400Kv 6-Pole Brushless Motor Installed Installed (SPMXAM2200) With 6S 3200mAh Battery: 1594g (3.5lbs) Fan Unit: 70mm Ducted Fan Unit (EFL0955) Installed Installed ESC: 70-Amp 3S/6S ESC w/Telemetry (SPMXAE70A) Installed Installed Servos: (2) 9g Mini Servo (SPMSA381) Installed... -
Page 4: Receiver Selection And Installation Pnp
Receiver Selection and Installation PNP The recommended receiver for this aircraft is the Spektrum AR631. If you choose to install a different receiver, it needs to be a 4-channel or more full range (sport) receiver. Refer to the manual of your chosen receiver for correct installation and operation instructions. -
Page 5: General Binding Tips And Failsafe Bnf
General Binding Tips and Failsafe BNF • The included receiver has been specifically programmed for operation of • Once bound, the receiver will retain its bind settings for that transmitter until this aircraft. Refer to the receiver manual for correct setup if the receiver is you re-bind. -
Page 6: Safe Select Switch Designation Bnf
SAFE Select Switch Designation BNF ® Forward Programming Once SAFE Select is enabled, you can choose to fly in SAFE mode full-time, or assign a switch. Any switch on any channel between 5 and 9 can be used on Assign the SAFE Select channel through forward programming on your your transmitter. -
Page 7: Assemble The Aircraft
Assemble the Aircraft Wing Installation 1. Position the wing and fuselage with the bottom side facing up. 2. Align and attach the wing to the fuselage. 3 x 16mm (2) 3. Secure the wing to the fuselage using the 4 screws. Use two screws (M3 x 16mm) for the front and rear holes. -
Page 8: Tail Installation
Assemble the Aircraft Tail Installation 1. Loosely align the horizontal stabilizer assembly (A) on the rear of the fuselage. 2. Correctly connect the rudder and elevator servo connectors (B) to the marked connectors in the fuselage. Orange is the signal wire (S), red is positive (+), brown is negative (-). -
Page 9: Center Of Gravity (Cg)
If the control surfaces do not respond as shown, DO NOT FLY. Refer to the Troubleshooting Guide for more information. If you need more assistance, contact the appropriate Horizon Hobby Product Support department. If the aircraft responds as shown, continue on to the Flight Control section. -
Page 10: Choose A Flying Field
Choose a Flying Field Consult local laws and ordinances before choosing a location to fly your aircraft. In order to have the most success and to protect your property and aircraft, it is The flying site should: very important to select a place to fly that is very open. •... -
Page 11: Factory Settings For The Control Horns And Servo Arms
Factory Settings for the Control Horns and Servo Arms The illustration shows recommended hole settings in the servo arms and Elevator Ailerons Rudder Nose Gear control horns. Post Flight Disconnect the flight battery from the ESC (Required for Safety and 5 Repair or replace all damaged parts. -
Page 12: Power Components Service
Service and Repairs Power Components Service Disassembly 1. Remove the four screws and carefully remove the wing. 2. Remove the two screws (A) from the fan unit mounting tabs. 3. Pull the fan unit (B) out of the fuselage and disconnect the motor leads from the ESC. -
Page 13: As3X ® System Trouble Shooting Guide
AS3X System Trouble Shooting Guide ® Problem Possible Cause Solution If you need to adjust the trim more than 8 clicks, return the trim to Trim is not at neutral neutral and manually adjust the clevis to center the trim Trim change when flight mode is switched Sub-Trim is not at neutral Do not use Sub-Trim. -
Page 14: Replacement Parts
Replacement Parts Optional Parts Part # Description Part # Description Adapter: EC3 Device / EC5 Battery with 1.5" Wire, EFL0951 Fuselage, Painted EFLAEC510 12 AWG EFL0952 Wing, Painted SPMR6775 NX6 6 CH Transmitter Only EFL0953 Horizontal Stabilizer SPMR8200 NX8 8 CH Transmitter Only EFL0954 Decal Sheet SPMX326S30... -
Page 15: Ama National Model Aircraft Safety Code
(iii) modification of or to any part of the Product, (iv) attempted ser- Online Service Request submission process found on our website or call Horizon vice by anyone other than a Horizon Hobby authorized service center, (v) Product to obtain a Return Merchandise Authorization (RMA) number. Pack the Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with securely using a shipping carton. -
Page 16: Contact Information
2011/65/EU, RoHS 3 Directive - Amending 2011/65/EU Annex II 2015/863. EU Importer of Record: Horizon Hobby, GmbH EFL Habu SS EDF PNP (EFL0975): Hereby, Horizon Hobby, LLC declares that Hanskampring 9 the device is in compliance with the following: EU EMC Directive 2014/30/EU. - Page 17 E-flite, Plug-N-Play, Bind-N-Fly, BNF, the BNF logo, DSM, DSM2, DSMX, Spektrum AirWare, EC3, IC3, AS3X, SAFE, the SAFE logo, ModelMatch, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
