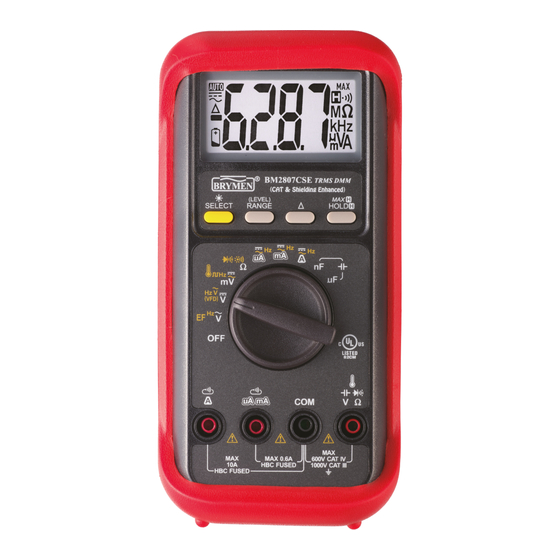

Brymen BM2807CSE Series User Manual

Enhanced practical multimeter series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S
MANUAL
BM2807CSE
BM2805CSE
BM2803CSE
Enhanced
Practical
Multimeter
Series

Advertisement

Table of Contents
loading

Related Manuals for Brymen BM2807CSE Series

Summary of Contents for Brymen BM2807CSE Series

  • Page 1 USER'S MANUAL BM2807CSE BM2805CSE BM2803CSE Enhanced Practical Multimeter Series...

  • Page 2: Brief Introduction

    0) BRIEF INTRODUCTION This 2800 CSE meter series is a safety Category and EMI Shielding Enhanced (CSE) version of our popular 800 practical meter series. Apart from the added up-to-date features and improvements in safety ratings, it is also equipped with EMI shielding on both sides of the circuitry module to improve measurement stability under harsh electromagnetic interferences, especially in the electrical and automotive industries.

  • Page 3: International Symbols

    INTERNATIONAL SYMBOLS Marking of Electrical and Electronic Equipment (EEE). Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler Refer to the explanation in this Manual Possibility of electric shock Earth (Ground) Meter protected throughout by Double Insulation or Reinforced insulation Fuse Direct Current (DC) Alternating Current (AC)

  • Page 4: Product Description

    3) PRODUCT DESCRIPTION This user's manual uses only representative model(s) for illustrations. Please refer to detailed specifications for function availability to a particular model. 1) 3-5/6 digits 6000 counts display LCD 2) Push-buttons for special functions & features 3) Selector to turn the Power On or Off and select a function 4) Input Jack (+) for 10A (20A for 30sec) current function...
  • Page 5 ACV; Line-level Hz (Models 2807 & 2805 only) Inputs are made via the terminals COM/V. Startup defaults to ACV Function. Press the SELECT button momentarily to select the Line-level Hz function. Note: Input sensitivity varies automatically with the function range selected while activating the Hz function.
  • Page 6 ●Non-Contact EF-Detection (NCV): An antenna is located near the top end center of the meter, which detects the ac electric field surrounding energized conductors. It is ideal for tracing live wiring connections, locating wiring breakages, and distinguishing between live and earth connections. ●Probe-Contact EF-Detection (Single-pole): For more precise indications of live...
  • Page 7 wires, such as distinguishing between Live and Ground connections, use one single test probe to test via terminal COM for direct metal contact-probing to achieve the most distinctive indications. DCV; VFD-ACV & Line-level VFD-Hz (Models 2807 & 2805 only) Inputs are made via the terminals COM/V. Startup defaults to DCV Function. Press the SELECT button momentarily to select the subject functions in sequence.
  • Page 8 DCmV; ACmV; Logic-level Hz (Models 2807 & 2805 only); °C/°F (Model 2807 only) Inputs are made via the terminals COM/V. Startup defaults to DCmV Function. Press the SELECT button momentarily to select the subject functions in sequence. Note: 1) In ACmV function:...
  • Page 9 1-1) ACmV startup defaults to the AC 600.0mV range. Auto-ranging is not available. Press the RANGE button momentarily to toggle to the AC 60.00mV range for extended resolution. 1-2) Using the ACmV function in a composite signal beyond the peak levels specified in the specifications will saturate the respective ranges and produce false results.
  • Page 10  Resistance; BeepLit Continuity; & BeepLit Diode Inputs are made via the test lead terminals COM/. Startup defaults to  Resistance. Press the SELECT button momentarily to select the subject functions in sequence. BeepLit Continuity ◎ This function is having improved convenience for checking wiring connections and operation of switches.
  • Page 11 If the reading further drops below 0.100V, the BeepLit indication gives a continuous beep sound together with the display backlight flashing to indicate a shorted diode or a complete wire. It is similar to that of the resistive BeepLit Continuity function but this BeepLit indication, instead, is based on the voltage threshold to indicate continuity.
  • Page 12 DCA; ACA; ACA-Hz (Models 2805 & 2807 only) Inputs are made via the test lead terminals COM/A. Startup defaults to DCA. Press the SELECT button momentarily to select the subject functions in sequence.
  • Page 13 (nF & F) Capacitance (Models 2805 & 2807 only) Inputs are made via the test lead terminals COM/ . Turn the rotary switch to select measurements in nF or in F. There are 3 auto-ranges (20.00, 200.0, and 2000) in each unit position making it 6 ranges altogether in the capacitance function.
  • Page 14 Manual-ranging Override (Voltage, Current, and Ω functions only) Press the RANGE button momentarily to select manual-ranging. The meter will remain in the range it was in; the LCD turns off. Press the button momentarily again to select the next range in sequence. Press and hold the button for 1 second or more to resume auto-ranging.
  • Page 15 In other words, the meter will intelligently reset the iAPO mode when it is under normal measurements. To wake the meter up from iAPO, press the SELECT or HOLD button momentarily, or turn the rotary switch OFF and then back on. Always turn the rotary switch to the OFF position when the meter is not in use.

  • Page 16: Maintenance

    5) MAINTENANCE Note: To avoid electrical shock, disconnect the meter from any circuit, remove the test leads from the input jacks, and turn OFF the meter before opening the case. Do not operate with open case. Trouble Shooting If the instrument fails to operate, check batteries and test leads etc., and replace as necessary.
  • Page 17 proof version). Loosen the 4 screws from the case bottom. Lift the end of the case bottom nearest the input jacks until it unsnaps from the case top. Replace the blown fuse(s) and/or the batteries of the splash-proof version. Put back the case bottom; ensure that all the gaskets are properly seated and the two snaps on the case top (near the LCD side) are engaged.

  • Page 18: General Specifications

    GENERAL SPECIFICATIONS Display: 3-5/6 digits 6,000 counts Update Rate: 5 per second nominal Operating Temperature: -10°C to 50°C Relative Humidity: Maximum relative humidity 80% for temperature up to 31°C decreasing linearly to 50% relative humidity at 50°C Altitude: Operating below 2000m Storage Temperature: -20°C ~ 60°C, <...
  • Page 19 BeepJack audible & visible input warning Electrical Specification Accuracy is given as ± (% of reading digits + number of digits) or otherwise specified @ 23°C ± 5°C AC Voltage & Current accuracies are specified from 1 % to 100 % of range or otherwise specified.
  • Page 20 DC Voltage RANGE Accuracy 60.00mV, 600.0mV, 6.000V 0.3% + 2d 60.00V 0.4% + 2d 600.0V 0.2% + 2d 1000V 0.4% + 2d Input Impedance: 10M, 20pF nominal RANGE Accuracy 0.3% + 3d 600.0, 6.000k 0.5% + 3d 60.00k, 600.0k 0.9% + 2d 6.000M...
  • Page 21 BeepLit Diode Tester RANGE Accuracy Test Current (Typical) Open Circuit Voltage 3.0000V 0.9% + 2d 0.3mA < 3.2 VDC BeepPass Indication (Short-beep): Drop Across 0.850V BeepLit Indication (Continuity) Threshold: < 0.100V Audible Indication: Beep Sound Visible Indication: LCD Backlight DC Current RANGE Accuracy Burden Voltage...
  • Page 22 Temperature (Model 2807 only) RANGE Accuracy 1) 2) -40.0°C ~ 0.0°C 1% + 2°C 0.0°C ~ 99.9°C 1% + 1°C 100°C ~ 400°C -40.0°F ~ 32.0°F 1% + 4°F 32.0°F ~ 99.9°F 1% + 2°F 100°F ~ 752°F °F selection can be left out as factory calibration default for countries that only accept metric units Accuracies assume the meter interior and the ambient have reached the same temperature (isothermal stage) for a correct junction voltage compensation.
  • Page 23 Non-Contact EF-Detection (Models 2807 only) Bar-segment EF-H (Hi Sensitivity) EF-L (Lo Sensitivity) Indication Typical Voltage (Tolerance) 15V (3V ~ 30V) 70V (30V ~ 120V) 30V (10V ~ 60V) 140V (60V ~ 240V) - - - 60V (20V ~ 120V) 280V (120V ~ 480V) - - - - 120V (40V ~ 240V) 560V (240V ~ 960V)

  • Page 24: Limited Warranty

    BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes no risk for damage in transit. BRYMEN will, at its option, repair or replace the defective product free of charge. However, if BRYMEN determines that the failure was caused by misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling, you will be billed for the repair.

This manual is also suitable for:

Bm2805cse seriesBm2803cse series
