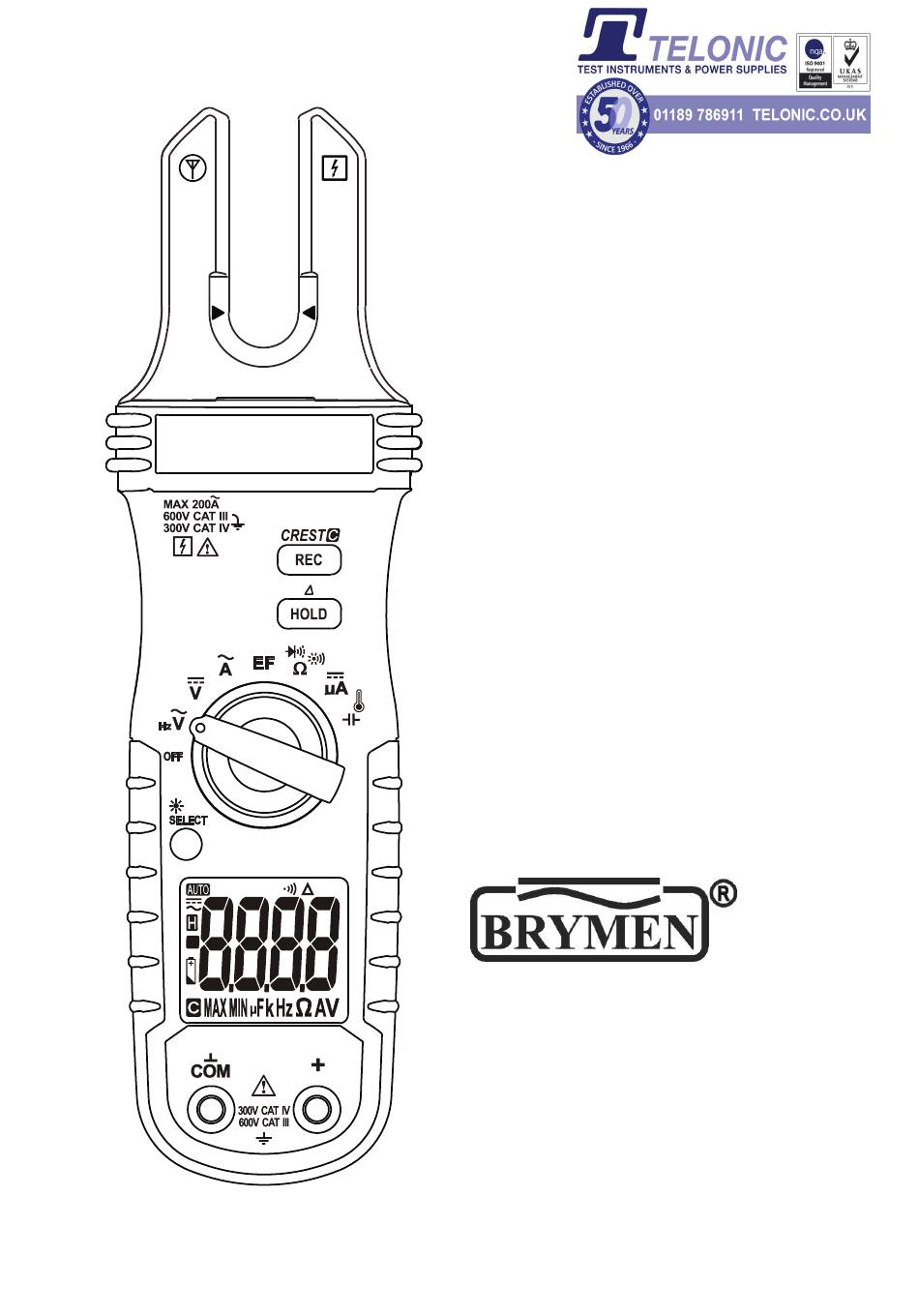

  • Page 1 USER'S MANUAL BM039F BM038F Fork-clamp Multimeter Series...

  • Page 2: Terms In This Manual

    1) SAFETY The meter meets IEC/EN/CSA_C22.2_No./UL standards of 61010-1 Ed. 3.0, 61010-2- 032 Ed. 3.0, 61010-2-033 Ed. 1.0 to Measurement Categories CAT III 600V and CAT IV 300V ac & dc. The accompanied test probe assembly meets IEC/EN/CSA_C22.2_No./UL standards of 61010-031 Ed. 2.0 to the same meter ratings or better. The 61010-031 requires exposed conductive test probe tips to be ≤...

  • Page 3: International Symbols

    INTERNATIONAL SYMBOLS Marking of Electrical and Electronic Equipment (EEE). Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler Caution! Refer to the explanation in this Manual Caution! Possibility of electric shock Earth (Ground) Meter protected throughout by Double Insulation or Reinforced insulation Fuse Direct Current (DC) Alternating Current (AC)

  • Page 4: Operation Warning

    1) Fork-clamp for ACA magnetic field pick up 2) ACA Magnetic field pick-up center indicator, at where best current accuracy is specified 3) Push-buttons for special functions & features. 4) Rotary Selector to turn the power ON/OFF and select a function 5) 3-5/6 digits 6000 counts numeric LCD display 6) Input Jack for all functions EXCEPT...
  • Page 5 ACV (LPF added), & Line-level Hz (LPF added) (Model 039F only) Inputs are made via the test lead terminals COM/+. Defaults at ACV Function. Press the SELECT button momentarily to select Line-level Hz function. Note: ACV and Line-level Hz functions are bundled with LPF low-pass filter, and are capable of dealing with most VFD (Variable Frequency Drives) signals.
  • Page 6 Current Measurements: Application & Removal Of The Fork-clamp Apply the Fork-clamp around conductor(s) of only one single pole of a circuit for load current measurements. Applying around conductors of more than one pole of a circuit may result in differential current (like identifying leakage current) measurements. Align the conductor(s) to the Fork-clamp center indicators as much as possible to get the best measuring accuracy.
  • Page 7  Resistance, BeepLit Continuity, & BeepLit Diode Inputs are made via the test lead terminals COM/+. Defaults at  Resistance. Press the SELECT button momentarily to select the subject functions in sequence. BeepLit Continuity ◎ This function is having improved convenience for checking wiring connections and operation of switches.
  • Page 8 diode. The digital display shows over-range if the diode is good. Any other readings indicate the diode is resistive or shorted (defective). ●Beep-Alert & BeepLit indication: When the display reading drops across 0.850V, the meter alerts a short beep sound to signal a reasonable forward voltage drop of common diodes.
  • Page 10 DCA (Model 039F only) Inputs are made via the test lead terminals COM/+. ●Application notes:  The DC A function is designed especially for HVAC/R flame sensor applications. The  A resolution is useful for identifying the minute current changes in flame detector applications.
  • Page 11 For oil flames (Photocell): ✓ Detector location & wiring ✓ Smoky flame or poorly adjusted air shutter ✓ Faulty Photocell ✓ Temperature over 165 F (74 C) at photocell For gas flames (Flame Rod): ✓ Ignition interference (A flame signal current difference with the ignition both on ...
  • Page 12 Capacitance & Temperature (Model 039F only) Inputs are made via the test lead terminals COM/+. Defaults at Capacitance. Press the SELECT button momentarily to select °C (Celsius) and °F (Fahrenheit) in sequence (°F selection can be left out as factory calibration default for countries that only accept metric units).
  • Page 13 Note Be sure to insert the banana-plug type-K temperature bead-probe Bkp60 with correct polarities. Banana-pins to type-K socket adapter Bkb32 (Optional purchase) can be used to accept other type-K probes using standard miniature plugs. Temperature accuracies assume meter interior has the same temperature (isothermal stage) of the ambient, particularly the plug of the probe being used, for a correct junction voltage compensation.

  • Page 14: Maintenance Warning

    LCD Backlight and Auto-Backlight-Off (ABO) Press the SELECT button for 1 second or more to toggle the LCD backlight. The ABO mode turns the LCD backlight off automatically after 10 minutes of backlight activation to extend battery life. See Power-on Options section for disabling ABO. Intelligent Auto-Power-Off (APO) The APO mode turns the meter off automatically to extend battery life after idling 32 minutes of no specified activities, where applicable, below:...
  • Page 15 Trouble Shooting If the instrument fails to operate, check batteries and test leads etc., and replace as necessary. Double check operating procedure as described in this user’s manual. Refer to the LIMITED WARRANTY section for obtaining calibration, repairing or warranty service. Accuracy and Calibration Accuracy is specified for a period of one year after calibration.
  • Page 16 GENERAL SPECIFICATIONS Display: 3-5/6 digits 6000 counts Polarity: Automatic Update Rate: 5 per second nominal Operating Temperature: 0C to 40C Relative Humidity: Maximum relative humidity 80% for temperature up to 31C decreasing linearly to 50% relative humidity at 40C Pollution degree: 2 Storage Temperature: -20C to 60C, <...
  • Page 17 Fork-clamp opening & Conductor diameter: 12.5mm max Fork-clamp probe width: 12mm approx Accessories: Test lead set, User's manual, Soft carrying pouch, Bkp60 banana-plug thermocouple (Model 039F only) type-K Optional purchase accessories: BKB32 banana-plug to type-K socket plug adaptor (Model 039F only) Special Features: Fork-clamp Current Measurement;...
  • Page 18 RANGE Accuracy 600.0, 6.000k (All models) 1.0% + 5d 60.00k, 600.0k, 6000k (Model 039F only) Open Circuit Voltage: 1.0VDC typical Capacitance (Model 039F only) RANGE Accuracy 2.0% + 4d 200.0F, 2500F Accuracies with film capacitor or better BeepLit™ Diode Tester RANGE Accuracy 3.000V...
  • Page 19 Fork-clamp ACA RANGE Accuracy 50Hz ~ 60Hz 60.00A , 200.0A 2.0% + 5d 45Hz ~ 400Hz 60.00A , 200.0A 3.0% + 5d Induced error from adjacent current-carrying conductor: <0.08A/A 60.00A range measurement available from 0.10A Hz (LPF added) Line-Level Frequency (Model 039F only) Function Sensitivity (Sine RMS)

  • Page 20: Limited Warranty

    BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes no risk for damage in transit. BRYMEN will, at its option, repair or replace the defective product free of charge. However, if BRYMEN determines that the failure was caused by misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling, you will be billed for the repair.
