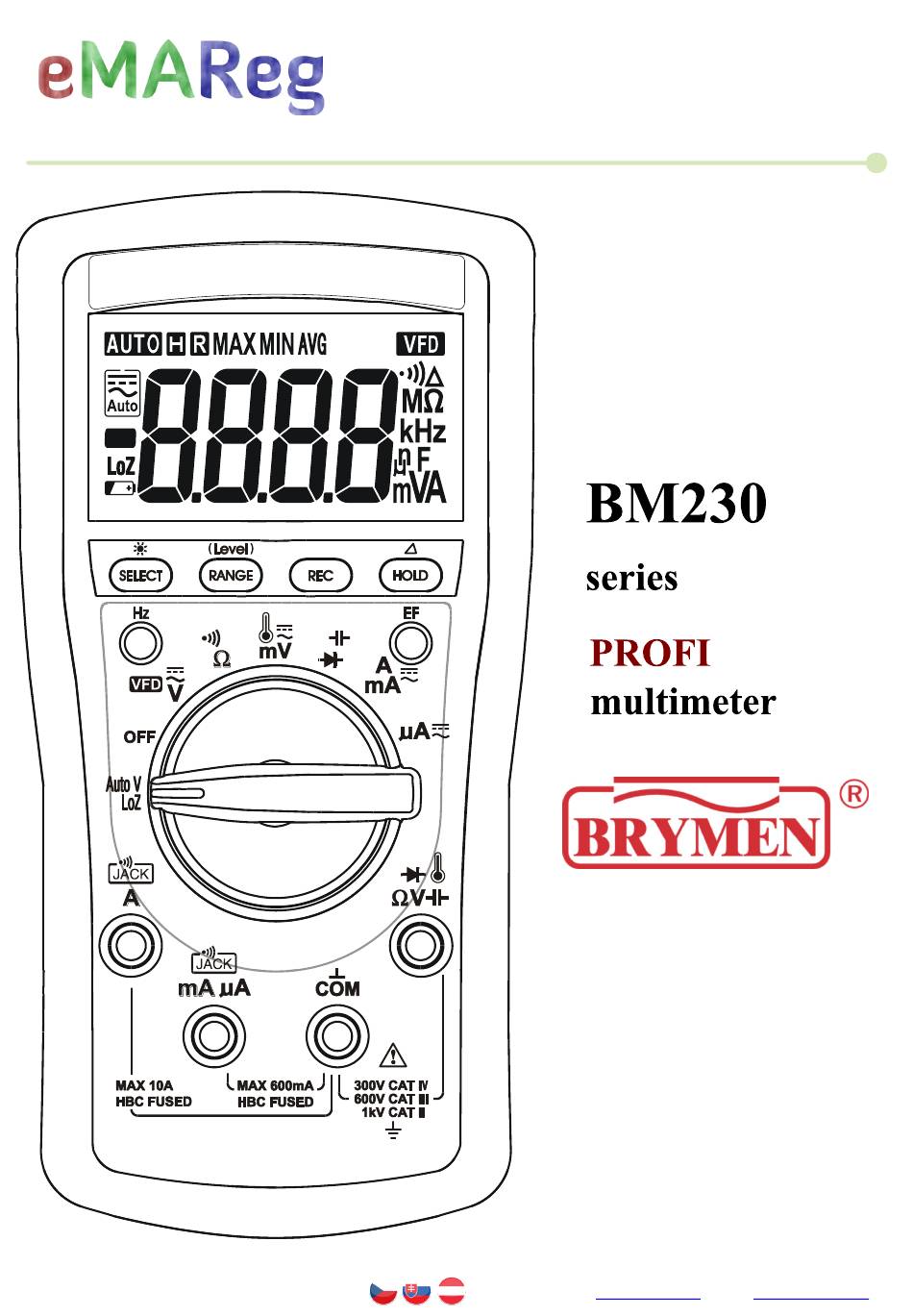

- Page 1 BRYMEN BM235, BM233, BM231 Mìøící a dílenské pøístroje / Multimetry USER'S MANUAL BRIGHT PEOPLE’S CHOICE Eshop: www.emareg.cz Email: shop@emareg.cz...
- Page 2 This manual contains information and warnings that must be followed for operating the meter safely and maintaining the meter in a safe operating condition. If the meter is used in a manner not spe cified by the manufacturer, the protection provided by the meter may be impaired. identifies conditions and actions that could result in serious injury or even death to the user. identifies conditions and actions tha t could cause damage or malfunction in the instrument. To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The meter is intended only for indoor use. Keep your hands/fingers behind the hand/finger barrie rs (of the meter and the test probe assembly, where applicable) that indicate the limits of safe access of the hand held parts during measurements. Inspect lead wires, connectors, and probes for damaged insulation or exposed metal before using the meter. I f any defects are found, replace them immediately. Only use the probe assembly provided with the meter or a UL Listed Probe Assembly to the same meter ratings or better. IEC 61010031 requires exposed conductive test probe tips to be 4mm for CAT III & CAT IV ratings. Refer to the category markings on your probe assemblies as well as on the addon accessories (like detachable Caps or Alligator Clips), if any, for applicable rating changes. Observe proper safety precautions when working with voltages abov e 33 Vrms, 46.7 Vpeak or 70 VDC. These voltage levels pose a potential shock hazard to the user. Before and after hazardous voltage measurements, check the voltage function on a known source such as line voltage to determine proper meter functioning.
- Page 3 Marking of Electrical and Electronic Equipment (EEE). Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler Caution! Refer to the explanation in this Manual Caution! Possibility of electric shock Earth (Ground) Meter protected throughout by Double Insulation or Reinforced insulation Fuse Direct Current (DC) Alternating Current (AC) Threephase Alternating Current is applicable to test and measuring circuits connected at voltage MAINS installation. Examples are measurements on devices installed before the main fuse or circuit breaker in the building installation. is applicable to test and measuring circuits connected to the distribution part of the buildin voltage MAINS installation. Examples are measurements on distribution boards (including secondary meters), circuit breakers, wiring, including cables, bus bars, junction boxes, switches, socket outlets in the fixed installation, and equipment for i ndustrial use and some other equipment such as stationary motors with permanent connection to the fixed installation. is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similarpoints) of the lowvoltage MAINS installation. Examples are measurements on MAINS CIRCUITS of household appliances, portable tools and similar equipment.

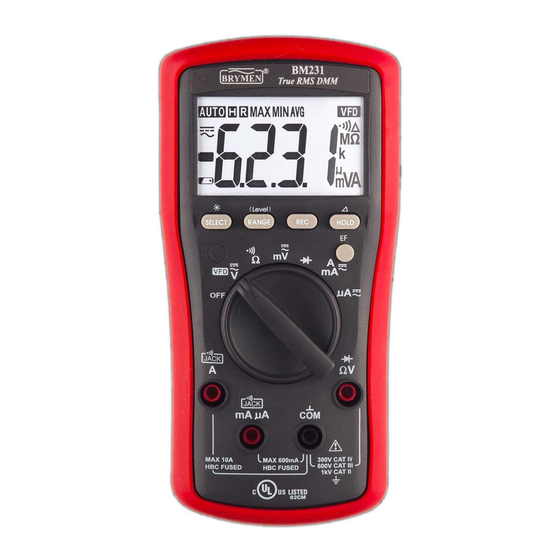

- Page 4 Note: Top of the line model is used as representative for illustration purposes. Please refer to your respective model for function availability. 1) 35/6 digits 6000 counts LCD display 2) Pushbuttons for special functions & features 3) Selector to turn the Power On or Off and Select a function 4) Input Jack for10A (20A for 30sec) current function 5) Input Jack for all functions EXCEPT A, mA & Acurrent functions 6) Common (Ground reference) Input Jack for all functions 7) Input Jack for A and mA current function Eshop: www.emareg.cz Email:...
- Page 5 RMS (Root MeanSquare) is a term used to describe the effective or equivalent DC value of an AC signal. True RMS is the term which identifies a DMM that responds accurately to the effective RMS value regardless of the waveforms such as: square, sawtooth, triangle, pulse trains, spikes, as well as distorted waveforms with the presence of harmonics. Harmonics may cause : 1)Overheated transformers, generators and motors to burn out faster than normal 2)Circuit breakers to trip prematurely 3)Fuses to blow 4)Neutrals to overheat due to the triplen harmonics present on the neutral 5)Bus bars and electrical panels to vibrate Crest Factor is the ratio of the Crest (instantaneous peak) value to the True RMS value, and is commonly used to define the dynamic range of a True RMS DMM. A pure sinusoidal waveform has a Crest Factor of 1.414. A badly distorted sinusoidal waveform normally has a much higher Crest Factor.
- Page 6 automatically selects measurement function of DCV or ACV based , on their input levels via the test leads. The input also provides a low ramp up impedance (LoZ) to drain ghost voltages*. voltage threshold of 1V DC or AC up to the rated 1000V is present, the meter displays the voltage value in appropriate DC or AC, whichever larger in peak magnitude. Note: Ghostvoltages are unwanted stray signals coupled from adjacent hard signals, which confuse common multimeter voltage measurements. The mode provides low (ramp up) input impedance (approx. 2.1 to drain ghost voltages leaving mainly hard signal values on meter readin gs. It is an invaluable feature for precise indication of hard signals, such as distinguishing between hot and open wires (to ground) in electrical installation applications. *Only pushbutton features areavailable in AutoV mode. Eshop: www.emareg.cz Email:...
- Page 7 mode input impedance increases abruptly from initial 2.1 being in such low impedance mode. Peak initial load current, while probing 1000VAC for example, can be up to 673mA (1000V x 1.414 / 2.1 , decreasing a bruptly to approx. 2.4mA (1000V x 1.414 / 580 Do not use mode on circuits that could be damaged by such low input impedance. Instead, use rotary selector or high input impedance voltage modes to minimize loading for such circuits. Press the button momentarily to select the subject functions in sequence. Last selection will be saved as power up default for repeat measurement convenience. Note: and the associated are equipped with digital low pass filter (DSP), and are capable of handling...
- Page 8 Press the pushbutton momentarily to toggle Hz function. It is only available to Voltage and Current related ranges. Input sensitivity varies automatically with the function range selected while activating the Hz function. 6V function range has the highest and the 1000V range has the lowest. When activated under DCV, ACV or VFD ACV voltage function, the trigger voltage range will be displayed right before starting the Hz readings. Press momentarily the button can manually select another trigger voltage range (not available to current ranges) .
- Page 9 Press the button momentarily totoggle the functions. Last selection will be saved as power up default for repeat measurement convenience. function is having improved convenience for checking wiring connections and operation of switches. A continuous beep tone together with flashing display backlight indicate a complete wire. Such audible and visibleindications improve continuity readabilities in noisy working environments. Using resistance and continuity function in a live circuit will produce false results and may damage the instrument. In many cases the suspected component must be disconnected from the circuit to obtain an accurate reading Eshop: www.emareg.cz Email:...
- Page 10 Press the button momentarily totoggle the functions. Last selection will be saved as power up default for repeat measurement convenience. function, the normal forward voltage drop (forward biased) for a good silicon diode is between 0.400V to 0.900V. A reading higher than that indicates a leaky diode (defective). A zero reading i ndicates a shorted diode (defective). An OL indicates an open diode (defective). Reverse the test leads connections (reverse biased) across the diode. The digital display shows OL if the diode is good. Any other readings indicate the diode is resistive orshorted (defective). Discharge capacitors before making any measurement. Large value capacitors should be discharged through an appropriate resistance load. Eshop: www.emareg.cz Email: shop@emareg.cz...
- Page 11 Press the button momentarily to select the subject functions in sequence. Last selection will be saved as power up default for repeat measurement convenience. Note: Be sure to insert the banana plug type K temperature bead probe Bkp60 with correct polarities. You can also use a plug adapter Bkb32 (Optional purchase) with banana pins to typeK socket to adapt other standard typeK mini plug temperature probes. Eshop: www.emareg.cz Email: shop@emareg.cz...
- Page 12 Press button momentarily to toggle between DC and AC Last selection will be saved as power up default for repeat measurement convenience. function is useful for HVAC/R flame sensor applications. The 0.1 A resolution can identify the minute current changes in flame detector applications. Flame signal current check should indicate steady flame signal of at least 2 A for a rectification type, or 1.5 A for an ultraviolet type (8 A for self checking systems). If a flame signal current with inadequate str ength or fluctuation beyond 10%, check the following to avoid the risk of unwanted flame relay dropout : For gas or oil flames (Minipeeper): Low supply voltage Detector location Defective detector wiring Dirty viewing windows Faulty Minipeeper For oil flames (Photocell): Detector location & wiring Eshop: www.emareg.cz Email: shop@emareg.cz...
- Page 13 Smoky flame or poorly adjusted air shutter Faulty Photocell Temperature over 165 F (74 C) at photocell For gas flames (Flame Rod): Ignition interference (A flame signal current difference with the ignition bo th on and off greater than 0.5 A indicates the presence of ignition interference) Insufficient ground (must be at least 4 times the detector area) Flame lifting off burner head (ground), or not continuously in contact with the flame Temperature in excess of 600 F (316 C) at the flame electrode insulator causing short to ground. Eshop: www.emareg.cz Email: shop@emareg.cz...
- Page 14 Press the button momentarily to toggle EF Detection feature. T he meter displays If it is too sensitive for your ap plications, press button momentarily toggles to lower sensitivity . The detected Electric Field strength is indicated as a series of bargraph segments on the display plus variable beep tones. : An antenna is loca ted along the top left end of the meter, which detects electric field surround ing energized live conductors. It is ideal for tracing live wiring connections, locating wiring breakage s and to distinguish between live and earth connections. : For more precise indication of live wires, such as distinguishing between Live and Ground connections, use direct contact testing with one single test probe via the input terminal COM or V . The COM terminal (Black) has the best sensitivity.
- Page 15 Press button momentarily to activate MAX/MIN /AVG recording mode. The LCD AVG turn on. The meter beeps when new MAX (maximum) or MIN (minimum) reading is updated. Press the button momentarily to read the MAX , MIN, AVG readings in sequence. Press the button for 1 second or more to exit MAX/MIN/AVG recording mode.Autoranging remains, and AutoPowerOff is disabled automatically in this mode.
- Page 16 For most autoranging functions (LCD turns on by default), press the button momentarily to select manual ranging override. The meter will remain in the range it was in, the LCD turns off. Press the button momentarily aga in to select the next range. Press and hold the button for 1 se cond or more to resume auto ranging. Note: Manualranging feature is not availableto AutoV, Capacitance & Hz functions. to the meter due to improper connections to the A, mA, or A input jacks whenanother function, especially avoltage function, is selected. The AutoPoweroff (APO) mode turns the meter off automatically to extend battery life after ...
- Page 17 If the instrument fails to operate, check battery, fuses, leads, etc., and replace as 1.5V AAA Sizebattery x 2 for AmA current input: 0.4A/1000V DC/AC, IR 30kA F fuse or better; Dimension: 6 x 32 mm for A current input: 11A/1000V DC/AC, IR 20kA F fuse or better; Dimension: 10 x 38mm Loosen the screw from the access cover of the case bottom. Lift the access cover. Replace the batteries or fuse(s). Refasten the screw.
- Page 18 Certified per IEC/UL/EN610101 Ed. 3.0, IEC/UL/EN610102030 Ed. 1.0, IEC/UL/EN610102033 Ed. 1.0, IEC/UL/EN61010 031 Ed. 1.1 and the corresponding CAN/CSAC22.2 regulations to Measurement Categories: CAT II 1000V, CAT III 600V and CAT IV 300V AC & DC 6.0kV (1.2/50 s surge) Meets EN613261:2013 In an RF field of 3V/m: Temperature function is not specified Ohm function: Total Accuracy = Specified Accuracy + 15 digits Other functions: Total Accuracy = Specified Accuracy Performance above 3V/m is not specified 0.4A/1000V DC/AC rms, IR 30kA, Ffuse or better 11A/1000V DC/AC rms, IR 20kA, Ffuse or better 1100V DC/AC rms 1000V DC/AC rms Below approx.2.5V 1.5V AAA Size battery X 2 3.2mA 10 A...
- Page 19 ACV & ACA accuracies are specified from 1 % to 100 % of range or otherwise specified. Maximum Crest Factor < 2:1 at full scale & < 4:1 at half scale, and with frequency components fall within the meter specified frequency bandwidth for non sinusoidal waveforms 6.000V , 60.00V, 600.0V, 1000V 0.7% + 3d 6.000V , 60.00V, 600.0V, 1000V 2.0% + 3d Input Impedance: 10M , 54pF nominal <5d nonzero residue may appear when backlight is on, which will not affect the specified measuring range and accuracy 60.00mV 1) 2) , 600.0mV 1.0% + 3d 60.00mV 1) 2) , 600.0mV 2.0% + 3d Input Impedance: 10M , 54pFnominal <5d nonzero residue may appear when backlight is on, which will not affectthe specified measuring range and accuracy Signal peak absolute values, includingDC bias, less than 130mV...
- Page 20 600.0V, 1000V 2.0% + 3d Not specified at <1VAC Threshold: > 1VAC nominal Approximate input impedance (//164pF) for reference: At direct input 50Vac (typical) from quiescence: >8M @ < 5.6Vac 22k @ 7Vac 12k @ 8Vac 2.6k @ 50Vac At direct input >>50V (typical) from quiescence: Initial impedance is approximately 2.3k . Impedance increases abruptly within a fraction of a second as display voltage (hard signal) is much higher than 50V (typical). Endup impedances vs display voltages typically are: 12k @100V 100k @300V 240k @600V 580k @1000V 60.00mV, 600.0mV, 6.000V 0.3% + 2d 60.00V 0.4% + 2d 600.0V...
- Page 21 >8M @ < 8Vdc (Protection clamping threshold) 25k @ 9Vdc 13k @ 10Vdc 2.6k @ 50Vdc At direct input >>50V (typical) from quiescence: Initial impedance is approximately 2.3k . Impedance increases abruptly within a fraction of a second as display voltage (hard signal) is much higher than 50V (typical). Endup impedances vs display voltages typically are: 12k @100V 100k @300V 240k @600V 580k @1000V 0.3% + 3d 600.0 , 6.000k 0.5% + 3d 60.00k , 600.0k 0.9% + 2d 6.000M , 60.00M Open Circuit Voltage: 1.6VDC typical Constant Test Current: 0.2 A Typical Constant Test Current: 0.02 A Typical 5%+20d @ >30M...
- Page 22 3.000V 0.9% + 2d Test Current: 0.3mA typical Open Circuit Voltage:< 3.2VDC typical 1.0% + 3d 600.0 A, 6000 A 0.1mV/ A 60.00mA, 600.0mA 1.9mV/mA 0.7% + 3d 6.000A, 10.00A 0.04V/A 10A continuous, >10A to 20A for 30 seconds max with 5 minutes cool down interval 1.5% + 3d 600.0 A, 6000 A 0.1mV/ A 60.00mA, 600.0mA 1.9mV/mA 1.0% + 3d 6.000A , 10.00A 0.04V/A <5d nonzero residue may appear when backlight ison, which will not affectthe...
- Page 23 60mV, 600mV 50mV 10Hz 50kHz 10Hz 50kHz 10Hz 50kHz 600V 10Hz 1kHz 1000V 500V 10Hz 1kHz VFD 600V 10Hz 1kHz VFD 1000V 500V 10Hz 1kHz 10Hz 5kHz 600 A, 6000 A 500 A 60mA, 600mA 50mA 10Hz ...
- Page 24 BRYMEN's opinion, has been misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling. To obtain warranty service, contact yo ur nearest BRYMEN authorized agent or send the product, with proof of purchase and description of the difficulty, postage and insurance prepaid, to BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes no risk for damage in transit. BRYMEN will, at its option, re pair or replace the defective product free of charge. However, if BRYMEN determines that the failure was caused by misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling, you will be billed for the repair. THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED ...
