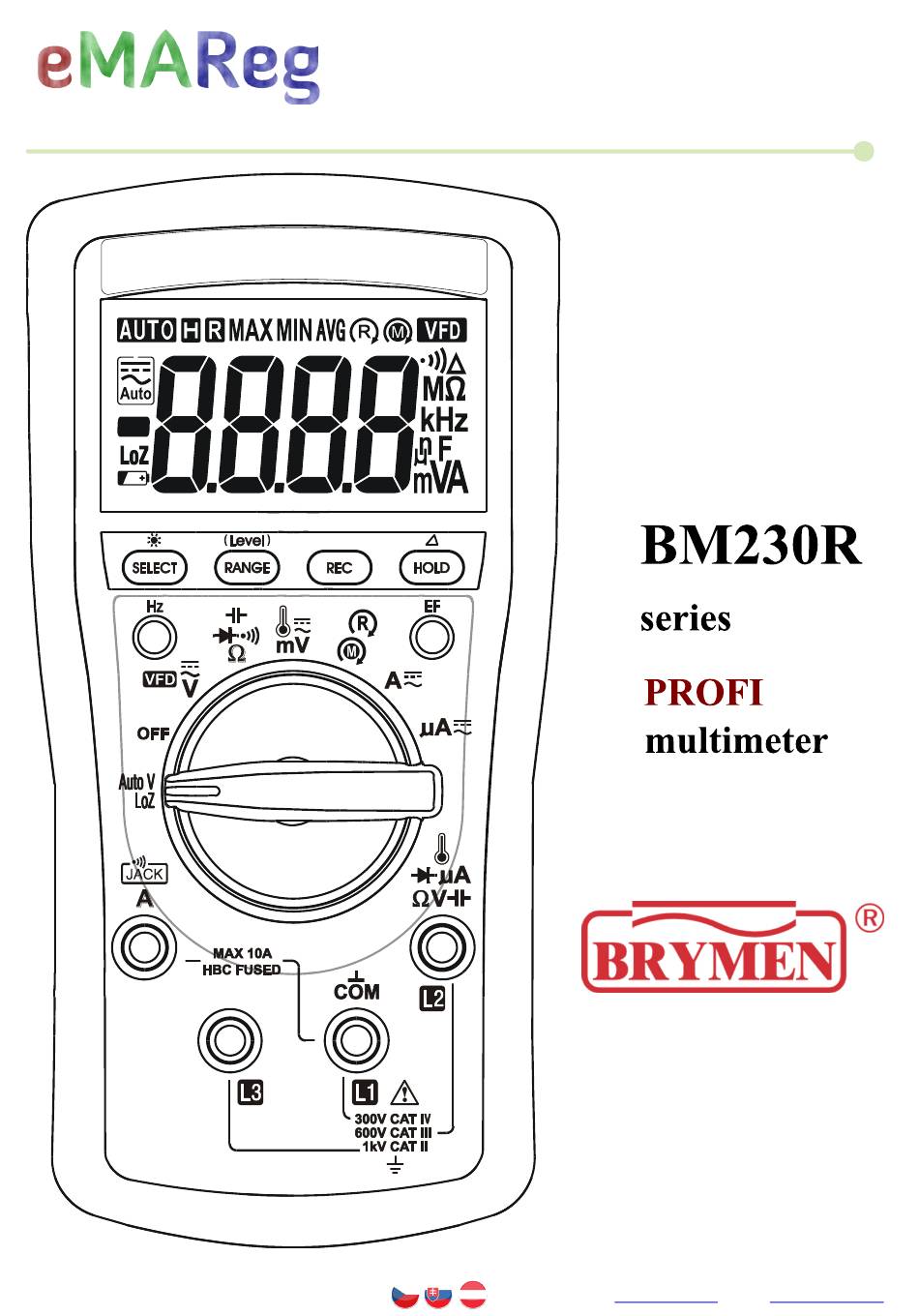

  • Page 1 BRYMEN BM236R, BM237R, BM239R Mìøící a dílenské pøístroje / Multimetry USER'S MANUAL BRIGHT PEOPLE’S CHOICE  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 2 This manual contains information and warnings that must be followed for operating the meter safely and maintaining the meter in a safe operating condition. If the meter is used in a manner not speci fied by the manufacturer, the protection provided by the meter may be impaired. identifies conditions and actions that could result in serious injury or even death to the user. identifies conditions and actions that could cause damage or malfunction in  the instrument. To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The meter is intended only for indoor use. Keep your hands/fingers behind the hand/finger barriers (of the meter and the test probe assembly, where applicable) that indicate the limits of safe access of the hand ­held  parts during measurements. Inspect lead wires, connectors, and probes for damaged insulation or exposed metal before using the meter. If any defects are found, replace them immediately. Only use the probe assembly provided with the meter or a UL Listed Probe Assembly to the same meter ratings or better. IEC 61010­031 requires exposed conductive test probe tips to be 4mm for CAT III & CAT IV ratings. Refer to the category markings on your probe assemblies as well as on the add ­ on accessories (like detachable Caps or Alligator Clips), if any, for applicable rating changes. Observe proper safety precautions when working with voltages above 33 Vrms, 46.7 Vpeak or 70 VDC. These voltage levels pose a potential shock hazard to the user. Before and after hazardous voltage measurements, check the voltage function on a known source such as line voltage to determine proper meter functioning. Disconnect the test leads from the test points before changing functions.  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 3 Marking of Electrical and Electronic Equipment (EEE). Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler Caution! Refer to the explanation in this Manual Caution! Possibility of electric shock Earth (Ground) Meter protected throughout by Double Insulation or Reinforced insulation Fuse Direct Current (DC) Alternating Current (AC) Three­phase Alternating Current is applicable to test and measuring circuits connected at the ­voltage  MAINS installation. Examples are measurements on devices installed before the main fuse or circuit breaker in the building installation. is applicable to test and measuring circuits connected to the s  low­voltage  MAINS  installation.  Examples  are measurements on distribution boards (including secondary meters), circuit ­breakers, wiring, including cables, bus ­bars, junction boxes, switches, socket ­outlets in the fixed installation, and equipment for ind ustrial use and some other equipment such as stationary motors with permanent connection to the fixed installation. is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similar po ints) of the low ­voltage MAINS installation. Examples are measurements on MAINS CIRCUITS of household appliances, portable tools and similar equipment. The  instruments  conform  to  CENELEC  Low­voltage  directive  2014/35/EC, Electromagnetic compatibility directive 2014/30/EU and RoHS directive 2011/65/EU.

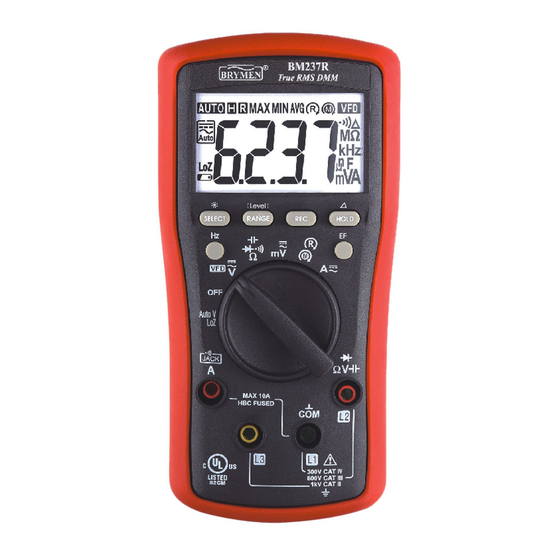

  • Page 4 Note: Top of the line model is used as representative for illustration purposes. Please refer to your respective model for function availability. 1)  3­5/6  digits  6000  counts LCD display 2) Push­buttons  for  special functions & features 3) Selector to turn the Power On or Off and Select a function 4) Input Jack for 10A (20A for 30sec) current function 5) Input Jack for all functions EXCEPT 10A current function 6)  Common  (Ground reference) Input Jack for all functions 7) Additional input Jack for Phase Rotation function only  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 5 RMS (Root­Mean­Square) is a term used to describe the effective or equivalent DC value of an AC signal. True RMS is t he term which identifies a DMM that responds accurately to the effective RMS value regardless of the waveforms such as: square, sawtooth, triangle, pulse trains, spikes, as well as distorted waveforms with the presence of harmonics. Harmonics may cause : 1)Overheated transformers, generators and motors to burn out faster than normal 2)Circuit breakers to trip prematurely 3)Fuses to blow 4)Neutrals to overheat due to the triplen harmonics present on the neutral 5)Bus bars and electrical panels to vibrate Crest Factor is the ratio of the Crest (instantaneous peak) value to the True RMS value, and is commonly used to define the dynamic range of a True RMS DMM. A pure sinusoidal waveform has a Crest Factor of 1.414. A badly distorted sinusoidal waveform normally has a much higher Crest Factor. Before and after hazardous voltage measurements, test the voltage function on a known source such as line voltage to determine proper meter functioning.  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 6 automatically selects measurement function of DCV or ACV, based on their input levels via the test leads. The input also provides a low ramp ­up impedance (LoZ) to drain ghost voltages*. ­ ­ ­ ­ n a signal above the voltage threshold of 1V DC or AC up to the rated 1000V is present, the meter displays the voltage value in appropriate DC or AC, whichever larger in peak magnitude. Note: Ghost­voltages are unwanted stray signal s coupled from adjacent hard signals, which confuse common multimeter voltage measurements. The mode provides low (ramp ­up) input impedance (approx. 2.1 voltages leaving mainly hard signal values on meter readings. It is an invaluable feature for precise indication of hard signals, such as distinguishing between hot and open wires (to ground) in electrical installation applications. *Only push­button features are available in AutoV mode.  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 7 mode input impedance increases abruptly from initial 2.1 on high voltage hard signals sers of being in such low impedance mode. Peak initial load current, while probing 1000VAC for example, can be up  to673mA (1000V x 1.414 / 2.1 , decreasing abruptly to approx.2.4mA (1000V  x  1.414 / 580 Do not use mode on circuits that could be damaged  by  such  low  input  impedance.  Instead,  use  rotary  selector high  input impedance voltage modes to minimize loading for such circuits. Press  the button momentarily to select the subject functions in sequence. Last selection will be saved as power up default for repeat measurement convenience. Note: and the associated are equipped with digital low ­pass filter (DSP), and are capable ...
  • Page 8 Press the push­button momentarily to toggle H z function. It is only available to Voltage and Current related ranges. Input sensitivity varies automatically with the function range selected while activating the Hz function. 6V function range has the highest and the 1000V range has the lowest. When activated under DCV, ACV or VFD ­ACV voltage function, the trigger voltage range will be displayed right before starting the Hz readings. Press momentarily the button can manually  select  another  trigger  voltage  range  (not  available  to  current  ranges).  It  is recommended to first measure the signal voltage (or current) level and activate Hz function in that range to get the most appropriate trigger level. If the Hz reading becomes unstable, select lower sensitivity to avoid electrical noise. If the reading shows zero, select higher sensitivity. Press  the button momentarily to select the subject functions in sequence. Last selection will be saved as power up default for repeat measurement convenience.  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 9  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 10 function  is  having  improved  convenience  for  checking  wiring connections  and  operation  of  switches.  A  continuous  beep  tone  together  with  flashing display  backlight indicate a complete wire. Such audible and visible indications improve continuity readabilities in noisy working environments. function, the normal forward voltage drop (forward biased) for a good silicon diode is between 0.400V to 0.900V. A reading higher than that indicates a leaky diode (defective). A  zero  reading  indicates  a  shorted  diode  (defective).  An  OL  indicates  an  open  diode (defective). Reverse the test leads connections (reverse biased) across the diode. The digital display shows O L if the diode is good. Any other readings indicate the diode is resistive or shorted (defective).
  • Page 11 Press button momentarily to toggle between DC and AC Last selection will be saved as power up default for repeat measurement convenience.  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 12 Press button  momentarily to toggle between DC and AC Last selection will be saved as power up default for repeat measurement convenience. function  is useful for HVAC/R flame sensor applications. The 0.1 A  resolution can identify the minute current changes in flame detector applications. Flame signal current check should indicate steady flame signal of at least 2 A for a rectification type, or 1.5 A  for an ultraviolet type (8 A for self checking systems). If a flame signal current with inadequate strength or fluctuation beyond 10%, check the following to avoid the risk of unwanted flame relay dropout : For gas or oil flames (Minipeeper): Low supply voltage Detector location Defective detector wiring Dirty viewing windows Faulty Minipeeper For oil flames (Photocell): Detector location & wiring Smoky flame or poorly adjusted air shutter Faulty Photocell  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 13 Temperature  over  165 F  (74 C) at photocell For gas flames (Flame Rod): Ignition interference (A flame signal current difference with th e ignition both on and off greater than 0.5 A indicates the presence of ignition interference) Insufficient ground (must be at least 4 times the detector area) Flame lifting off burner head (ground), or not continuously in contact with the flame rod Temperature in excess of 600 F (316 C) at the flame electrode insulator causing short to ground. Press the button momentarily to toggle EF ­Detection feature. T when it is read y. If it is too sensitive for your applications, press button momentarily series of bar­graph segments on the display plus variable beep tones. : An antenna is located along the top ­left end of the meter, which detects electric field surrounding energized live conductors. It is ideal for tracing live wiring connections, locating wiring breakages and to distinguish between live and earth connections. :  For  more  precise  indication  of  live  wires,  such  as distinguishing between Live and Ground connections, use direct contact testing with one single test­probe via the input terminal COM or V.
  • Page 14 Inputs  are  made via  the  test  lead terminals / / .  Phase  Rotation  directions  are indicated as symbolic movements by the LCD segments. Press button  momentarily toggles b etween modes. Last selection will be saved as power up default for repeat measurement convenience. Hi­sensitivity mode, which detects relatively low signal outputs generated from motor spinning,  forchecking phase connections of Motors. Normal­sensitivity mode  for  identifyingphase sequence of Electricity Supply.  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 15 Proper Rotation detection relies on solid signal connection to all three test lead terminals simultaneously. Any single disconnection will lead to detection failure and may  produce  false indication. To verify signal connection and hence proper meter indication, swap any two connects (to the meter) to check for meter indication of reverse movement Connect to the Motor as illust rated. Be sure the electricity supply is removed. From the perspective of looking down the shaft of the motor, speed ­spin it clockwise to generate sufficient signal strength for proper meter detection. If the meter indicates a clockwise movement, the motor leads connected to L1, L2 and L3 of the meter are L1, L2 and L3 (also known as R, S and T) respectively. If the meter indicates a counter ­clockwise  movement, swap any two connects between the meter and motor. Then retest. Connect to the MAINS as illustrated. If the meter indicates a clockwise movement, the phases connected to L1, L2 and L3 of the meter are L1, L2 and L3 (also known as R, S and T)  respectively.  If  the  meter  indicates  a counter­clockwise  movement,  swap  any  two connects between the meter and phases. Then retest. Connect the above mentioned L1, L2 and L3 of a Motor and that of the MAINS respectively should be  able  to get  a  clockwise motor movement.
  • Page 16 The hold feature freezes the dis play for later view. Press the button momentarily to toggle the hold feature. Relative Zero  allows  the  user  to  offset  the  meter  consecutive  measurements  with  the displaying reading as the refere nce value. Practically all displaying readings can be set as relative reference value including MAX/MIN /AVG feature readings. Press the button for one second or moreto  toggleRelative Zero mode. For most auto ­ranging functions (LCD turns on by default), press the button momentarily to select manual ­ranging override. The meter will remain in the range it was in, the  LCD turns off. Press the button momentarily again to select the next range. Press and hold the button for 1 second or more to resume auto­ranging. Note: Manual­ranging feature is not available to AutoV, Capacitance & Hz functions. meter due to improper connections to the A, mA, or A input jacks when another function, especially a voltage function, is selected.
  • Page 17 Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. If the meter is not to be used for periods of longer than 60 days, remove  the  battery and store it separately If the instrument fails to operate, check battery, fuse, leads, etc., and replace as necessary. 1.5V AAA Size battery x 2 for A current input: 11A/1000V DC/AC, IR 20kA F fuse or better; Dimension: 10 x 38mm Loosen the screw from the access cover of the case bottom. Lift the access cover. Replace the batteries or fuse. Re­fasten the screw. 3­5/6 digits 6,000 counts 5 per second nominal ­10 C  to45 Maximum relative humidity 80% for temperature up to 31 C decreasing linearly to 50% relative humidity at 45  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 18 Operating below 2000m ­20 C ~ 60 C, < 80% R.H. (with battery removed) Nominal 0.15 x (specified accuracy)/ C @ (­10 C ~ 18 C or 28 ~ 45 C), or otherwise specified True RMS sensing IP40 Certified  per  IEC/UL/EN61010­1  Ed.  3.0,  IEC/UL/EN61010­2­030  Ed.  1.0, IEC/UL/EN61010­2­033  Ed.  1.0,  IEC/UL/EN61010­031  Ed.  1.1  and  the  corresponding CAN/CSA­C22.2 regulations  to  MeasurementCategories: CAT II 1000V, CAT III 600V and CAT IV 300V AC & DC 6.0kV (1.2/50 s surge) Meets EN61326­1:2013 In an RF field of 3V/m: Temperature function is not specified Ohm function: Total Accuracy = Specified Accuracy + 15 digits Other functions: Total Accuracy = Specified Accuracy...
  • Page 19 Accuracy is given as (% of reading digits + number of digits) or otherwise specified @ 23 ACV & ACA accuracies are specified from 1 % to 100 % of range or otherwise specified. Maximum  Crest  Factor  <2:1  at  full  scale  &  <4:1  at  half  scale,  and  with  frequency components  fall  within  the  meter  specified  frequency  bandwidth  for  non­sinusoidal waveforms 6.000V , 60.00V, 600.0V, 1000V 0.7% + 3d 6.000V , 60.00V, 600.0V, 1000V 2.0% + 3d Input Impedance: 10M , 54pF nominal <5d non­zero residue may appear when backlight is on, which will not affectthe specified measuring range and accuracy 1) 2) 60.00mV , 600.0mV 1.0% + 3d...
  • Page 20 600.0V, 1000V 1.0%+3d 600.0V, 1000V 10%+3d Not specified for fundamental frequency > 400Hz Accuracy linearly decreases from1%  +3d @100Hz  to10%  +3d @400Hz 600.0V, 1000V 2.0% + 3d Not  specifiedat <1VAC Threshold: > 1VAC nominal Approximate input impedance (//164pF) for reference: At  direct  input 50Vac (typical) from quiescence: >8M @ < 5.6Vac 22k @ 7Vac 12k @ 8Vac 2.6k @ 50Vac At direct input >>50V (typical) from quiescence: Initial impedance is approximately 2.3k . Impedance increases abruptly within a fraction of a second as display voltage (hard signal) is much higher than 50V (typical). End­up impedances vs display voltages typically are: 12k @100V 100k @300V 240k @600V...
  • Page 21 25k @ 9Vdc 13k @ 10Vdc 2.6k @ 50Vdc At direct input >>50V (typical) from quiescence: Initial impedance is approximately 2.3k . Impedance increases abruptly within a fraction of a second as display voltage (hard signal) is much higher than 50V (typical). End­up impedances vs display voltages typically are: 12k @100V 100k @300V 240k @600V 580k @1000V 0.3% + 3d 600.0 , 6.000k 0.5% + 3d 60.00k , 600.0k 0.9% + 3d 6.000M , 60.00M Open Circuit Voltage: 1.6VDC typical Constant Test Current: 0.2 A Typical Constant Test Current: 0.02 A Typical 5%+20d @ >30M Continuity Threshold: Between 30 and 480 Continuity ON Response Time: <15ms Audible Indication: Beep sound Visible Indication: LCD Backlight...
  • Page 22 3.000V 0.9% + 2d Test Current: 0.3mA typical Open Circuit Voltage: < 3.2VDC typical 0.7% + 3d 200.0 A, 2000 A 2.5mV/ A 1.0% + 3d 200.0 A, 2000 A 2.5mV/ A Combination PTC protective impedance is being used 6.000A, 10.00A 0.7% + 3d 0.04V/A 6.000A , 10.00A 1.0% + 3d 0.04V/A 10A continuous, >10A to 20A for 30 seconds max with 5 minutes cool down interval <5d non­zero residue may appear when backlight is on, which will not affectthe specified measuring range and accuracy ­40.0 C ~ 99.9 1% + 1 C ~ 400 ­40.0 F  ~  99.9 1% + 2 F  ~  752 Accuracies assume meter interior and the ambient have reached the same temperature (isothermal stage) for a correct junction voltage compensation. Allow enoughsettling ...
  • Page 23 60mV, 600mV 50mV 10Hz ­ 50kHz 10Hz ­ 50kHz 10Hz ­ 50kHz 600V 10Hz ­ 1kHz 1000V 500V 10Hz ­ 1kHz VFD 600V 10Hz ­ 1kHz VFD 1000V 500V 10Hz ­ 1kHz 10Hz ­ 5kHz 200 A , 2000 A 500 A 6A, 10A 50Hz ­...
  • Page 24 BRYMEN's opinion, has been misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling. To obtain warranty service, contact your nea rest BRYMEN authorized agent or send the product, with proof of purchase and description of the difficulty, postage and insurance prepaid,  to  BRYMEN  TECHNOLOGY  CORPORATION.  BRYMEN  assumes  no  risk  for damage in transit.  BRYMEN will, at its option, repair o r replace the defective product free of charge.  However, if BRYMEN determines that the failure was caused by misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling, you will be billed for the repair. THIS  WARRANTY  IS  EXCLUSIVE  AND  IS  IN  LIEU  OF  ALL  OTHER  WARRANTIES, EXPRESSED ...
