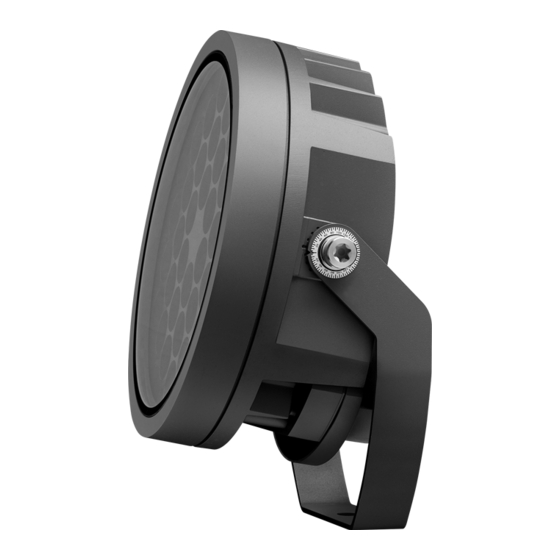

- Page 1 WE-EF LIGHTING Installation and Maintenance Instructions for Projectors FLC200 LED Series FLC200-CC LED Series FLC200-TW LED Series FLC200-CC Wireless DMX Series INSTALLER HOTLINE +61 458 933 399 7am – 7pm AEST...
- Page 2 This luminaire contains electrostatic sensitive devices. Do not handle the LED PCB or LED connection leads without suitable ESD prevention methods in place. If in doubt contact WE-EF LIGHTING or an authorised Sales partner. Warranty can be void if the correct handling procedures are not observed.
-
Page 3: Light Source
Projectors FLC230 ø 190 ø 190 ø 260 ø 260 ø 14 ø 18 ø 14 ø 18 FLC240 FLC260 ø 340 ø 340 ø 385 ø 385 ø 14 ø 14 ø 18 ø 18 Light source Windage area FLC220 . -
Page 4: Installation Procedure
5) Feed mains supply cable D through cable gland E. An Installation additional M20 gland is supplied to allow loop The product must be installed and maintained by a suitably through of supply cabling or alternative DMX cabling qualified professional in compliance with latest building/ arrangements. - Page 5 Torque Screw Torque TX20 max. 2,0 Nm TX25 max. 4,0 Nm TX27 max. 6,0 Nm TX30 max. 15,0 Nm TX70 max. 100,0 Nm 45° 30° 15° Notice: The wireless DMX version has the Wifi receiver attached to the back case C. If required, the cover can be completely removed by disconnecting the white in-line connector plug.
- Page 6 Wiring Diagram WE-EF Advanced, CC Wireless DMX and non dimmable luminaires Class I Phase to L1, Neutral to N and Earthing to Class II Phase to L1, Neutral to N WE-EF Basic Class I Phase to L1, Control Phase to L2, Neutral to N and Earthing to Class II ...
- Page 8 +61 458 933 399 info.uk@we-ef.com 7am – 7pm AEST Liability WE-EF LIGHTING accepts no liability when damage is caused by improper use or installation. FLC200 LED / FLC200-CC LED_010518 / 006-1348 Technical specifications are subject to change. If any luminaire and/or accessory is subsequently modified, the ©...
