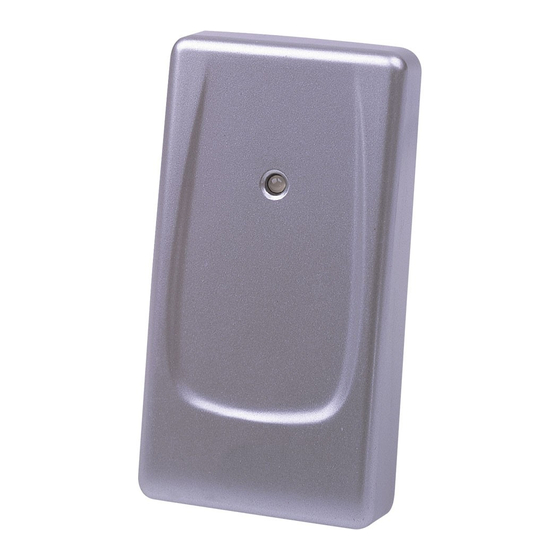

Soyal AR-721U Hardware Operation Manual

Soyal AR721U661U721K hardware operation guide
Revision: V1
Date released: 1 Nov 2006
1. Main Features
Easily integrated with soyal or other access control systems.
Programmable various outputs formats Wiegand , magstripe or serial.
Built-in watchdog to prevent the system from halting
A bi-color LED indicator and a beep sound.
Item AR-721U
RF Frequency 125KHz
Power 9-16VDC
Requirement
Power 50mA
Consumption
Communication WG 26 / 34, ABA-II, ASYNC, OMRON
Interface
Baud Rate
Environment
Proximity 3-8cm
Reading Range
Indicator A bi-color LED and a
beeper
Keypad -
Waterproof Option
Color Dark Pearl Gray / Silver
Dimensions 81(H)*43(W)*18(D)
(mm)
Weight (g) 40±5
Housing
Material
SOYAL
Access Control System
UM_Soyal721KP721U661UV1
AR-721K AR-661U
125KHz / 13.56MHz 125KHz
12-18VDC
125KHz 80mA 350 mA
13.56MHz 0.72W
9600 bps (N, 8, 1)
-20° C to +75° C
10-18cm (125K) / 33-60cm
3-8cm (13.56M)
A bi-color LED and Three LED and a
a beeper beeper
Yes -
- Yes
Dark Pearl Gray
111(H)*77(W)*26(D) 228(H)*228(W)*38(D)
90±10 1,000±50
ABS
2
Table of Contents
1. Main Feature

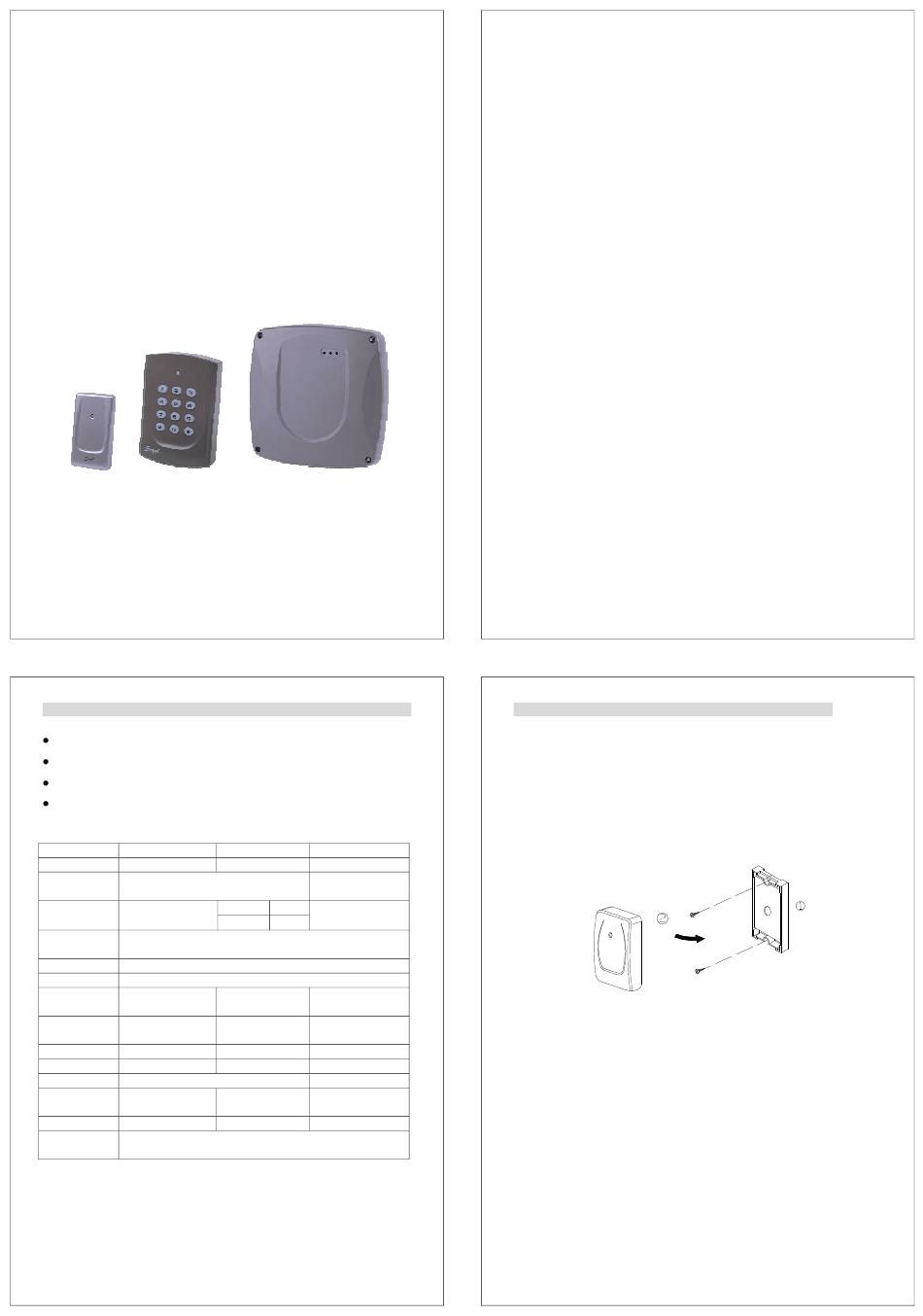

2. AR-721U Installation
2.1 Steps
2.2 Installation Notice
2.3 Terminal Cable
2.4 PCB board
2.4.1 No waterproof
2.4.2 Waterproof
2.5 Installation diagram
2.5.1 AR-721U & AR-721H
2.5.2 AR-721U & AR-727H
2.5.3 AR-721U & AR-821EF
2.5.4 AR-721U & AR-829E
3. AR-721K Installation
3.1 Steps
3.2 Installation Notice
3.3 Terminal Cable
3.4 PCB board
3.5 Installation diagram
3.5.1 AR-721K & AR-721H
3.5.2 AR-721K & AR-727H
3.5.3 AR-721K & AR-821EF
3.5.4 AR-721K & AR-829E
4. AR-661U Installation
4.1 Installation Notice
4.2 Terminal Cable
4.3 Installation diagram
4.3.1 AR-661U & AR-721H
4.3.2 AR-661U & AR-727H
4.3.3 AR-661U & AR-821EF
4.3.4 AR-661U & AR-829E
4.4 The standalone controller do anti-pass-back with 2 pcs of AR-661U ---------21
4.5 Testing table of AR-661U Reading Range depends on tags
5 Troubleshooting
6 Return of Products / Warranty
2. AR-721U Installation
2.1 Steps
1. Use the screwdriver to screw the mounting plate on the wall.
2. Pull cable ends through the access hole in the mounting plate. AR-721U must be
connected before power is applied to the single door controller.
3. Attach the AR-721U to the mounting plate.
4. Apply power. The red LED will flash once and the beeper will sound.
2.2 Installation Notice
1. AR-721U is narrow enough to mount to most mullions and door frames.
2. Single door controller locate inside the secure area for use as an exit controller, the
auxiliary reader locate exterior wall for use as an entrance reader, but not directly
behind single door controller. For best reading distance, offset the single door
controller and auxiliary reader by about 50 cm above and 12 m below (suggestion
value).
3. Normally, AR-721U will read a Card / Key Tag at up to 8 cm. However, when
AR-721U reader is mounted directly on a metal surface, the reading distance
decreases slightly. To reduce this effect, install wood or plastic between the
mounting surface and mounting plate, this will restore most of the reading distance.
