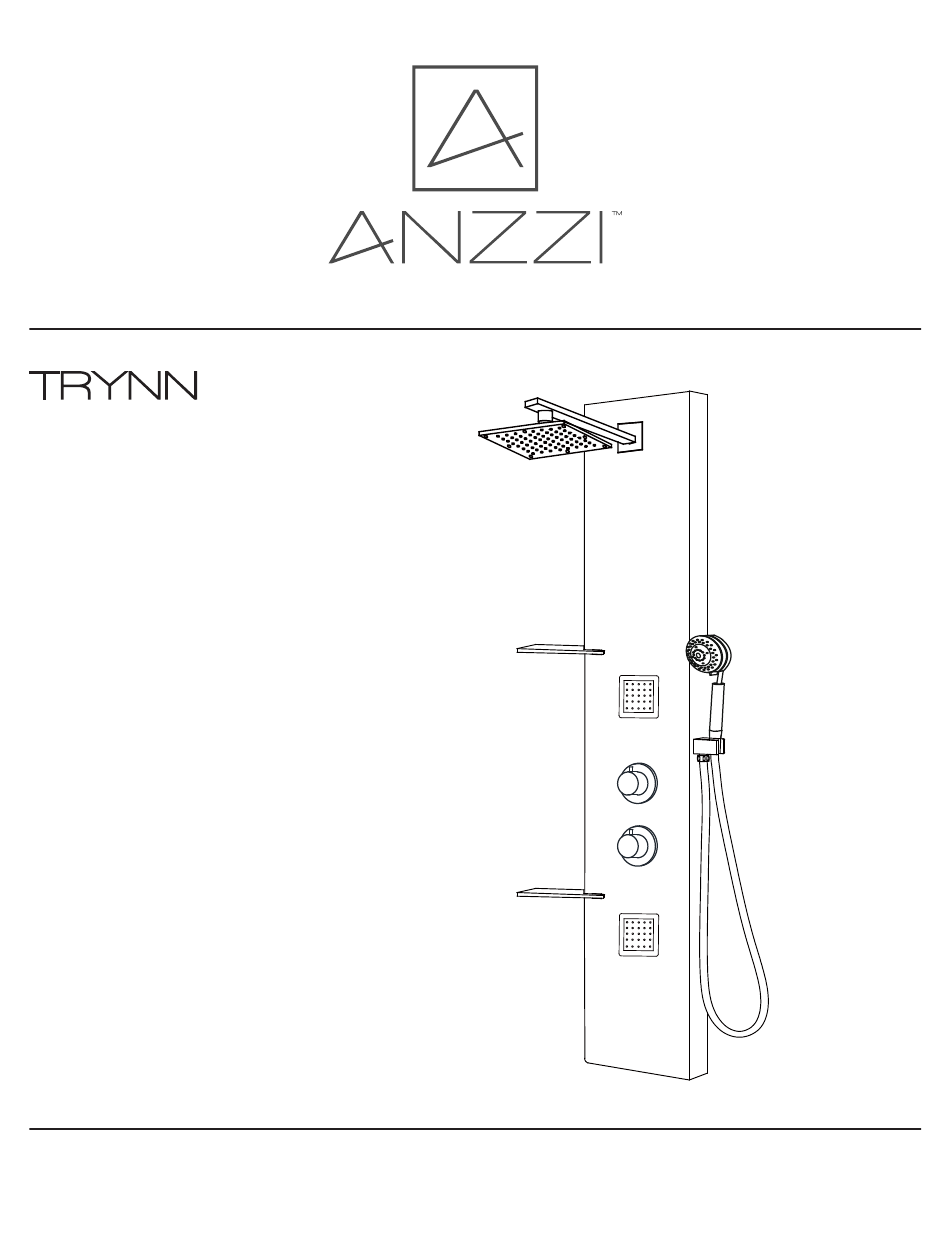

- Page 1 TRYNN INSTALL GUIDE Model# SP-AZ025 PERFECTION IS OUR TRADITION™ v2.0516...
-
Page 2: Table Of Contents
Final Page YOUR REVIEWS MATTER! The ANZZI™ Family thanks you for your purchase and hopes you enjoy your very own ANZZI product for years to come! In the meantime let us know about your experience? We would love to hear your thoughts from the packaging to the quality and function of the product. -
Page 3: Parts List
PARTS LIST Component no. Component Material head shower arm bar brass flange brass body 1. Shower Head wash 1 rubber nut 1 brass 2. Body Jets one way joint clip 3. Diverter shelf Acrylic glass clamp brass 4. Mixer screw screw 2 5. -
Page 4: Before You Start
Adjustable Wrench Teflon tape Allen key ATTENTION: Please read all instructions thoroughly including all warnings, attentions and notes before beginning installation. For any questions or concerns contact our dedicated technical support team at 1-844-44-ANZZI. PERFECTION IS OUR TRADITION™ pg. 2... -
Page 5: Spec Drawing
SPEC DRAWING 20.37" TRYNN SP-AZ025 Material: Finish: White Handles: 2 Jets: Shower: 6.89”x6.89” Sprayer: 60” reach Weight: 13.23 lbs Height: 51.18” Supply: 1/2” connections Flow: 1.8 gpm 8.66" Features Heavy Rain™ Fixed Showerhead Acu-Stream™ high pressure body jets Euro-Grip™ hand held sprayer Rhino Alloy™... -
Page 6: Installation
INSTALLATION (SETUP) Figure A IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position. Step A Drill the two holes for the top bracket 1” apart at the desired height. Step A.2 Drill the two holes for the bottom bracket 1”... - Page 7 INSTALLATION (SETUP) Figure C Figure B Step B Insert the wall anchors into the pre-drilled holes as shown in Figure B. Step C Place the shower panel brackets aligned with the drilled holes and using a Philips screw- driver ighten the screws to secure the brackets. PERFECTION IS OUR TRADITION™...
- Page 8 INSTALLATION (HANDSHOWER) Figure 1 Step 1A Insert the shower wand holder through the pre-drilled hole on the shower panel. Step 1B Install the water supply hose for the shower wand onto the holder, as shown. Step 1C Make sure all O-rings are inserted to prevent leakage. Step 1D Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection.
- Page 9 INSTALLATION (HANDSHOWER) Figure 2 1 Setting 3 Setting Hand Hand Shower Shower Step 2A Finally, install the shower wand to the hose, as shown. PERFECTION IS OUR TRADITION™ pg. 7...
- Page 10 INSTALLATION(SHELF) Figure 3 Step 3 Place clamp onto the panel side, use the screw to tighten them, insert the shelf to the clamp, tighten the screw to fix it PERFECTION IS OUR TRADITION™ pg. 8...
- Page 11 INSTALLATION (SHOWER HEAD) Figure 4 Step 4A Install the shower arm to the shower panel, using the rubber washer and nut on the opposite side to tighten. Step 4B Makes sure the shower arm is sitting correctly before installed the shower head. Step 4C Screw the shower head onto the shower arm.
- Page 12 INSTALLATION (WALL MOUNTING) Figure 5 Cold Screw the cold and hot water from the shower panel to the supply lines in the wall. Step 5A Carefully hang the shower panel on the secured mounting brackets as shown in Figure 4. Step 5B PERFECTION IS OUR TRADITION™...
-
Page 13: Care & Maintenance
CARE AND MAINTENANCE ANZZI™ products are crafted with superior quality standards and workmanship and are engineered to stand the test of time. However, that does not mean the product can be neglected and will need some care and cleaning. It is recommended to use regular soap and hot water along with a non-abrasive cloth or sponge to regularly clean the product. -
Page 14: Warranty
