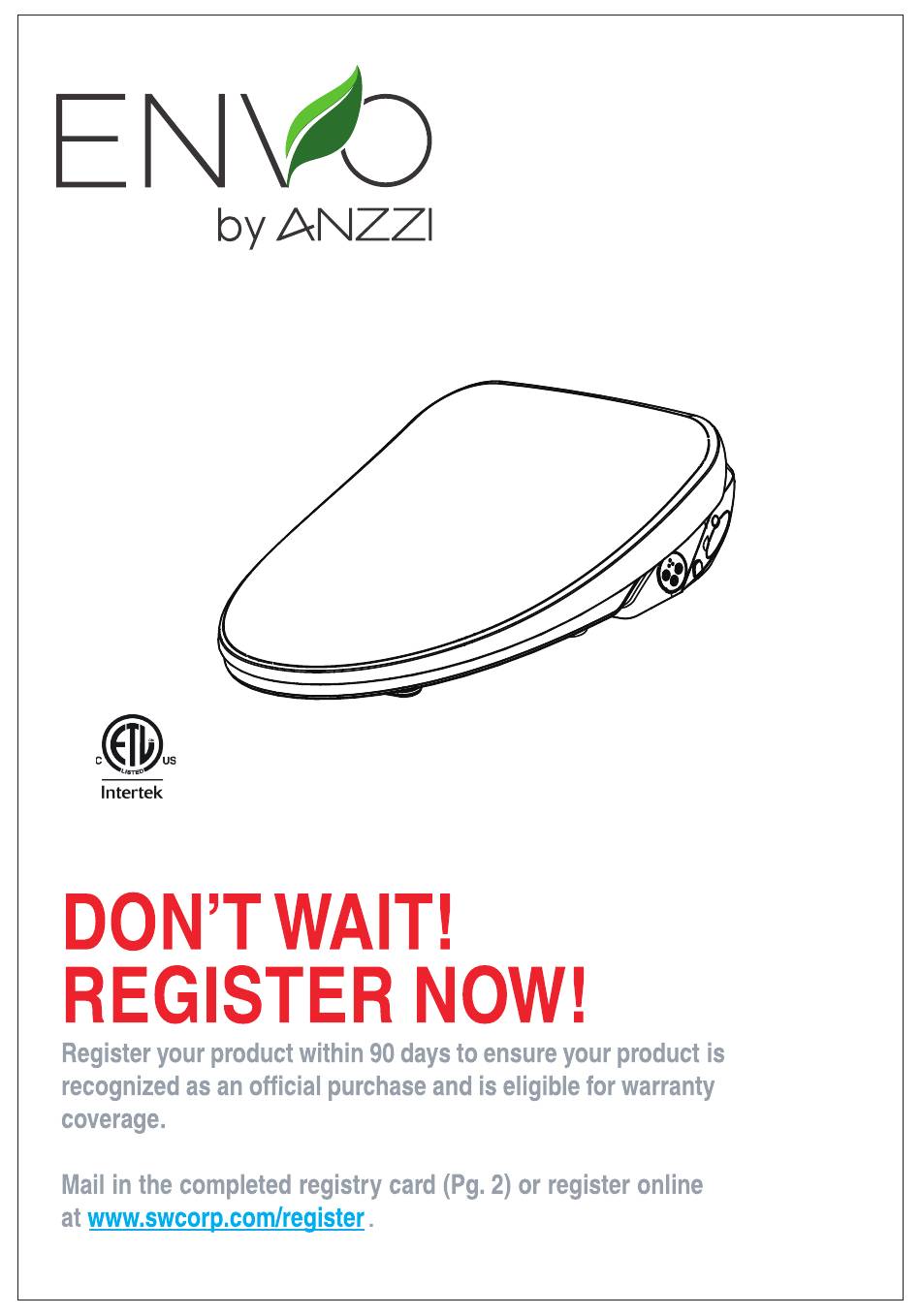

- Page 1 ITEM: TL-AZEB101B TL-AZEB103B TL-AZEB105B ANZZI ELECTRIC BIDET SEAT INSTALL & OPERATION MANUAL V1.0...
- Page 2 byANZZI PRODUCT REGISTRATION* IMPORTANT: YOUR WARRANTY WILL NOT BE RECOGNIZED UNLESS THIS CARD IS FULIY COMPLETED AND RETURNED OR ONLINE REGISTRATION IS COMPLETED. To ensure that your warranty is registered and confirmed please do one of the following: Register online at www.swcorp.com/register.
- Page 3 PRODUCT SIZE CHART 5.1"(130mm) 15.8"(401mm) 19.9"(506mm) Thank you for choosing ENVO Electric Bidet Seat. Please read and understand this entire manual before attempting to install, assemble or operate this product. SAVE THESE INSTRUCTIONS...
-
Page 4: Table Of Contents
TABLE OF CONTENTS S AFET Y P REC A UTIONS- --- ----- --- - PG.I PG. 3 COMPONE NTS E LEC TRI C B I DET S EAT INSTALLTIO N · · · · · · ····· · · · · · · ····· · · · · PG. 4 GUILDINGS FO R FI RST U S E PG.8 O PERATION INSTRUCTION OF SIDE KEY... -
Page 5: Safety Precautions
•Do not bend or squeeze the water inlet hose qualified electricians. hard, Otherwise it may lead to water leakage •Any replacement shall be provided by ANZZI. The use of a third-party replacement will •When power failure occurs during cleaning invalidate the warranty. - Page 6 NOTE...
-
Page 7: Components
COMPONENTS •--fl+- Safety instructions �Si d e� ----ii'+--- Toilet lid �sassemble button Powerplug � �� � Water Supp l y Hose Adapters Met a l snap Gaskets Remote control Mounting bracket Rubber fixing sleeve & Screws TOOLS AND MATERIALS Wrench Screwdriver PG.3... -
Page 8: Electric Bidet Seat Install Tion
ELECTRIC BIDET SEAT INSTALL TION STEP 1 INSTALL THE MOUNTING PLATE Disassemble the screws from the sleeves Press and hold the disassembly button, and insert the rubber fixing sleeves into pull down and take out the mounting plate. the holes of the toilet's bowl. screws -----1 ►... - Page 9 covered...
- Page 10 STEP 2 I INSTALL THE WATER SUPPLY HOSE Slide the Electric Bidet Seat toward the mounting plate until you hear a "click" sound. G)Close the water supply stop. Disconnect the water supply hose of the toilet and the supply stop; @For 3/8"...
- Page 11 Select a smooth and even surface to ensure the control holder remains seated. Tear off the adhesive tape and press against wall. NOTE: Clean the surface prior to affixing the control holder. Apply pressure firmly and evenly. Allow 15 minutes for adhesive to cure.
- Page 12 Open water supply valve and check for any leaks. Make sure the plug is plugged into the socket and the light is on. Press the “Test” button: The plug light should be off. Press the “RESET” button: The light of the plug should be on.
- Page 13 This key will stop any currently running function. Press and hold for 3 seconds (when not sat on) to turn OFF the power. Press and hold for 3 seconds again to turn the power back ON. Press and hold for 3 seconds (while sitting) to start the dryer function. The air temperature can be preset by the Air Temp key on the remote control.
- Page 14 Press this key to stop any function currently active. Press and hold for 5 seconds (while NOT sitting) to turn power ON/OFF. While sitting, press this key to start the Rear Wash. The runtime is 4 minutes. When Rear Wash is active: Press this key again to turn reciprocating cleaning ON/OFF.
- Page 15 While sitting, press this key to start the “Dryer” function. The runtime is 4 minutes. When the dryer function is ON press the “Air Temp” key to adjust the air temperature. While sitting, press and hold for 2 seconds to start the “Child Wash”...
- Page 16 Press this key to turn Energy Saving mode on. The indicator light on the side panel will turn ON. When ON, the Energy Saving mode will automatically turn OFF when the user sits on the seat. It will automatically turn ON 10 minutes after the user leaves the seat. Press and hold for 3 seconds to turn ON/OFF the Night Light.
- Page 17 CLEANING&MAINTENANCE Precautions before maintenance: G) Make sure that the power is turned off. @ Do not allow water to enter the interior of the product during maintenance. ® Make sure that the detergent is scrubbed to avoid sticking between the body of the product and the gap of the toilet.
- Page 18 Reinstall the filter screen in the order of which it was removed. Note: After turning on the supply stop, check for leakage of all connections. &_ WARNING • ANZZI is not responsible for any damage caused by the use of detergents containing chlorine (calcium hypochlorite). • Always unplug before cleaning. &_ ATTENTION •...
-
Page 19: Long-Time Perservation
LONG-TIME PERSERVATION G)Drain the water of the tank. � @'I @Disconnect the power. � I ® Remove the batteries from remote control. � -� i / __ 1_1 1 PRODUCT PARAMETERS Product type Instant heating TL-AZEBlOlB TL-AZEB103B Product model TL-AZEBlOSB Product Name Electric Bidet Seat Rated power... -
Page 20: Function List
FUNCTION LIST TL-AZEBlOlB TL-AZEB103B TL-AZEBIOSB Deodorization Photocatalyst Cold and hot SPA Child Spray ( - 1 Bowl Pre-Rinsing Massaging \�j Oscillating Spary Adjustable Position Heated Water \_ _, ( - 1 "' "\ Photosensitive night light 1 · \ 1- 1 Nieht lieht /�... - Page 21 Failure to Work Make sure the outlet is powered. Make sure the plug is connected properly and making full contact. Rinsing and Washing functions not producing water Make sure the water supply isn’t cut off. Make sure the water supply valve is open. Make sure there are no kinks or bends in the supply hose.
- Page 22 Water Shuts-Off While Cleaning It’s normal for the cleaning functions to turn off after 4 minutes. Water is not Hot Make sure the Water Temperature is set to low or normal. Air Dryer is not Hot Make sure the Air Temperature is set to low or normal. Air Dryer Shuts Off It’s normal for the air dryer to turn off after 4 minutes.
- Page 24 byANZZI 7.06.07.448-01...
