  • Page 1 AQ-101S Arc flash protection device Instruction manual...

  • Page 3: Table Of Contents

    14.3 Auxiliary voltage......................... 39 14.4 Binary inputs........................39 14.5 Trip relays .......................... 40 14.6 Binary output(s) ......................... 40 14.7 System failure relay......................40 14.8 Point sensors ........................40 14.9 Disturbance tests....................... 41 14.10 Voltage tests........................42 © Arcteq Relays Ltd IM00007...
  • Page 4 14.13 Casing..........................42 15 Or 15 Ordering inf dering informa ormation tion ..............................................43 16 Contact and r 16 Contact and re e f f er erence inf ence informa ormation tion......................................44 © Arcteq Relays Ltd IM00007...
  • Page 5 Nothing contained in this document shall increase the liability or extend the warranty obligations of the manufacturer Arcteq Relays Ltd. The manufacturer expressly disclaims any and all liability for any damages and/or losses caused due to a failure to comply with the instructions contained herein or caused by persons who do not fulfil the aforementioned requirements.
  • Page 6 A A Q Q -101S -101S Instruction manual Version: 2.02 Copyright Copyright © Arcteq Relays Ltd. 2023. All rights reserved. © Arcteq Relays Ltd IM00007...

  • Page 7: Document Inf

    - The IP classification of point sensors updated. - The AWG value updated. - "Disturbance tests" table reformatted. - Order code images updated. - The number for Arcteq's technical support added to the reference information. R R e e vision vision 2.02 2.02...
  • Page 8 -101S Instruction manual Version: 2.02 - Updated the Arcteq logo on the cover. - Updated the distance between the flash and the sensor in the "Testing the operation time" chapter. - Unified terminology used througout the manual (e.g. unit and device means the same thing.

  • Page 9: Abbr Bbre E Via Viations Tions

    NC – normally closed NO – normally open PCB – printed circuit board RF – radio frequency Rx – receiver SAS – standard arc scheme SF – system failure Tx – transceiver μP - microprocessor © Arcteq Relays Ltd IM00007...

  • Page 10: General

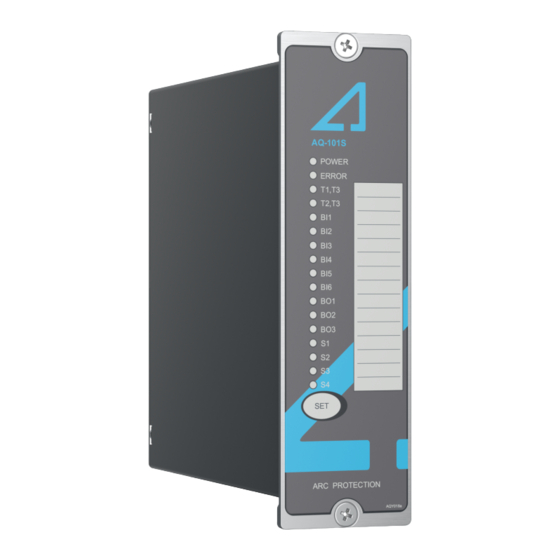

    Figure. 3 - 1. Arc protection device AQ-101S. The AQ-101S is designed according to the latest protection relay standards and is therefore suitable for installations in rough environments. These include utilities and power plants (both traditional and renewable), various heavy industry applications (off-shore, marine, oil, gas, mining, steel, etc.) as well as commercial and institutional electrical systems.
  • Page 11 4 Device features AQ-101S is an arc flash protection device which it can be applied to a variety of applications that require a large amount of data communication. It can be used on its own as a stand-alone device, or it can be a part of a more complex arc protection system by using binary inputs and outputs to connect multiple AQ 100 series devices together.

  • Page 12: Connections

    -101S Instruction manual Version: 2.02 5 Connections The figure below depicts the connections of AQ-101S. Please note that the SF relay is in the de- energized position. Figure. 5 - 2. Rear terminals of AQ-101S. 5.1 Simplified block diagram The figure below presents the main components of the AQ-101S device.
  • Page 13 A A Q Q -101S -101S Instruction manual Version: 2.02 Figure. 5.1 - 3. Simplified block diagram of AQ-101S. © Arcteq Relays Ltd IM00007...

  • Page 14: Inputs

    5.2.1 Arc sensor channels Figure. 5.2.1 - 4. Arc point sensor connections AQ-101S has four (4) arc point sensor channels: S1, S2, S3 and S4. You can connect a maximum of three (3) arc point sensors to each channel. When the arc protection system has been set up, point sensor connections are constantly monitored.

  • Page 15: Outputs

    5.3.1 Binary outputs Figure. 5.3.1 - 6. Binary output connections AQ-101S has three (3) binary outputs: BO1, BO2 and BO3. AQ 100 series binary outputs have an internal 24 VDC power supply. Binary outputs are used for sending overcurrent, light detection, master trip and other signals to other AQ 100 series devices in the same system.

  • Page 16: System Failure Relay

    Figure. 5.4 - 9. Auxiliary power supply connection The auxiliary power supply voltage is 92….265 V AC/DC. Alternatively, the optional auxiliary power supply can be of 18…72 V DC. This choice must be specified when ordering. © Arcteq Relays Ltd IM00007...

  • Page 17: Arc Sensors C Sensors

    Installing a connection cable is simple as each end of the sensor has a detachable cover over the cable connectors. Please remember to reattach the cover once the wires have been installed. NOTE! The AQ-01 point sensor does no not t come with a connection cable! © Arcteq Relays Ltd IM00007...

  • Page 18: Arc Light And Pressure Point Sensor Aq-02

    A A Q Q -101D -101D Order option A A Q Q -101S -101S A A Q Q -102 -102 A A Q Q -103 -103 Order option A A Q Q -110P -110P Order option © Arcteq Relays Ltd IM00007...

  • Page 19: Connecting Sensors

    1. Open the sensor covers and detach the connectors. 2. Attach the cable to the connector and to the arc protection device. 3. Reattach the connectors to the sensor. 4. Run the auto-configuration procedure. See System setup for more details. © Arcteq Relays Ltd IM00007...

  • Page 20: Operation And Config Tion And Configura Uration Tion

    Scheme Scheme selection chapter. selection chapter. Scheme 4–1 Scheme selection. Switch 1: 0 selection Switch 1: 1 Switch 2: 0 Switch 2: 2 Switch 3: 0 Switch 3: 4 Switch 4: 0 Switch 4: 8 © Arcteq Relays Ltd IM00007...

  • Page 21: Scheme Selection

    (can be found at arcteq.fi/downloads/). 7.1.2 Available logic schemes The schemes described below are the most commonly used ones for AQ-101S devices. However, additional schemes are also available; please contact your nearest Arcteq representative for more information on those schemes.
  • Page 22 S4 monitors the main busbar compartment. The trip contact T1 is responsible for tripping the section circuit breaker. The trip contact T2 is responsible for tripping the coupler circuit breaker. © Arcteq Relays Ltd IM00007...
  • Page 23 3) Activates only if BI1 is ON or if both BI1 and BI2 are either ON or OFF. 4) Activates only if BI2 is ON or if both BI1 and BI2 are either ON or OFF. © Arcteq Relays Ltd IM00007...
  • Page 24 The binary input BI3 receives overcurrent information from the incoming feeder of a connected AQ-110 device. The binary inputs BI4, BI5 and BI6 are used for sending light information from the different locations of the busbar compartment. © Arcteq Relays Ltd IM00007...
  • Page 25 3) Activates only if BI1 is ON or if both BI1 and BI2 are either ON or OFF. 4) Activates only if BI2 is ON or if both BI1 and BI2 are either ON or OFF. © Arcteq Relays Ltd IM00007...
  • Page 26 (BI3 from one of them, BI4 from the other). The binary outputs BO1 and BO3 represent the arc fault detected at both main busbar sections. You can find a more detailed description of this scheme in the AQ-SAS booklet. © Arcteq Relays Ltd IM00007...
  • Page 27 Figure. 7.1.2 - 22. Simplified logic diagram of SS:4. SS:5 The logic scheme SS:5 is used for arc protection solutions with a single busbar. The sensors monitor the section circuit breaker and the busbar within the section circuit breaker. © Arcteq Relays Ltd IM00007...

  • Page 28: Push Button (Set)

    Figure. 7.1.2 - 24. Simplified logic diagram of SS:5. 7.2 Push button (SET) The device contains one push button, SET SET, and it can be used for all operational functions. The push button is used for: © Arcteq Relays Ltd IM00007...

  • Page 29: System Setup (Auto-Configuration)

    (2) seconds. The LEDs of the corresponding sensors, binary input channels and the “Power” LED start blinking. The LEDs blink as many times as there are connected sensors and binary output channels from other devices. © Arcteq Relays Ltd IM00007...

  • Page 30: Circuit Breaker Failure Protection

    7.4 LED indicator functions The AQ-101S device has seventeen (17) indication LEDs on the device's front panel.. Apart from the "Power" and "Error" LEDs, the user can write their own identifications for each of the remaining LEDs on the text insert located in the transparent pocket next to the LEDs.

  • Page 31: Non-Volatile Memory

    This feature is especially important if tripping causes the device to lose its auxiliary power. The non-volatile memory does not require a power supply to maintain the information and it retains the settings and the indications permanently without power. © Arcteq Relays Ltd IM00007...

  • Page 32: Sy Y St Stem Self-Super 8 S Em Self-Supervision Vision

    The device goes into Error mode, if a DIP switch setting is changed after the system setup procedure has been performed. However, the configured (stored) settings are still valid and the device is still operational. © Arcteq Relays Ltd IM00007...

  • Page 33: Applica A Tion Examples

    In order to indicate the breaker's precise location, its position information is sent to the AQ-101S device via the BI1 (main busbar) or BI2 (reserve busbar) binary input channel. The T1 trip contact is responsible for tripping the breaker. T3 gives synchronous information on the trip alarm.
  • Page 34 A A Q Q -101S -101S Instruction manual Version: 2.02 10 Wiring example Figure. 10 - 27. Example wiring diagram for AQ-101S. © Arcteq Relays Ltd IM00007...

  • Page 35: Dimensions And Installa Imensions And Installation Tion

    Instruction manual Version: 2.02 11 Dimensions and installation AQ-101S can be either door-mounted or panel-mounted in a standard 19 inch rack. The device's dimensions (without PCBs) are as follows: • Height: 157 mm (6.18 in) • Width: 50 mm (1.97 in) •...
  • Page 36 Version: 2.02 The following image illustrates how a device is installed into a cut-out. Please note that as AQ-101S is narrower than the device in the image, it is connected to the cut-out panel by a single screw on both the top and the bottom of the front panel instead of the two depicted below.

  • Page 37: Testing Esting

    20 cm (12 inches) from the sensor but do not activate the binary input used for the overcurrent condition (I>). 10. Verify that no trip has occured and only the indicator LED of the sensor activation is lit. © Arcteq Relays Ltd IM00007...

  • Page 38: Testing The Cbfp Function

    2. Connect one of the test set's outputs to a strong camera flash to initialize the flash and to configure the set's timer to start simultaneously with the flash. 3. Connect one of the AQ-101S device's trip outputs (T1, T2, T3) to a test set input and configure the input to stop the timer.
  • Page 39 A A Q Q -101S -101S Instruction manual Version: 2.02 © Arcteq Relays Ltd IM00007...

  • Page 40: Tr R Oubleshoo 13 T Oubleshooting Ting

    Tripping might require overcurrent signal simultaneously with light signal. The trip relay does not operate even when the Check the DIP switch settings (see the DIP switch settings chapter for sensor is activated. more information). © Arcteq Relays Ltd IM00007...

  • Page 41: Mounting And Installation

    14.4 Binary inputs Table. 14.4 - 10. Technical data for the binary inputs (BI1, BI2, BI3, BI4, BI5, BI6). Nominal threshold voltage 24 V DC or or 110 V DC or or 220 V DC © Arcteq Relays Ltd IM00007...

  • Page 42: Trip Relays

    16 A - make-and-carry for 0.5 s 30 A Breaking capacity DC* 40 W (0.36 A at 110 V DC) Contact material AgNi 90/10 *) When the time constant L/R = 40 ms. 14.8 Point sensors © Arcteq Relays Ltd IM00007...

  • Page 43: Disturbance Tests

    Between wire and earth: 4 kV, 1.2/50 µs RF electromagnetic field f = 80…1,000 MHz, 10 V/m (EN 61000-4-3, level 3) Conducted RF field f = 150 kHz…80 MHz, 10 V/m (EN 61000-4-6, level 3) © Arcteq Relays Ltd IM00007...

  • Page 44: Voltage Tests

    Table. 14.13 - 20. Technical data for the device casing. Protection: - front IP 50 - back IP 20 Device dimensions (W × H × D) 50 × 177 × 161 mm Weight 0.7 kg © Arcteq Relays Ltd IM00007...
  • Page 45 Accessories Order code Description Note Manufacturer AQX006 Wall mounting bracket For AQ-103 and AQ-110x variants (MV and LV). Arcteq Ltd. AQX016 Wall mounting bracket For AQ-101, AQ-101S and AQ-102 devices (MV and LV). Arcteq Ltd. © Arcteq Relays Ltd IM00007...
  • Page 46 Arcteq Relays Ltd. Visiting and postal address Kvartsikatu 2 A 1 65300 Vaasa, Finland Contacts Phone: +358 10 3221 370 Website: arcteq.fi Technical support: support.arcteq.fi +358 10 3221 388 (EET 9:00 – 17.00) E-mail (sales): sales@arcteq.fi © Arcteq Relays Ltd IM00007...
