  • Page 1 AQ-102LV Arc flash protection device Instruction manual...

  • Page 3: Table Of Contents

    13.7 Fiber optic loop sensors ..................... 35 13.8 Disturbance tests....................... 36 13.9 Voltage tests........................36 13.10 Mechanical tests......................36 13.11 Environmental conditions ....................37 13.12 Casing..........................37 14 Or 14 Ordering inf dering informa ormation tion ..............................................38 © Arcteq Relays Ltd IM00048...
  • Page 4 A A Q Q -102L -102LV V Instruction manual Version: 1.01 15 Contact and r 15 Contact and re e f f er erence inf ence informa ormation tion......................................40 © Arcteq Relays Ltd IM00048...
  • Page 5 Nothing contained in this document shall increase the liability or extend the warranty obligations of the manufacturer Arcteq Relays Ltd. The manufacturer expressly disclaims any and all liability for any damages and/or losses caused due to a failure to comply with the instructions contained herein or caused by persons who do not fulfil the aforementioned requirements.
  • Page 6 A A Q Q -102L -102LV V Instruction manual Version: 1.01 Copyright Copyright © Arcteq Relays Ltd. 2023. All rights reserved. © Arcteq Relays Ltd IM00048...

  • Page 7: Document Informa Ormation Tion

    1.01 Date January 2023 - Updated the Arcteq logo on the cover. - Updated the distance between the flash and the unit in the "Testing the unit operation time" chapter. - Unified terminology used througout the manual (e.g. unit and device means the same thing.

  • Page 8: Abbr Bbre E Via Viations Tions

    NC – normally closed NO – normally open PCB – printed circuit board RF – radio frequency Rx – receiver SAS – standard arc scheme SF – system failure Tx – transceiver μP - microprocessor © Arcteq Relays Ltd IM00048...

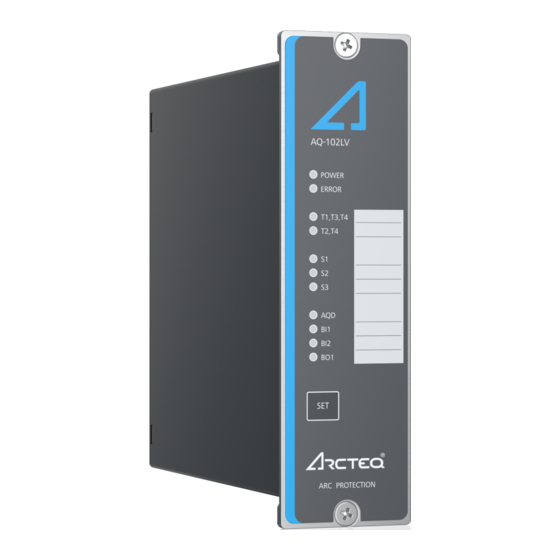

  • Page 9 Figure. 3 - 1. Arc protection device AQ-102LV. The AQ-102LV is designed according to the latest protection relay standards and is therefore suitable for installations in rough environments. These include utilities and power plants (both traditional and renewable), various heavy industry applications (off-shore, marine, oil, gas, mining, steel, etc.) as well as commercial and institutional electrical systems.
  • Page 10 4 Device features AQ-102LV is an arc flash protection device which can be applied to a variety of applications. It can be used on its own as a stand-alone device, or it can be a part of a more complex arc protection system by using binary inputs and outputs to connect multiple AQ 100 series devices together.

  • Page 11: Connections

    The figure below depicts the connections of AQ-102. Please note that the SF relay is in the de- energized position. Figure. 5 - 2. Rear terminals of AQ-102LV. 5.1 Simplified block diagram The figure below presents the main components of the AQ-102LV device. © Arcteq Relays Ltd IM00048...
  • Page 12 A A Q Q -102L -102LV V Instruction manual Version: 1.01 Figure. 5.1 - 3. Simplified block diagram of AQ-102LV. © Arcteq Relays Ltd IM00048...

  • Page 13: Inputs

    Figure. 5.2.1 - 4. Arc fiber loop sensor connections AQ-102LV has three (3) fiber loop sensor channels: S1, S2 and S3. Each channel has a transmitter (Tx) terminal and a receiver (Rx) terminal. When the fiber loop is connected to the device, one of its ends is connected to "Tx"...

  • Page 14: Outputs

    AQ 100 series devices use these pulses to count the number of connected binary outputs. System self-supervision chapter for more information. NOTE! Please note that the binary ouputs are polarity-sensitive. 5.3.2 Trip relays Figure. 5.3.2 - 7. Trip relay connections © Arcteq Relays Ltd IM00048...

  • Page 15: System Failure Relay

    Figure. 5.4 - 9. Auxiliary power supply connection The auxiliary power supply voltage is 92….265 V AC/DC. Alternatively, the optional auxiliary power supply can be of 18…72 V DC. This choice must be specified when ordering. © Arcteq Relays Ltd IM00048...

  • Page 16: Arc Sensors C Sensors

    If necessary, the ends of an AQ-07 cable can be ordered with heat shrinking tubing to avoid light detection outside the protected zone. The covered area can be one (1) or two (2) meters by default; if other lengths are required, please consult the Arcteq sales team. You can find the Contact and reference information page at the end of this manual.

  • Page 17: Connecting Sensors

    6.5.1 Fiber loop sensors 1. Drill holes on the wall for the sensor cable to enter the protected compartment. 2. Install protective covers in the holes to ensure the sensor cable remains unharmed by rough edges. © Arcteq Relays Ltd IM00048...
  • Page 18 4. Turn the black and blue receiver (“Rx”) and transceiver (“Tx”) screws counter-clockwise and plug in the sensor cable terminals. Then turn the screws clockwise to secure the terminals in their place. © Arcteq Relays Ltd IM00048...

  • Page 19: Operation And Config Tion And Configura Uration Tion

    S1: L> or or L> + I> point sensor channel. Enables or Latching or or Non- disables latching of T1 and T2 operate as latching T1 and T2 latching is disabled. latching T1 and T2 relays. trip relays. © Arcteq Relays Ltd IM00048...

  • Page 20: Scheme Selection

    Figure. 7.1.1 - 11. DIP switches used for selecting the logic scheme. 7.1.2 Available logic schemes The schemes described below are the most commonly used ones for AQ-102LV devices. However, additional schemes are also available; please contact your nearest Arcteq representative for more information on those schemes.
  • Page 21 1) The activation criterion can be selected to be light only (L>) or both light and current (L> + I>). If the blocking function (SW1: 5) is OFF, the binary input BI1 can be used to receive an external current signal. 2) If the blocking function (SW1: 5) is ON, the activation of BI1 blocks activation. © Arcteq Relays Ltd IM00048...
  • Page 22 2) If the blocking function (SW1: 5) is ON, the activation of BI2 blocks activation. NOTE! In this scheme, the binary input BI1 is used as the input for resetting latched trip relays and LEDs. © Arcteq Relays Ltd IM00048...
  • Page 23 (SW1: 5) is OFF, the binary input BI2 can be used to receive an external current signal. 2) If the blocking function (SW1: 5) is ON, the activation of BI2 blocks activation. Figure. 7.1.2 - 15. Simplified logic diagram of SS:3. © Arcteq Relays Ltd IM00048...

  • Page 24: Push Button (Set)

    SET, and it can be used for all operational functions. The push button is used for: 1. Setting up the system (also known as auto-configuration) 2. Resetting the indicator LEDs 3. Resetting latched outputs 4. Checking the input connections © Arcteq Relays Ltd IM00048...

  • Page 25: System Setup (Auto-Configuration)

    7.3 LED indicator functions The AQ-102LV device has eleven (11) indication LEDs on the device's front panel.. Apart from the "Power" and "Error" LEDs, the user can write their own identifications for each of the remaining LEDs on the text insert located in the transparent pocket next to the LEDs.

  • Page 26: Led Operations Guide

    You can clear the LEDs by pushing the SET SET button. 7.4 LED operations guide The table below describes the function of each indicator LED in detail. Table. 7.4 - 4. LED operations AQ-102LV. LED name LED name Light off...

  • Page 27: Non-Volatile Memory

    This feature is especially important if tripping causes the device to lose its auxiliary power. The non-volatile memory does not require a power supply to maintain the information and it retains the settings and the indications permanently without power. © Arcteq Relays Ltd IM00048...

  • Page 28: Sy Y St Stem Self-Super 8 S Em Self-Supervision Vision

    The device goes into Error mode, if a DIP switch setting is changed after the system setup procedure has been performed. However, the configured (stored) settings are still valid and the device is still operational. © Arcteq Relays Ltd IM00048...
  • Page 29 A A Q Q -102L -102LV V Instruction manual Version: 1.01 9 Wiring example Figure. 9 - 18. Example wiring diagram for AQ-102LV. © Arcteq Relays Ltd IM00048...

  • Page 30: Dimensions And Installa Imensions And Installation Tion

    Instruction manual Version: 1.01 10 Dimensions and installation AQ-102LV can be either door-mounted or panel-mounted in a standard 19 inch rack. The device's dimensions (without PCBs) are as follows: • Height: 157 mm (6.18 in) • Width: 50 mm (1.97 in) •...
  • Page 31 The following image illustrates how a device is installed into a cut-out. Please note that as AQ-102LV is narrower than the device in the image, they are connected to the cut-out panel by a single screw on both the top and the bottom of the front panel instead of the two depicted below.

  • Page 32: Testing Esting

    10. Verify that no trip has occured and only the indicator LED of the sensor activation is lit. 11. If you are using the BO1 signal and have configured it to send light information, verify that it is activated. 12. Press the SET SET push button to reset all indications and latches. © Arcteq Relays Ltd IM00048...

  • Page 33: Testing The Operation Time

    If you want to have more information of these tests, please refer to the routine test reports sent with the AQ-102 device and/or consult your nearest Arcteq representative for the type test reports.
  • Page 34 A A Q Q -102L -102LV V Instruction manual Version: 1.01 © Arcteq Relays Ltd IM00048...

  • Page 35: Tr R Oubleshoo 12 T Oubleshooting Ting

    Tripping might require overcurrent signal simultaneously with light signal. The trip relay does not operate even when the Check the DIP switch settings (see the "DIP switch settings" chapter for sensor is activated. more information). © Arcteq Relays Ltd IM00048...

  • Page 36: Technic Echnical Da Al Data Ta

    - make-and-carry for 3 s 16 A - make-and-carry for 0.5 s 30 A Breaking capacity DC* 40 W (0.36 A at 110 V DC) Contact material AgNi 90/10 *) When the time constant L/R = 40 ms. © Arcteq Relays Ltd IM00048...

  • Page 37: Binary Output(S)

    Table. 13.7 - 13. Technical data for the AQ-07 fiber optic loop sensor. Material Covered glass fiber Light intensity threshold 8,000 lux Cable length (min…max) 3…50 m Cable diameter 1.2 mm Detection radius 360º Bending radius 1 cm Operating temperature –40…+85 ºC © Arcteq Relays Ltd IM00048...

  • Page 38: Disturbance Tests

    5 kV, 1.2/50 µs, 0.5 J 13.10 Mechanical tests Table. 13.10 - 17. Technical data for the mechanical tests. 2…13.2 Hz (± 3.5 mm) Vibration test 13.2…100 Hz (±1.0 g) Shock/bump test (IEC 60255-21-2) 20 g and 1,000 bumps/dir. © Arcteq Relays Ltd IM00048...

  • Page 39: Environmental Conditions

    Table. 13.12 - 19. Technical data for the device casing. Protection: - front IP 50 - back IP 20 Device dimensions (W × H × D) 50 × 177 × 161 mm Weight 0.7 kg © Arcteq Relays Ltd IM00048...

  • Page 40: Ordering Inf Dering Informa Ormation Tion

    A A Q Q -102L -102LV V Instruction manual Version: 1.01 14 Ordering information AQ-102LV fiber optic loop sensor device AQ-0x fiber optic loop sensors © Arcteq Relays Ltd IM00048...
  • Page 41 Accessories Order code Description Note Manufacturer AQX006 Wall mounting bracket For AQ-103 and AQ-110x variants (MV and LV). Arcteq Ltd. AQX016 Wall mounting bracket For AQ-101, AQ-101S and AQ-102 devices (MV and LV). Arcteq Ltd. © Arcteq Relays Ltd IM00048...

  • Page 42: Arcteq Relays Ltd

    Arcteq Relays Ltd. Visiting and postal address Kvartsikatu 2 A 1 65300 Vaasa, Finland Contacts Phone: +358 10 3221 370 Website: arcteq.fi Technical support: support.arcteq.fi +358 10 3221 388 (EET 9:00 – 17.00) E-mail (sales): sales@arcteq.fi © Arcteq Relays Ltd IM00048...
