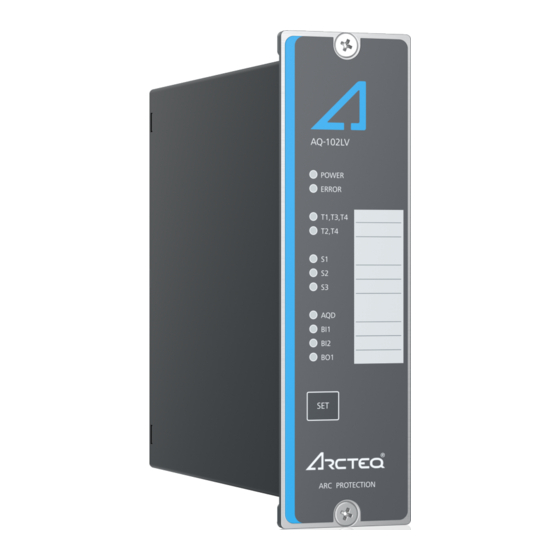

Arc flash protection unit
Hide thumbs Also See for AQ-102LV:

Advertisement

Quick Links

AQ-102LV
Arc flash protection unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQ-102LV and is the answer not in the manual?

Questions and answers

Summary of Contents for Arcteq AQ-102LV

  • Page 1 AQ-102LV Arc flash protection unit...
  • Page 2: Table Of Contents

    10.2.3. System failure relay....................32 10.3. Binary inputs........................32 10.4. Auxiliary voltage........................ 33 10.5. Sensors ..........................33 10.6. Disturbance tests......................34 10.7. Voltage tests........................34 10.8. Mechanical tests....................... 34 10.9. Environmental conditions ....................34 10.10. Casing and packaging ....................34 © Arcteq Relays Ltd...
  • Page 3 -102LV V Version: 1.00 11. Or 11. Ordering inf dering informa ormation tion .............................................. 35 12. Contact and r 12. Contact and re e f f er erence inf ence informa ormation tion...................................... 36 © Arcteq Relays Ltd...
  • Page 4 Nothing contained in this document shall increase the liability or extend the warranty obligations of the manufacturer Arcteq Relays Ltd. The manufacturer expressly disclaims any and all liability for any damages and/or losses caused due to a failure to comply with the instructions contained herein or caused by persons who do not fulfil the aforementioned requirements.
  • Page 5 A A Q Q -102L -102LV V Version: 1.00 Copyright Copyright © Arcteq Relays Ltd. 2020. All rights reserved. © Arcteq Relays Ltd...
  • Page 6 A A Q Q -102L -102LV V Version: 1.00 1. Manual revision notes R R e e vision vision 1.00 1.00 Date September 2020 Changes - The first revision of the manual. © Arcteq Relays Ltd...
  • Page 7: A 2. Abbr Bbre E Via Viations Tions

    NC – normally closed NO – normally open PCB – printed circuit board QD – quenching device RF – radio frequency Rx – receiver SAS – standard arc scheme SF – system failure Tx – transceiver μP - microprocessor © Arcteq Relays Ltd...
  • Page 8: General

    (off-shore, marine, oil, gas, mining, steel, etc.) as well as commercial and institutional electrical systems. While AQ-102LV is suitable for MV use, it is designed for LV switchgears and for motor control center applications in both new and retrofitted installations.
  • Page 9 A A Q Q -102L -102LV V Version: 1.00 Figure. 3.1. - 1. Dimensions of the device. The image below presents the dimensions of the cut-out needed for mounting the unit on a panel. © Arcteq Relays Ltd...
  • Page 10: Wiring

    A A Q Q -102L -102LV V Version: 1.00 Figure. 3.1. - 2. Cut-out for panel-mounting a unit. 3.2. Wiring © Arcteq Relays Ltd...
  • Page 11: Unit Features

    3.3. Unit features AQ-102LV is a multipurpose arc flash protection unit and can be applied to a variety of applications. It can be used on its own as a stand-alone unit, or it can be a part of a more complex arc protection system through a binary bus.
  • Page 12: Simplified Block Diagram

    A A Q Q -102L -102LV V Version: 1.00 Figure. 3.3. - 4. Arc protection unit AQ-102LV. 3.4. Simplified block diagram The figure below presents the main components of the AQ-102LV unit. © Arcteq Relays Ltd...
  • Page 13 A A Q Q -102L -102LV V Version: 1.00 Figure. 3.4. - 5. Simplified block diagram of AQ-102LV. © Arcteq Relays Ltd...
  • Page 14: Operation And Config Tion And Configura Uration Tion

    4. Operation and configuration 4.1. LED indicator functions The AQ-102LV unit has eleven (11) indication LEDs. Apart from the "Power" and "Error" LEDs, the user can write their own identifications for each of the remaining LEDs on the text insert located in the transparent pocket next to the LEDs.
  • Page 15: Push-Button (Set)

    Unless the button is pressed, the latched trip relays remain active until the auxiliary power is disconnected. All LED indications also remain active even when the auxiliary power supply is disconnected unless the button is pressed. Please refer to the "Non-volatile memory" chapter for more information. © Arcteq Relays Ltd...
  • Page 16: Input Connection Check

    S1 sensor channel. simultaneously to trigger tripping. I>) Latching or non-latching (Latch for the T1 and T2 trip T1 and T2 operate as latched. T1 and T2 operate as non-latched. or or Non- relays. latch) © Arcteq Relays Ltd...
  • Page 17: Scheme Selection

    DIP switches numbered 1…4 ("Scheme selection"). 4.4.2. Available logic schemes The schemes described below are the most important ones for this unit. However, additional schemes are also available; please contact your nearest Arcteq representative for more information on those schemes. SS:0 1) If the blocking function (SW1: 5) is ON, the activation of BI2 block all trip output signals.
  • Page 18 The tripping criterion can be selected to be light only (L>) or both light and current (L> + I>). NOTE! In this scheme, the binary input BI1 is used as the input for the device reset. © Arcteq Relays Ltd...
  • Page 19: Non-Volatile Memory

    This feature is especially important if tripping causes the unit to lose its auxiliary power. The non-volatile memory does not require a power supply to maintain the information and it retains the settings and the indications permanently without power. © Arcteq Relays Ltd...
  • Page 20: Ar 5. Arc Sensors C Sensors

    20 m, 25 m, 30 m, 35 m, 40 m). It is not recommended to cut or splice the cable on-site. However, if cutting or splicing is necessary due to the cable breaking, please contact your nearest Arcteq representative for instructions.
  • Page 21: Arc Light Fiber Optic Loop Sensor Aq-08

    It is not recommended to cut or splice the cable on-site. However, if cutting or splicing is necessary due to the cable breaking, please contact your nearest Arcteq representative for instructions. The fixed light intensity threshold of an AQ-08 sensor is 8,000 lux. The sensor does not require further settings by the user.
  • Page 22: Sensor-Unit Dependencies

    Please note that AQ-07 and AQ-08 glass fibers can be covered if the placing requires blocking of unwanted light activation. For more detailed instructions on both the installation and the tubing processes, please refer to the "Connecting sensors" chapter in the AQ-0x instruction booklet (arcteq.fi/downloads). © Arcteq Relays Ltd...
  • Page 23: S 6. Sy Y St Stem Self-Super Em Self-Supervision Vision

    The unit goes into SF alarm mode, if a DIP switch setting is changed after the system setup procedure has been performed. However, the configured (stored) settings are still valid and the unit is still operational. © Arcteq Relays Ltd...
  • Page 24: Connections

    A A Q Q -102L -102LV V Version: 1.00 7. Connections © Arcteq Relays Ltd...
  • Page 25 A A Q Q -102L -102LV V Version: 1.00 Figure. 7. - 10. Rear terminals of AQ-102LV. © Arcteq Relays Ltd...
  • Page 26 A A Q Q -102L -102LV V Version: 1.00 © Arcteq Relays Ltd...
  • Page 27: Outputs

    A A Q Q -102L -102LV V Version: 1.00 Figure. 7. - 11. Connections of the AQ-102LV (with SF in de-energized position). 7.1. Outputs 7.1.1. Trip relays This unit has two (2) integrated trip relays for tripping circuit breakers, namely T1 and T2. Their type is normally open (NO).
  • Page 28: System Failure Relay

    7.2.1. Arc sensor channels AQ-102LV has three (3) fiber optic loop sensor channels: S1, S2, S3 and S4. Each channel has a transceiver (Tx) and a receiver (Rx). When the fiber optic loop sensor is connected to the unit, one of its ends is connected to "Tx"...
  • Page 29: Testing Esting

    11. Verify that no trip has occured and only the indicator LED of the sensor activation is lit. 12. If you are using the BOUT signal and have configured it to send light information, verify that it is activated. 13. Press the SET SET push button to reset all indications and latches. © Arcteq Relays Ltd...
  • Page 30: Testing The Cbfp Function

    If you want to have more information of these tests, please refer to the routine test reports sent with the AQ-102 unit and/or consult your nearest Arcteq representative for the type test reports.
  • Page 31 A A Q Q -102L -102LV V Version: 1.00 © Arcteq Relays Ltd...
  • Page 32: T 9. Tr R Oubleshoo Oubleshooting Ting

    Check the testing equipment, especially the camera flash intensity (see the "Testing" chapter for more information). The trip relay does not operate even Check the DIP switch settings (see the "DIP switch settings" chapter for more when the sensor is activated. information). © Arcteq Relays Ltd...
  • Page 33: Technic Echnical Da Al Data Ta

    - 0.5 s make and carry 30 A Breaking capacity DC* 40 W (0.36 A at 110 V DC) Contact material AgNi 90/10 *) When the time constant L/R = 40 ms. 10.3. Binary inputs Nominal threshold voltage 24 VDC © Arcteq Relays Ltd...
  • Page 34: Auxiliary Voltage

    1 cm Operating temperature –40…+85 ºC AQ-08 fiber optic loop sensor Material Covered glass fiber Light intensity threshold 8,000 lux Cable length (min…max) 3…15 m Cable diameter 1.2 mm Detection radius 360º Bending radius 1 cm © Arcteq Relays Ltd...
  • Page 35: Disturbance Tests

    10.10. Casing and packaging Protection: - front IP 50 - back IP 20 Dimensions (W × H × D): - device 45 × 164 × 157 mm - package 0.7 kg Weight 1.0 kg (with package) © Arcteq Relays Ltd...
  • Page 36 A A Q Q -102L -102LV V Version: 1.00 11. Ordering information AQ-102LV fiber optic loop sensor unit AQ-0x fiber optic loop sensors Accessories Order code Description Note Manufacturer AQX099 Wall bracket For AQ-101, AQ-101S and AQ-102 units (MV and LV).
  • Page 37 Manufacturer Arcteq Relays Ltd. Visiting and postal address Kvartsikatu 2 A 1 65300 Vaasa, Finland Contacts Phone: +358 10 3221 370 Fax: +358 10 3221 389 Website (general): arcteq.fi Website (technical support): support.arcteq.fi E-mail (sales): sales@arcteq.fi © Arcteq Relays Ltd...
