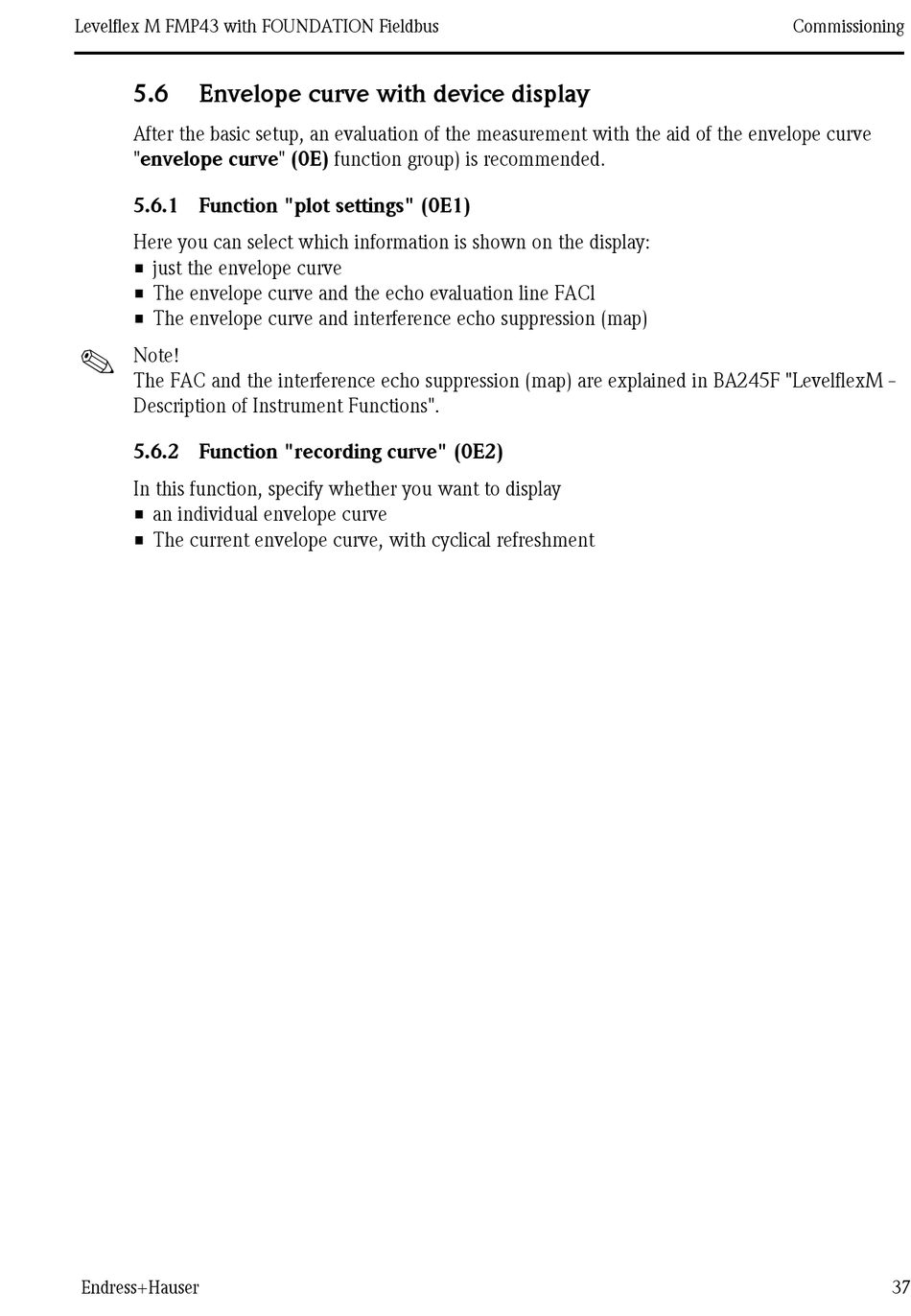

5.6
Envelope curve with device display
After the basic setup, an evaluation of the measurement with the aid of the envelope curve
"envelope curve" (0E) function group) is recommended.
5.6.1 Function "plot settings" (0E1)
Here you can select which information is shown on the display:
• just the envelope curve
• The envelope curve and the echo evaluation line FACl
• The envelope curve and interference echo suppression (map)
!
Note!
The FAC and the interference echo suppression (map) are explained in BA245F "LevelflexM -
Description of Instrument Functions".
5.6.2 Function "recording curve" (0E2)
In this function, specify whether you want to display
• an individual envelope curve
• The current envelope curve, with cyclical refreshment
