Analyzer Space - Micromeritics FLEX Series Pre-Installation Instructions

2 Pre-installation Instructions
A
NALYZER

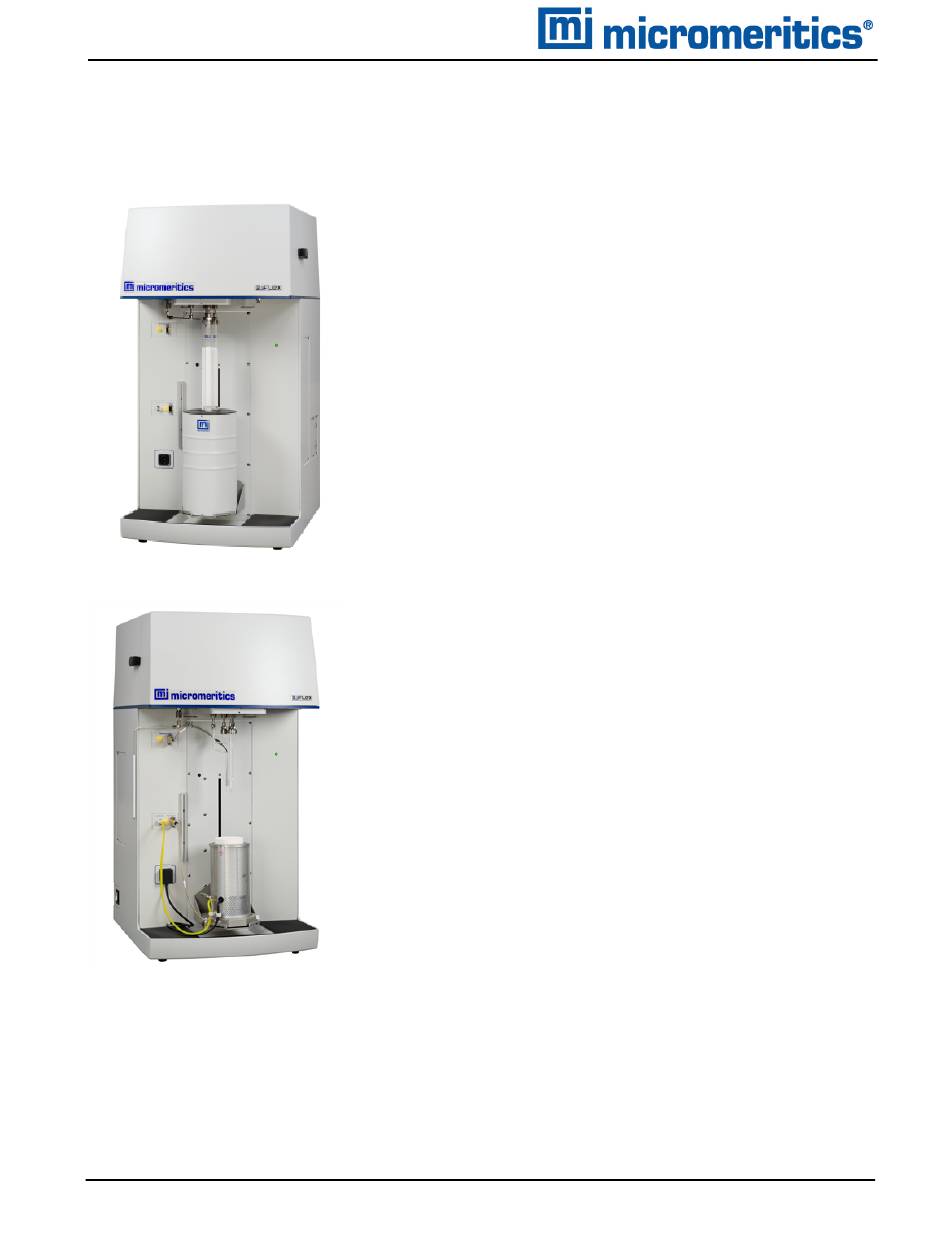

An unobstructed lab work space that will accommodate the following specifications is needed:
Physisorption
Chemisorption
2 - 2
S
PACE
Flex Series Pre-installation Instructions and Checklist
Analyzer
Height 112 cm (44 in.)
Width 57.25 cm (23 in.)
Depth 61 cm (24 in.)
Weight 84 kg (185 lbs)
Computer and Printer
Width 96.5 cm (38 in.) Approx.
Gas Supply
1 square ft (0.1 square m) for each gas cylinder
needed for installation. For standard
installations, the cylinders must be within 6ft
(2m) of the instrument.
External Vacuum Pump
Height 17 (7 in.) Approx.
Width 15 cm (6 in.) Approx.
Depth 31 cm (12 in.) Approx.
Degas Unit (optional accessory)
Width 50 cm (20 in.) Approx.
Depth 40 cm (16 in.) Approx.
350-42870-01 (Rev H) — Apr 2021
