13 Reconnect the power cables to the floppy and CD-ROM drives. See Figure 2-17.

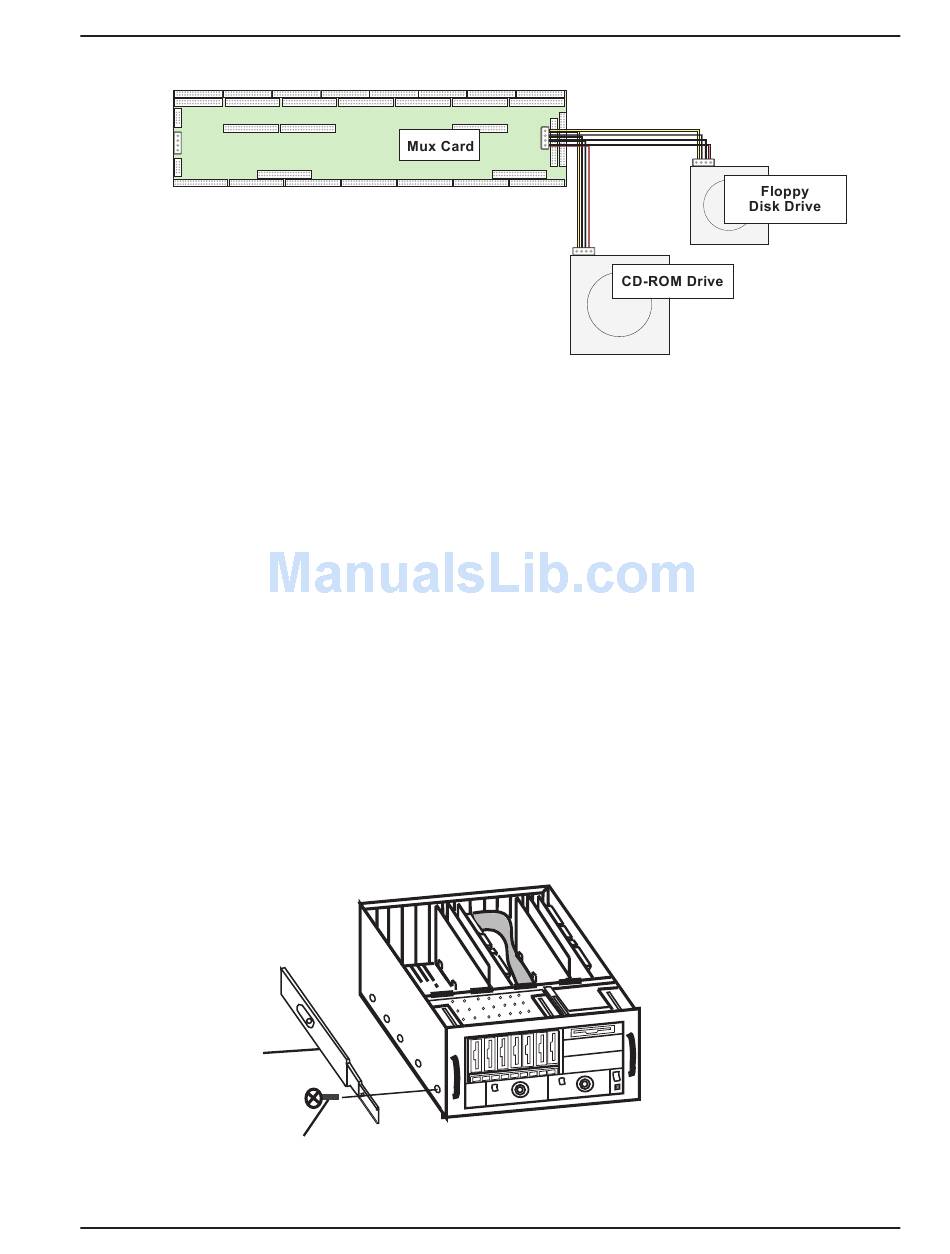

Figure 2-17. Floppy and CD-ROM Drive Power Connections
13 Slide the chassis all the way into the MultiArray and tighten the back two mounting
screws and replace the two front mounting screws.

Replacing Cover

Align the holes in the cover with the retaining screws on the MA3a chassis. Replace the top
cover and slide towards the front of the chassis. Tighten the seven retaining screws.

Mounting Optional Rails (MARAIL)

If you are installing the MultiArray in a standard rack enclosure, perform the following steps to
install the optional mounting rails prior to cabling and power-up.
1 Attach the left hand rail (Figure 2-18) to the left side of the rack using the five 10x32
mounting screws.
2 Attach the right hand rail to the right side of the rack using the five 10x32 mounting
screws.
3 Replace the top cover.
4 Place the MultiArray rack in the standard 19-inch rack enclosure and secure the rails to
the enclosure.
Left Hand
Rail
Rail
Mounting
Screws (5)
Figure 2-18. Installing Rails
