MultiArray User Guide
Installing a Disk Drive into Horizontal Chassis
Your MA3a comes pre-configured with a floppy and CD-ROM drive installed in the combination
horizontal drive chassis. The data and power cables from these drives have already been
connected. If you wish to add a disk drive, proceed with the following procedure.
1
Remove the two top front combination horizontal chassis mounting screws. See Figure
2-12.
2
Loosen, but do not remove, the two top rear chassis mounting screws. See Figure 2-12.
3
Slide the chassis out the front of the MultiArray to the end of the slide travel.

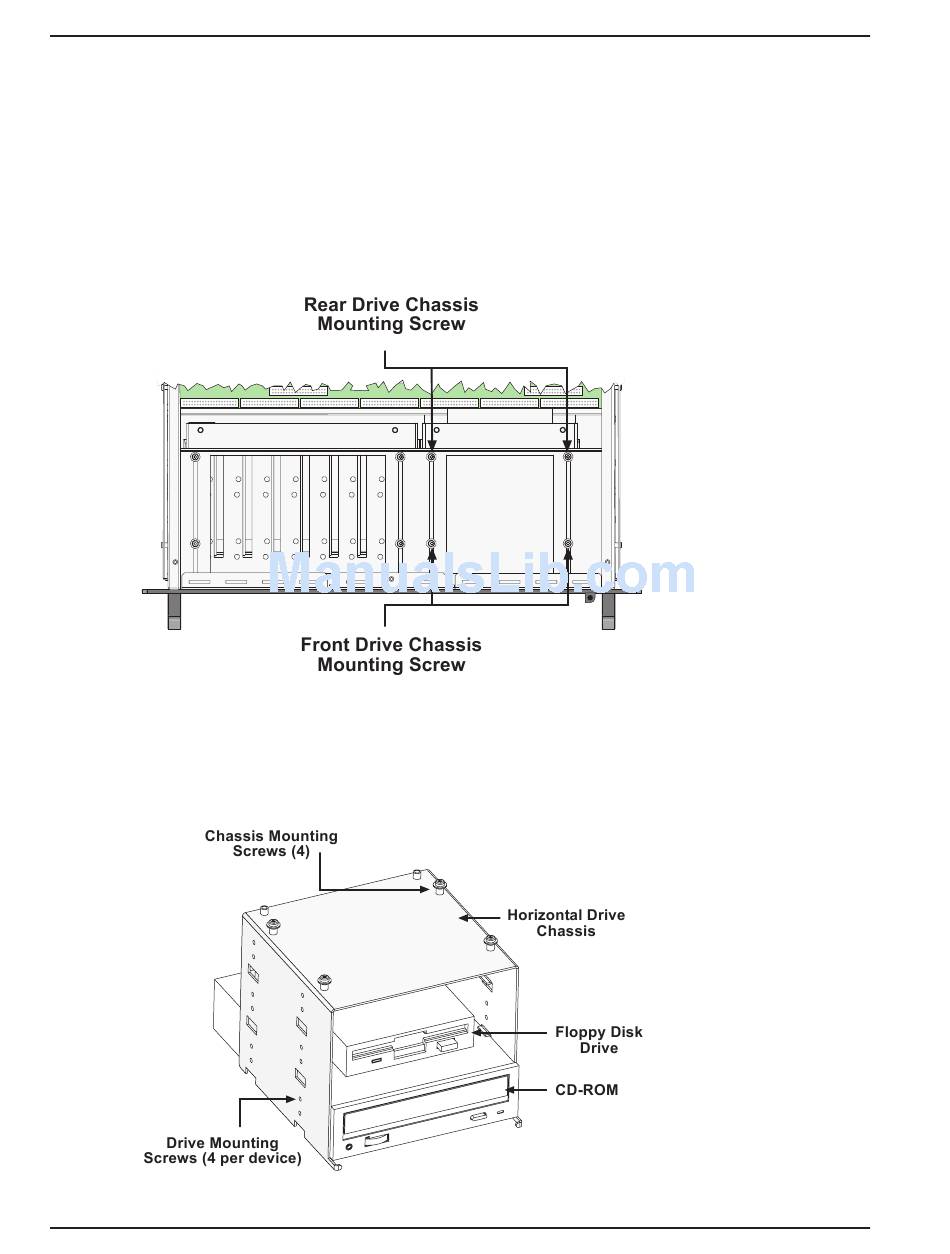

Figure 2-12. Combination Horizontal Chassis Mounting Screws
4
Remove the ribbon (data) and power cables from the installed disk drives.
5
Remove the two rear chassis mounting screws and slide the chassis out the front of the
MultiArray.
Figure 2-13. Combination Horizontal Chassis
22
