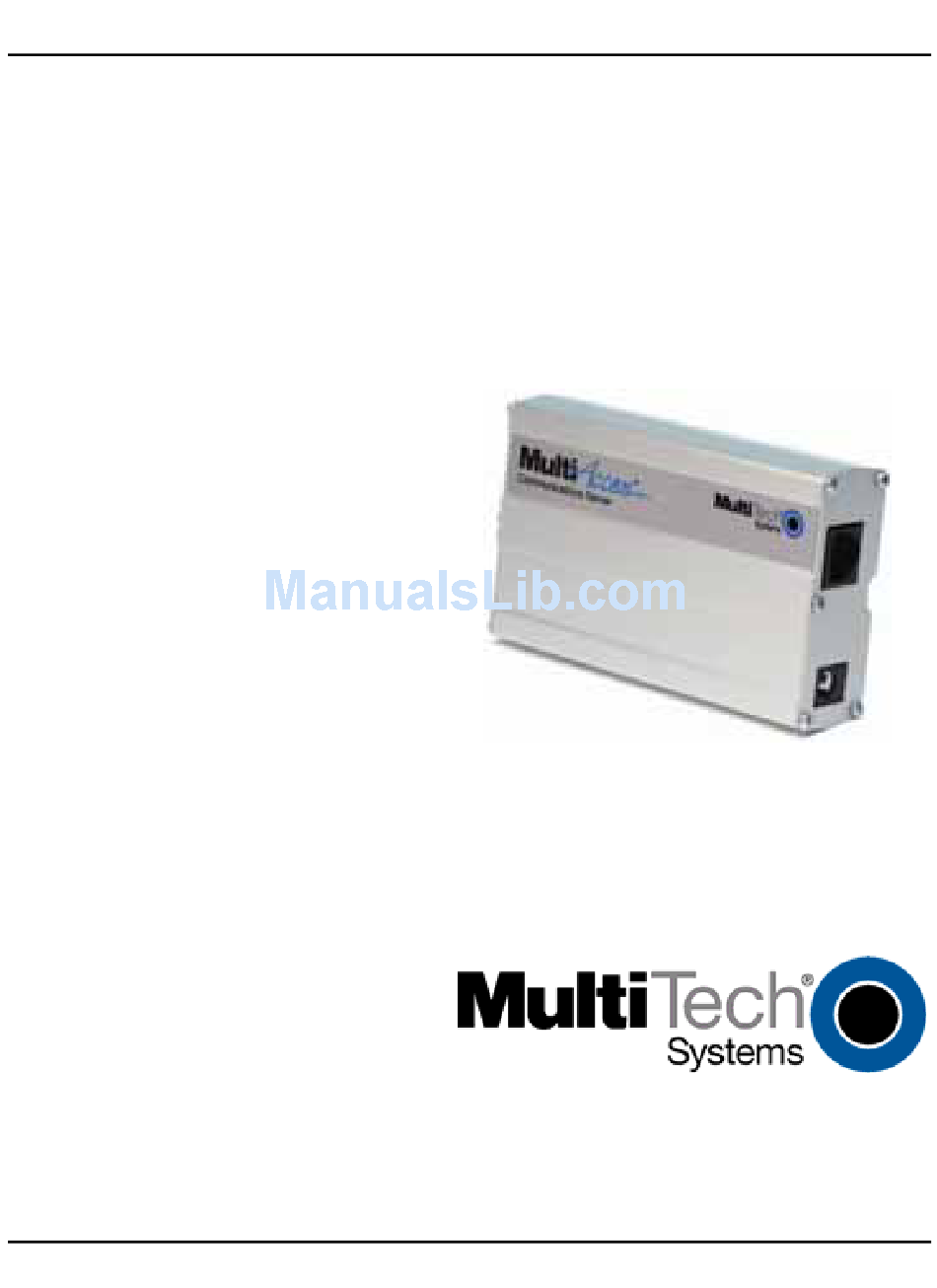

- Page 1 Access Multi ® Analog Communications Server MA100-1M Quick Start Guide...
- Page 2 Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc., to notify any person or organization of such revisions or changes. Check Multi-Tech’s Web site for current versions of our product documentation.
- Page 3 Introduction This guide shows you how to setup your MultiAccess ACS (Analog Communications Server) single-port communications server, MA100-1M. The MA100-1M provides connectivity to the corporate LAN for telecommuters and mobile users, or to remotely installed equipment, via one integrated V.92/56K modem.
-
Page 4: Safety Warnings
• A connection to your Ethernet LAN • A telephony connection • An admin PC (with web browser) to configure the MA100-1M Safety Warnings • Use this product only with UL- and CUL-listed computers. • Never install phone wiring during a lightning storm. - Page 5 Attaching the MultiAccess to a Fixed Location 1. Typically, the MultiAccess is mounted against a flat surface with two mounting screws. Drill the mounting holes at the desired mounting location. The mounting holes must be separated by 4 Slide the mounting bracket into the corresponding slot on the back side of the MultiAccess chassis.
-
Page 6: Installation Process
1M. The DC power transformer is included with your MA100- Caution: Use only the DC power transformer supplied with the MA100-1M. Use of any other transformer voids the warranty and can damage the MA100-1M. 2. After power is applied, there is a 4-second delay before the PWR LED comes on. - Page 7 MA100-1M unit. Caution: Before connecting to the Ethernet Network, make sure that the network to which you are connecting the MA100-1M is not a 192.168.2.x subnet. Because the MA100-1M’s factory default IP address is 192.168.2.1, connecting it to a network that has a different device at that same IP address would cause data interference.
-
Page 8: Setting Admin Pc To Startup Ip Address
3. At the Login screen, enter admin (all lower case) in the User Name field. 4. Enter admin (all lower case) in the Password field. 5. Click the Login button. The Home screen will appear. From this screen, you can access all of the MA100-1M software screens. -
Page 9: Setting Ma100-1M Ip Addresses
1. In the MA100-1M Administration screen, go to the IP Configuration fields. 2. Fill in the IP information that applies to your MA100-1M unit. The fields for “IP Address,” “Subnet Mask,” “Default Gateway” and “Name Server” are required. A “Secondary Name Server”... -
Page 10: Logging In Again
2. In the Time Server window, select from the three time server URLs. The default is time.nist.gov. The Time Server is a substitute for a real-time clock in the MA100-1M. If you would like to add your own time server, you can enter the URL or IP address of your time server in the Add Time Server window. -
Page 11: Setting Up The Mail Server
SMTP Password window. If you enter a password, retype the identical password in the Retype SMTP Password window. Click on Update. At this point the MA100-1M will send the Administrator an email saying that the mail server address has been updated. - Page 12 MultiAccess ACS MultiAccess for dial-out, you will have to select one of the Modem Sharing options and select the Country Code. With any of the Modem Sharing options, the TCP port number used to access the modem is 7000. 1. If you are using your MultiAccess for dial-in PPP access (RAS), click on the Country Code down arrow and choose your country/region.
-
Page 13: Setting Authentication
MultiAccess. If a Radius Server is used for authentication, the the server has to be configured to receive requests form the MA100-1M. For RAS calls, dial-in PPP, a second static IP address is needed in the Remote Host Address field. This address is for the dial-in user, PPP server. - Page 14 MultiAccess ACS Radius Client Setup points to the Radius Server when the Authentication is Radius. Authentication In the Authentication Type, if your database for user credientals resides in the Local User Database on the MultiAccess, then accept the default – local. If your user database resides on the Radius Server outside the MA100-M, then click on the down arrow and chose radius.
-
Page 15: Setting Up Local Users
Click the Update button to save the configuration. Setting Up Local Users The administrator account has both administration of the MA100-1M and dial-in rights. The user accounts only have rights to use the modem. For Local Authentication, go to the Local Users screen. - Page 16 Administator Row: 1. In the “Administrator” row of the Local Users screen, enter the Name and User ID to be used for the MA100-1M administrator (it need not be literally “Administrator”). 2. In the Password window, enter an alphanumeric password.
- Page 17 Users Row: 1. In the next blank Name row, enter the Name and User ID of your local user. 2. In the Password window, enter an alphanumeric password. Passwords can be as long as 40 characters, and are case- sensitive. 3.
- Page 18 Patents This device is covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859;...
