MultiArray User Guide
Disk Drive Installation
Installing Drives in the 8-Bay Disk Drive Chassis
1
Open the front door on the rack.
Note: Although you can remove the front door for installation purposes, you must replace the
door prior to applying power to the unit.
2
Remove the two top front drive chassis mounting screws. See Figure 2-7.
3
Loosen, but do not remove, the two rear drive chassis mounting screws. See Figure 2-7.

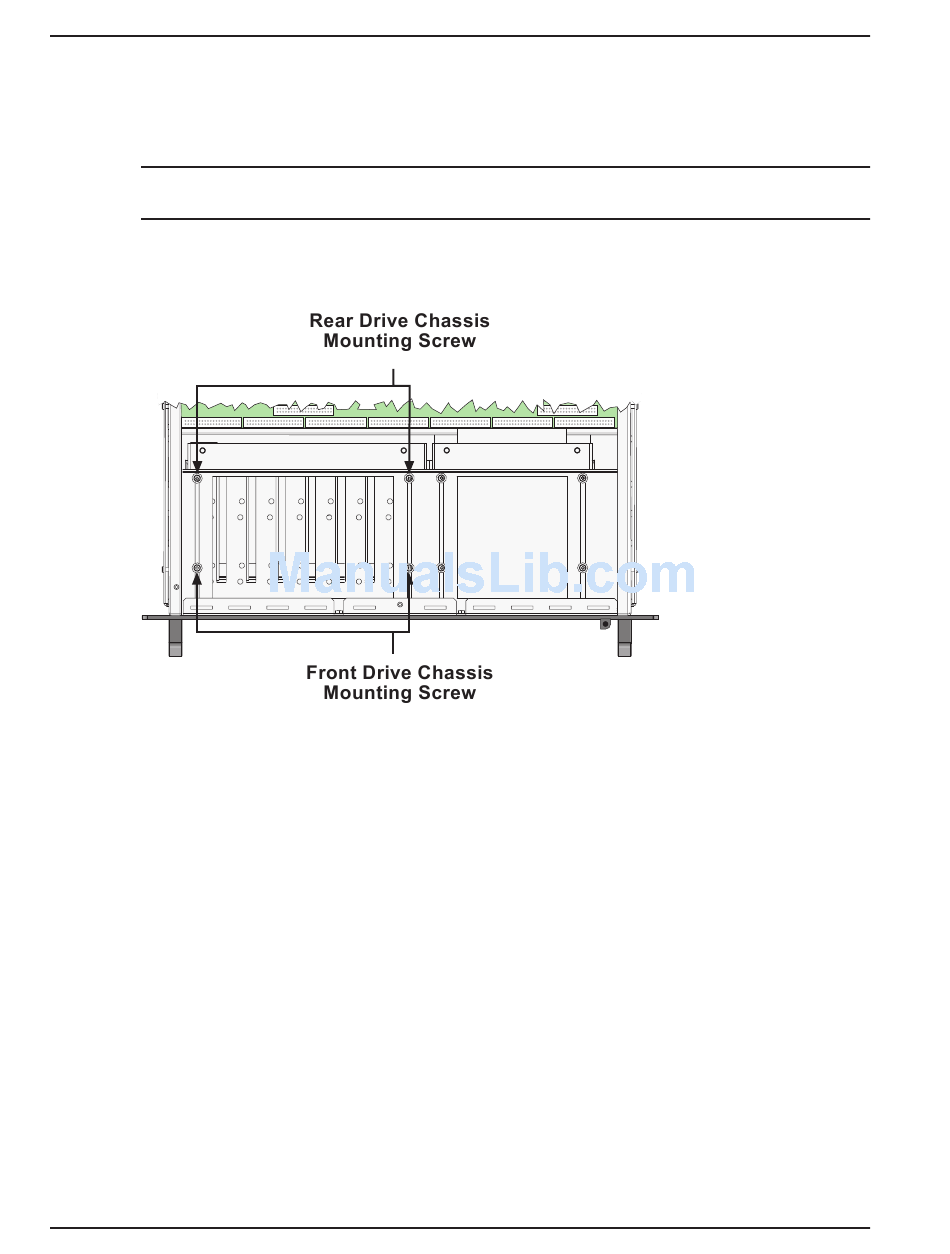

Figure 2-7. 8-Bay Drive Chassis Mounting Screws
4
Slide the chassis out the front of the MultiArray to the end of the slide travel.
5
If any disk drives are installed in the 8-bay disk drive chassis, remove the ribbon (data)
and power cables from the disk drives.
6
Remove the two rear chassis mounting screws and slide the chassis out the front of the
MultiArray.
