RainPoint TTV203WRF Instruction Manual

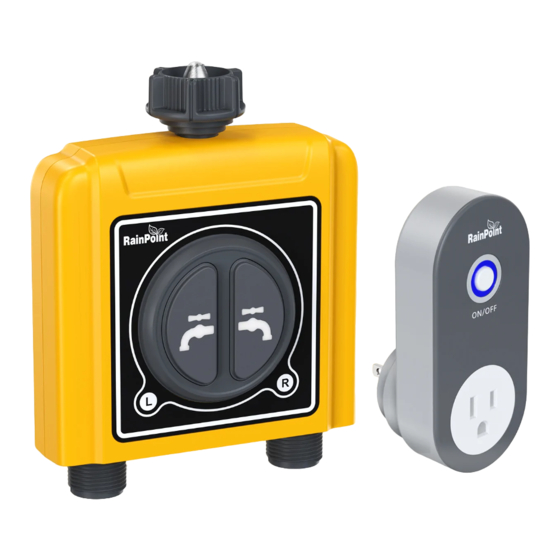

2 zone wifi water timer with wifi hub
Hide thumbs Also See for TTV203WRF:
Table of Contents

Advertisement

Quick Links

®

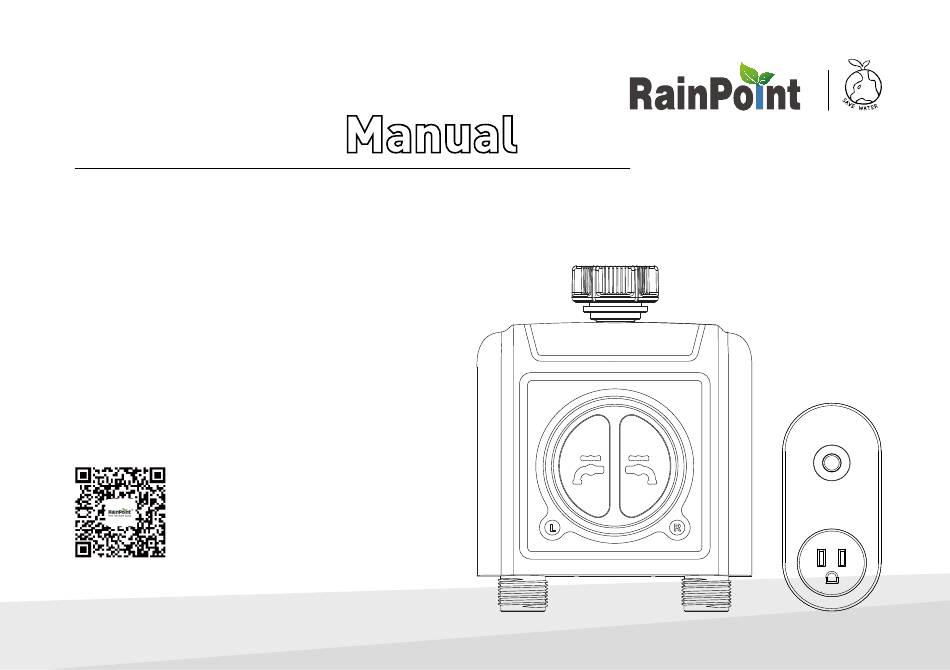

Instruction
2 Zone WiFi Water Timer with WiFi Hub
Model: TTV203WRF + TWG004WRF
Customer Support:
Web: www.rainpointonline.com
Email: service@rainpointus.com
WhatsApp: +1 626-780-5952
US Free Hotline(English):
+1 833-381-5659(MON-FRI 9�30 AM-5�30 PM PST)
UK Free Hotline(English Deutsch):
+44 800-808-5337(MON-FRI 9�00 AM-5�00 PM CET)
(Please scan the QR code
to get the fast support)
*KEEP THIS MANUAL FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTV203WRF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RainPoint TTV203WRF

Summary of Contents for RainPoint TTV203WRF

  • Page 1 ® Instruction 2 Zone WiFi Water Timer with WiFi Hub Model: TTV203WRF + TWG004WRF Customer Support: Web: www.rainpointonline.com Email: service@rainpointus.com WhatsApp: +1 626-780-5952 US Free Hotline(English): +1 833-381-5659(MON-FRI 9�30 AM-5�30 PM PST) UK Free Hotline(English Deutsch): +44 800-808-5337(MON-FRI 9�00 AM-5�00 PM CET)
  • Page 2 WELCOME TO RAINPOINT RainPoint is pleased to present the 2 Zone WiFi Water Timer with WiFi Hub (Model: TTV203WRF + TWG004WRF)–a smart sub-zone watering timer system for residential applications. Designed with the needs of the customer in mind, the model offers 2 high flow valves to water separate areas, simplified APP programming and an impressive range of features typically found in WiFi water timers costing twice as much.

  • Page 3: Table Of Contents

    WIFI SOCKET Manual Power ON/OFF CONTENTS IN THE BOX Power ON/OFF By Schedule PRODUCTS OVERVIEW SMART AUTOMATION TTV203WRF 2 Zone WiFi Water Timer Automation & Tap-to-Run TWG004WRF WiFi Hub How to set the automatic rain delay? FEATURES OVERVIEW HOME MANAGEMENT...

  • Page 4: Introduction

    INTRODUCTION CONTENTS IN THE BOX A. 1 x TTV203WRF 2 Zone WiFi Water Timer B. 1 x TWG004WRF WiFi Hub C. 1 x Instruction Manual D. 1 x Quick Setup Guide FCC Notice: FCC STATEMENT: (FCC ID: 2AWDBTTV203WRF, 2AWDBTWG004WRF) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Products Overview

    PRODUCTS OVERVIEW TTV203WRF 2 Zone WiFi Water Timer Water Inlet Left Zone Button Right Zone Button Right Zone Watering Indicator Battery Compartment Left Zone Watering Indicator Right Water Outlet Left Water Outlet Range Between WiFi Hub and Timer: 160 ft in the open area without interference Working Water Pressure : 0.5 bar to 8 bar(7.25-116.03PSI)

  • Page 6: Twg004Wrf Wifi Hub

    TWG004WRF WiFi Hub Hub Button Power Indicator WiFi Socket with Power Power Plug Range Between WiFi Hub and Router: 160 ft in the open area without interference Temperature Operating Range: 3°C - 40°C (37°F-104°F ) WiFi Frequency Band: 2.4Ghz Only Input: 100-240V ~ 50Hz 16A For Indoor Use Only...

  • Page 7: Features Overview

    12) One WiFi hub can pair with maximum 4 WiFi water timers. One WiFi water timer can pair with 2 WiFi soil sensor. * Only compatible with Rainpoint TCS005FRF Wi-Fi soil sensor (not included). * Only applicable to 2.4Ghz WiFi...

  • Page 8: Installation

    STEP 1. INSTALL APP ON YOUR PHONE 1. Download the RainPoint App Rainpoint Search for “RainPoint” on Google Play or App Store or scan the QR code to download the Rainpoint APP. 2. Register your RainPoint account Open your RainPoint APP, select Set Up Follow the prompts to register a RainPoint account with your email or mobile number.

  • Page 9: Step 2. Connect The Wifi Hub

    1. Plug your WiFi Hub to an indoor power source near your WiFi router and the outdoor outdoor location of your timer. 2. Open RainPoint App and tap Add device or to add a new device. 3. Tap Smart Irrigation and Add Manually , then select Irrigation Hub 4.

  • Page 10: Step 3. Connect The Wifi Timer

    5. Press and hold the WiFi hub button until the power indicator blink rapidly (2 times per second). Then select "confirm indicator rapidly blink" and tap Next. The APP will search and pair your WiFi hub automatically. Note: If the indicator doesn’t blink rapidly (2 times per second), please tap “Resetting Devices” and follow the prompts (Or refer to the “RESET THE DEVICE”...
  • Page 11 5. After the connection is successful, the color icons of WiFi timer and WiFi socket will be displayed on the APP home screen. Tips: If necessary, three additional WiFi timers can be added to the RainPoint APP through a WiFi hub. A separate WiFi timer is available on Amazon. - 11 -...

  • Page 12: Step 4. Install The Wifi Timer

    STEP 4. INSTALL THE WIFI TIMER Timer Inlet 160 feets (No bushes, walls blocking) Timer Outlet 1. Attach the timer inlet to the outdoor faucet/spigot (hand tighten only). From the timer outlet connect a drip irrigation system or a garden hose. WARNING: * The WiFi timer can only be used for cold water.

  • Page 13: Step 5. Test Before Use

    STEP 5. TEST BEFORE USE Congratulations, you have completed the connection and installation of the 2 zone WiFi water timer. Please test whether the internal valve of your water timer is normal before using it. 1. Keep the faucet turned off. 2.

  • Page 14: App Programming

    All Devices Add Devices A check list of all the devices you have You can add multiple RainPoint devices on the connected. Tap to enter the operation page of APP to create a smart home irrigation system. devices you have added to program the operation schedule of the device.

  • Page 15: Zone Wifi Irrigation Timer

    The WiFi water timer has built-in water fow meters, it will display the last water usage on the screen. Soil Temperature & Moisture Paired with the RAINPOINT WiFi soil sensor, it can also display soil temperature and moisture. Note: * WiFi soil sensor is sold separately.

  • Page 16: Manual Watering

    ·How to get third-party control / voice control？ If you have an Amazon Alexa or Google Assistant, please tap the icon “ ” in the upper right corner of the device page, select a third-party voice control device you own, then tap the operation guide, and follow the instructions to connect your WiFi water timer to the voice control device.

  • Page 17: Watering Plan & Manual Rain Delay

    Watering Plan & Manual Rain Delay Zone 1 / Zone 2 Select Zone1 or Zone2 for manual watering. Zone 1 controls the left valve of the timer. Zone 2 controls the right valve of the timer. Watering Day Of The Week Each plan has a specific color punctuation.
  • Page 18 Irrigation Mode (Irrigation by quantity) 3. Tap Irrigation Mode. 4. Use the 24H time switch to toggle between 24hr and AM/PM time. 5. Click to select irrigation on amount. 6. Tap Start time to open the clock and set a start time. 7.Click to select irrigation on amount to set the continuous watering volume (From 1L to 10000L,From 1gallon to 2641 gallons) 8.Select the days to repeat watering every week as needed.
  • Page 19 Mist Mode (Spray by quantity) 3. Tap Mist Mode 4. Use the 24H time switch to toggle between 24hr and AM/PM time. 5. Click to select Mist on amount. 6. Tap Start time to open the clock and set a start time. 7.

  • Page 20: Wifi Soil Sensor & Water Flow Meter

    WiFi Soil Sensor (sold separately, not included) If you have a Rainpoint WiFi soil sensor, you can pair it with your Rainpoint WiFi water timer and WiFi hub. Each zone can be paired with one WiFi soil sensor. And the soil temperature and moisture data monitored by the soil sensor will be displayed on your Rainpoint APP.

  • Page 21: Wifi Socket

    2. Tap the Power to toggle the WiFi socket power on or off. Note: Each RainPoint WiFi hub can be used as a WiFi socket. But only when the WiFi timer is successfully paired with the WiFi hub, the WiFi socket device can be added to the APP.

  • Page 22: Smart Automation

    Automation means the devices can execute automatically according to the set conditions such as the local weather, device status and time. For example, RAINPOINT APP can obtain the weather forecast information of your home location. When you set the conditions for immediately delaying the watering plan when it rains, the timer will automatically execute the watering delay when it rains in your local area.

  • Page 23: How To Set The Automatic Rain Delay

    How to set the automatic rain delay? 1. Tap Smart at the bottom of the APP home screen. 2. Select Automation and tap Create Scene. 3. Set a condition when the weather changes to rain. Note: Please accurately locate the city where your home is located. The APP will automatically obtain weather forecast data based on the city you locate.
  • Page 24 7. Select the trigger condition of your condition to be when all conditions are met or when any one of the conditions is met. If there is only one trigger condition, there is no need to set it here. 8. Check your execution conditions and tasks. 9.
  • Page 25 SMART AUTOMATION Rainpoint supports adding family members and sharing your home device to achieve co-management the home irrigation system with your family. 1. Tap Me at the bottom of the APP home screen. 2. Select Home Management. You can set the current home or create a home or join another home.

  • Page 26: Reset The Device

    RESET THE DEVICE How to reset the WiFi Hub ? Step 1. Press and hold the button. Please don’t release until the end. Step 2. Plug in the hub and wait for the BLUE light on (Still keep holding the button) Step 3.

  • Page 27: Troubleshooting

    This means that pairing has been entered. If your Rainpoint product does not operate properly after trying the troubleshooting steps, please contact us by phone or email : +1-833-3815659 (US Free Hotline) ▏+44-800-808-5337 (UK Free Hotline) ▏service@rainpointus.com...
  • Page 28 The meaning of LED light LED indicator color of TTV203WRF WiFi water timer 1. Power-on reset: The red and white lights flash alternately 4 times when the machine is turned on. 2. Restore factory settings: Press and hold the timer button while turning on the timer, release the button after the red light flashes, and the timer will enter the factory reset state.

  • Page 29: Warranty

    To extend and activate your warranty, please email us with your order ID at service@rainpointus.com and we'll respond within 24 hours. CUSTOMER SUPPORT If you find it difficult to set up and want to watch the setting tutorial video, please subscribe to our channel: RainPoint on YouTube. Please scan the QR code to visit the RainPoint channel on YouTube quickly.
  • Page 30 wifi wifi 2.4Ghz Wifi wifi CLOUD ROUTER EC REP NAME：VIAJE ELECTRONIC COMPANY LIMITED ADDRESS：E588, 13 ADELAIDE ROAD, DUBLIN, D02 P950, IRELAND Email：VIAJEELE@outlook.com - 30 -...
