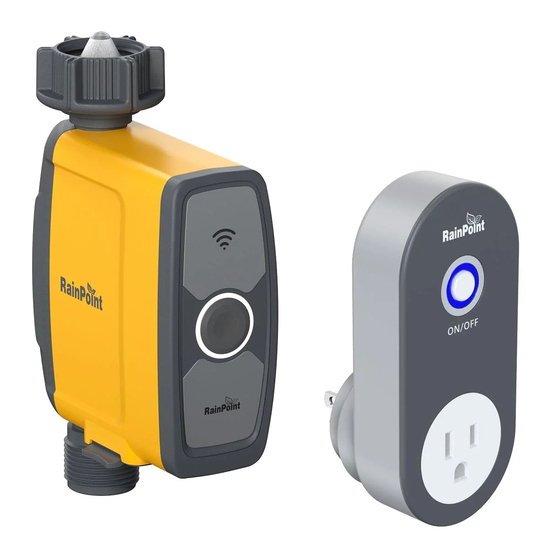

- Page 1 Instruction 1 Zone WiFi Water Timer with WiFi Hub Model: TTV103WRF + TWG004FRF Customer Support US Free Hotline: +1-833-3815659 E-mail: service@rainpointus.com Facebook: @Rainpointglobal RAINPOINT ® www.rainpointus.com *SAVE THIS MANUAL FOR FUTURE REFERENCE.
- Page 2 Thank you for chosing RAINPOINT 1 Zone WiFi Water Timer with WiFi Hub! After using the RainPoint WiFi water timer, you'll find it easier, faster and more convenient than ever before! You are able to schedule, manually operate, auto watering and monitor flow just with your smart phone. When the timer is connected to the hub and your WiFi, it can synchronize the weather forecast from internet to automatic update and adjustment your watering plan.
-
Page 3: Table Of Contents
WIFI SOCKET Manual Power ON/OFF CONTENTS IN THE BOX Power ON/OFF By Schedule PRODUCTS OVERVIEW SMART AUTOMATION TTV103WRF 1 Zone WiFi Water Timer Automation & Tap-to-Run TWG004FRF WiFi Hub How to set the automatic rain delay? FEATURES OVERVIEW HOME MANAGEMENT... -
Page 4: Introduction
INTRODUCTION CONTENTS IN THE BOX A.1 x TTV103WRF 1 Zone WiFi Water Timer B.1 x TWG004FRF WiFi Hub C.1 x Instruction Manual D.1 x Quick Setup Guide FCC Notice: - 01 -... -
Page 5: Products Overview
PRODUCTS OVERVIEW TTV103WRF 1 Zone WiFi Water Timer Inlet Filter Water Inlet Timer Button LED Indicator Battery Compartment Water Outlet Specification For outdoor use with cold water only. Keep away from freezing. In freezing weather, the timer should be placed indoors. -
Page 6: Twg004Frf Wifi Hub
TWG004FRF WiFi Hub Hub Button Power Indicator WiFi Socket with Power Supply Power Plug Specification For indoor use only. Only applicable to 2.4Ghz WiFi. If your router is a dual-band router, please independently enable the 2.4GHz WiFi band and name it differently from the 5GHz WiFi band. - 03 -... -
Page 7: Features Overview
FEATURES OVERVIEW 2.4Ghz WiFi WiFi wifi CLOUD ROUTER * Only compatible with Rainpoint TCS005FRF Wi-Fi soil sensor (not included). * Only applicable to 2.4Ghz WiFi - 04 -... -
Page 8: Installation
STEP 1. INSTALL APP ON YOUR PHONE 1 Download the RainPoint App Rainpoint Search for RainPoint on Google Play or App Store or scan the QR code to download the RainPoint APP. 2 Register your RainPoint account Open your RainPoint APP, select Set Up Follow the prompts to register a RainPoint account with your email or mobile number. -
Page 9: Step 2. Connect The Wifi Hub
STEP 2. CONNECT THE WIFI HUB 1. Plug your WiFi Hub to an indoor power source near your WiFi router and the outdoor location of your timer. 2. Open RainPoint App and tap Add device or to add a new device. -
Page 10: Step 3. Connect The Wifi Timer
5. Confirm the power indicator on your WiFi hub blink rapidly (2 times per second). Then the APP will search and pair your WiFi Hub automatically. Tips: If the indicator doesn’t blink rapidly (2 times per second), please tap Resetting Devices and follow the prompts (Or refer to the RESET THE DEVICE section of this manual) to reset the WiFi hub and make the hub indicator blink rapidly. - Page 11 2. Return to the APP home screen, and tap to add the WiFi timer. 3. Tap Smart Irrigation and Add Manually , then select WIFI Water Timer 4. Press and hold the button on the timer until the LED indicator blink rapidly (2 times per second). Then select confirm indicatorrapidly blink and tap Next.
-
Page 12: Step 4. Install The Wifi Timer
WiFi socket will be displayed on the APP home screen. Tips: If necessary, three additional WiFi timers can be added to the RainPoint APP through a WiFi hub. A separate WiFi timer is available on Amazon. STEP 4. INSTALL THE WIFI TIMER Inlet... -
Page 13: Step 5. Test Before Use
Warnning * The WiFi timer can only be used for cold water. * The WiFi timer uses a 433mHz RF connection to communicate with the WiFi Hub, and must be within a 160ft range, line of sight, of the WiFi Hub. If there are walls, iron gates or bushes blocking, please shorten the distance between them to better receive the signal. -
Page 14: App Programming
All Devices Add Devices A check list of all the devices you have You can add multiple RainPoint connected. Tap to enter the operation devices on the APP to create a smart page of devices you have added to home irrigation system. -
Page 15: Wifi Water Timer
Soil Temperature & Moisture Paired with the RAINPOINT WiFi soil sensor (sold separately), it can also display soil temperature and moisture. If the soil moisture is higher than the water prohibition level set on the soil sensor, the APP background color will change to red. -
Page 16: Manual Watering
How to get third-party control / voice control？ If you have an Amazon Alexa or Google Assistant, please tap the icon in the upper right corner of the device page, select a third-party voice control device you own, then tap the operation guide, and follow the instructions to connect your WiFi water timer to the voice control device. -
Page 17: Watering Plan & Manual Rain Delay
Watering Plan & Manual Rain Delay Watering Day Of The Week Each plan has a specific color punctuation. The punctuation in a specific color on the day of the week indicates that there is a corresponding watering plan for that day. Plan A / Plan B / Plan C The WiFi timer can set 3 different watering plans every day. - Page 18 Irrigation Mode 3. Tap Irrigation Mode. 4. Use the 24H time switch to toggle between 24hr and AM/PM time. 5. Tap Start time to open the clock and set a start time. 6. Tap Duration(H:M) to set a watering duration (from 0 hour 0 minute to 11 hours to 59 minutes).
-
Page 19: Wifi Soil Sensor & Water Flow Meter
WiFi Soil Sensor (sold separately, not included) If you have a Rainpoint WiFi soil sensor, you can pair it with your Rainpoint WiFi water timer and WiFi hub. One WiFi timer can pair with one WiFi soil sensor. And the soil temperature and moisture data monitored by the soil sensor will be displayed on your Rainpoint APP. -
Page 20: Wifi Socket
2. Tap the Power to toggle the WiFi socket power on or off Note: Each RainPoint WiFi hub can be used as a WiFi socket. But only when the WiFi timer is successfully paired with the WiFi hub, the WiFi socket device can be added to the APP. -
Page 21: Smart Automation
For example, RAINPOINT APP can obtain the weather forecast information of your home location. When you set the conditions for immediately delaying the watering plan when it rains, the timer will automatically execute the watering delay when it rains in your local area. -
Page 22: How To Set The Automatic Rain Delay
How to set the automatic rain delay? 1. Tap Smart at the bottom of the APP home screen. 2. Select Automation and tap Create Scene. 3. Set a condition when the weather changes to rain. Note: Please accurately locate the city where your home is located. The APP will automatically obtain weather forecast data based on the city you locate. - Page 23 7. Select the trigger condition of your condition to be when all conditions are met or when any one of the conditions is met. If there is only one trigger condition, there is no need to set it here. 8. Check your execution conditions and tasks. 9.
-
Page 24: Home Management
HOME MANAGEMENT Rainpoint supports adding family members and sharing your home device to achieve co-management the home irrigation system with your family. 1. Tap Me at the bottom of the APP home screen. 2. Select Home Management. You can set the current home or create a home or join another home. -
Page 25: Reset The Device
RESET THE DEVICE How to reset the WiFi Hub ? Step 1. Power OFF or Remove the WiFi Hub from the power source. Step 2. After 10 seconds, power on or plug the WiFi hub to the power source. Step 3. Press and hold the middle button on the WiFi hub without releasing the button until the indicator light quickly flashed (2 times per second), then the WiFi hub is restored to pair mode. -
Page 26: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Possible Solution Can't turn on /off the valve Low battery Replace fresh batteries Impurities in water inlet Regularly clean the filter port of impurities Unstable network or delayed to avoid disruptions in use. response. Wait a while and try again. Inaccurate statistics due to tilted The water timer needs to be installed Inaccurate water flow meter... - Page 27 Check that the irrigation duration/period set with parameters. is not set with parameters.(Note 12H/24H) If your Rainpoint product does not operate properly after trying the troubleshooting steps, please contact us by phone or email : 1-833-3815659 (US Hotline) | service@rainpointus.com - 24 -...
- Page 28 The meaning of LED light LED indicator color of TTV103WRF WiFi water timer 1. Power-on reset: The red and white lights flash alternately 4 times when the machine is turned on. 2. Restore factory settings: Press and hold the timer button while turning on the timer, release the button after the red light flashes, and the timer will enter the factory reset state.
-
Page 29: Warranty
If the app and the user manual don’t have what you’re looking for, and you need some help, please prepare the Model NO. and LOT NO. of your device and contact us before returning the Rainpoint to the store. US Free Hotline: 1-833-3815659 Email: service@rainpointus.com...
