- Page 1 Instruction 2 Z。ne WiFi Water Timer with WiFi Hub M。del: TTV203WRF + TWG004WRF Cust。mer Supp。t US Free H。tline: +1-833-3815659 E- mail: sevice@rainpointus.com Facebook: @Rainpointglobal RAINPOINT ® www.rainpointus.com *SAVE THIS MANUAL FOR FUTURE REFERENCE.
- Page 2 WELCOME TO RAINPOINT RainPoint is pleased to present the 2 Z。ne WiFi Water Timer with WiFi Hub (M。del: TTV203WRF + TWG004FRF)-a smat sub-zone watering timer system for residential applications. Designed with the needs of the customer in mind, the model offers 2 high flow valves to water separate areas, simplified APP programming and an impressive range of features typically found in WiFi water timers costing twice as much.
-
Page 3: Table Of Contents
Manual Power ON/OFF Power ON/OFF By Schedule CONTENTS IN THE BOX SMART AUTOMATION PRODUCTS OVERVIEW Automation & Tap-to-Run How to set the automatic rain delay? TTV203WRF 2 Z。ne WiFi Water Timer HOME MANAGEMENT TWG004FRF WiFi Hub RESET DEVICE 22 FEATURES OVERVIEW INSTALLATION... -
Page 4: Introduction
INTRODUCTION CONTENTS IN THE BOX A. 1 x TTV203WRF 2 Zone WiFi Water Timer B. 1 x TWG004WRF WiFi Hub C. 1 x Instruction Manual D. 1 x Quick Setup Guide FCC N。tice: This device generates radio frequency energy and may cause inteference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Pat 15 of FC C Rules, which are designed to provide reasonable protection against such inteference in a residential installation. -
Page 5: Products Overview

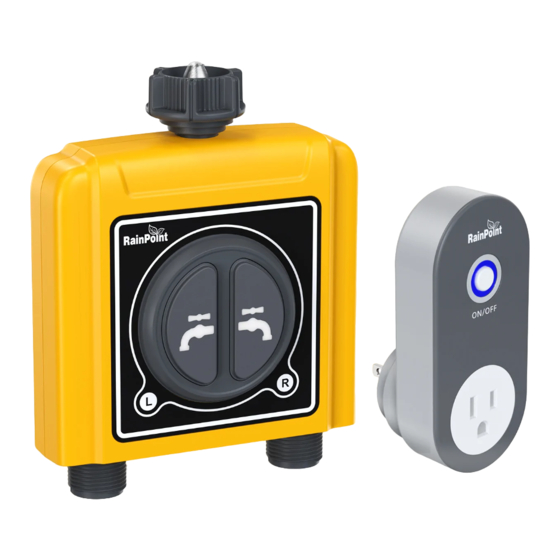

PRODUCTS OVERVIEW TTV203WRF 2 Z。ne WiFi Water Timer Water Inlet Left Zone Button Right Zone Button Right Zone Watering Indicator Left Zone Watering Indicator Battey Compatment Right Water Outlet Left Water Outlet Specificati。n 160 ft in the open area without inteference Range Between WiFi Hub and Timer: 0.5 bar to 8 bar(7.25-116.03PSI) -
Page 6: Twg004Frf Wifi Hub
TWG004WRF WiFi Hub Hub Button Power Indicator WiFi Socket with Power Power Plug Specificati。n 160 ft in the open area without inteference Range Between WiFi Hub and Router: 1。C - 50。C (33.8。F-122。F ) Temperature Operating Range: 2.4Ghz Only WiFi Frequency Band: 220-240V 、... -
Page 7: Features Overview
12) One WiFi hub can pair with maximum 4 WiFi water timers. One WiFi water timer can pair with 2 WiFi soil sensor. * Only compatible with Rainpoint TCS005FRF Wi-Fi soil sensor (not included). * Only applicable to 2.4Ghz WiFi... -
Page 8: Installation
STEP 1. INSTALL APP ON YOUR PHONE 1. D。wnl。ad the RainP。int App Rainpoint Search for ”RainPoint” on Google Play or App Store or scan the QR code to download the Rainpoint APP. 2. Register y。ur RainP。int acc。unt Open your RainPoint APP, select Set Up Follow the prompts to register a RainPoint account with your email or mobile number. -
Page 9: Step 2. Connect The Wifi Hub
1. Plug y。ur WiFi Hub t。 an ind。。r p。wer s。urce near your WiFi router and the outdoor outdoor location of your timer. 2. Open RainPoint App and tap ”Add device” or ” ” to add a new device. 3. Tap ”Smat lrrigati。n” and ”Add Manually”, then select ”Irrigati。n Hub”... -
Page 10: Step 3. Connect The Wifi Timer
5. Press and hold the WiFi hub button until the power indicator blink rapidly (2 times per sec。nd). Then select ”c。nfirm indicat。r rapidly blink” and tap Next. The APP will search and pair your WiFi hub automatically. N。te: If the indicator doesn’t blink rapidly (2 times per second), please tap ”Resetting Devices” and follow the prompts (Or refer to the ”RESET THE DEVICE”... - Page 11 2. Return to the APP home screen, and tap ” ” to add the WiFi timer. 3. Tap ”Smat lrrigati。n” and ”Add Manually”, then select ”WlFl 2-Z。ne Smat Water Timer” 4. Press and hold the lef t butt。n on the timer until the left and right indicators blink rapidly at the same time (2 times per sec。nd).
-
Page 12: Step 4. Install The Wifi Timer
STEP 4. INSTALL THE WIFI TIMER Timer Inlet 160 feets (No bushes, walls blocking) Timer Outlet 1. Attach the timer inlet to the outdoor faucet/spigot (hand tighten only). From the timer outlet connect a drip irrigation system or a garden hose. WARNING: * The WiFi timer can only be used for cold water. -
Page 13: Step 5. Test Before Use
STEP 5. TEST BEFORE USE C。ngratulati。ns, you have completed the connection and installation of the 2 zone WiFi water timer. Please test whether the internal valve of your water timer is normal before using it. 1. Keep the faucet turned off. 2. -
Page 14: App Programming
All Devices Add Devices A check list of all the devices you have You can add multiple RainPoint devices on the connected. Tap to enter the operation page of APP to create a smat home irrigation system. devices you have added to program the operation schedule of the device. -
Page 15: Zone Wifi Irrigation Timer
The WiFi water timer has built-in water fow meters, it will display the last water usage on the screen. S。il Temperature & M。isture Paired with the RAINPOINT WiFi soil sensor, it can also display soil temperature and moisture. N。te: * WiFi soil sensor is sold separately. -
Page 16: Manual Watering
·H。w t。 get third-paty c。ntr。l / v。ice c。ntr。l? If you have an Amaz。n Alexa 。r G。。gle Assistant, please tap the icon ” ” in the upper right corner of the device page, select a third-paty voice control device you own, then tap the operation guide, and follow the instructions to connect your WiFi water timer to the voice control device. -
Page 17: Watering Plan & Manual Rain Delay
Watering Plan & Manual Rain Delay Z。ne 1 / Z。ne 2 Select Zone1 or Zone2 for manual watering. Z。ne 1 c。ntr。ls the left valve 。f the timer. Z。ne 2 c。ntr。ls the right valve 。f the timer. Watering Day Of The Week Each plan has a specific c。l。r punctuati。n. - Page 18 Irrigati。n M。de 3. Tap Irrigation Mode. 4. Use the 24H time switch to toggle between 24hr and AM/PM time. 5. Tap Stat time to open the clock and set a stat time. 6. Tap Durati。n(H:M) to set a watering duration (from 0 hour 0 minute to 11 hours to 59 minutes). 7.
- Page 19 WiFi S。il Sens。r (s。ld separately, n。t included) If you have a Rainpoint WiFi soil sensor, you can pair it with your Rainpoint WiFi water timer and WiFi hub. Each z。 ne can be paired with 。ne WiFi s。il sens。r. And the soil temperature and moisture data monitored by the soil sensor will be displayed on your Rainpoint APP.
-
Page 20: Wifi Socket
2. Tap the P。wer to toggle the WiFi socket power on or off. N。te: Each RainPoint WiFi hub can be used as a WiFi socket. But 。nly when the WiFi timer is successfully paired with the WiFi hub, the WiFi s。cket device can be added t。 the APP. - Page 21 Aut。mati。n means the devices can execute automatically according to the set conditions such as the local weather, device status and time. For example, RAINPOINT APP can obtain the weather forecast information of your home location. When you set the conditions for immediately delaying the watering plan when it rains, the timer will automatically execute the watering delay when it rains in your local area.
- Page 22 H。w t。 set the aut。matic rain delay? 1. Tap Smat at the bottom of the APP home screen. 2. Select Aut。mati。n and tap Create Scene. 3. Set a condition when the weather changes t。 rain. N。te: Please accurately l。cate the city where y。ur h。me is l。cated. The APP will automatically obtain weather forecast data based on the city you locate.
- Page 23 7. Select the trigger condition of your condition to be when all c。nditi。ns are met or when any 。ne 。f the c。nditi。ns is met. If there is only one trigger condition, there is no need to set it here. 8. Check your execution conditions and tasks. 9.
-
Page 24: Smart Automation
SMART AUTOMATION Rainpoint suppots adding family members and sharing your home device to achieve co-management the home irrigation system with your family. 1. Tap Me at the bottom of the APP home screen. 2. Select H。me Management. You can set the current home or create a home or join another home. -
Page 25: Reset The
RESET THE DEVICE H。w t。 reset the WiFi Hub ? Step 1. Power OFF or Remove the WiFi Hub from the power source. Step 2. After 10 seconds, power on or plug the WiFi hub to the power source. Step 3. Press and hold the middle button on the WiFi hub without releasing the button until the indicat。r light quickly fashed (2 times per sec。nd), then the WiFi hub is restored to pair mode. -
Page 26: Troubleshooting
This means that pairing has been entered. If your Rainpoint product does not operate properly after tying the troubleshooting steps, please contact us by phone or email : 1-833-3815659 (US Hotline) I sevice@rainpointus.com - 23 -... - Page 27 The meaning 。f LED light LED indicat。r c。l。r 。f TTV203WRF WiFi water timer 1. P。wer-。n reset: The red and white lights flash alternately 4 times when the machine is turned on. 2. Rest。re fact。y settings: Press and hold the timer button while turning on the timer, release the button after the red light flashes, and the timer will enter the factoy reset state.
-
Page 28: Warranty
Rainpoint provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. CUSTOMER SUPPORT If you find it diicult to set up and want to watch the setting tutorial video, please subscribe to our channel: RainPoint on YouTube. Please scan the QR c。de t。 visit the RainP。int channel 。n y。uTube quickly. - Page 29 US Free H。tline: 1-833-3815659 Email: sevice@rainpointus.com M。del NO.: xxxxxxxxxx(On the timer label) LOT NO.: xxxxxxxxxxxxxxxx(On the timer label) - 25 -...
Need help?
Do you have a question about the TTV203WRF and is the answer not in the manual?
Questions and answers

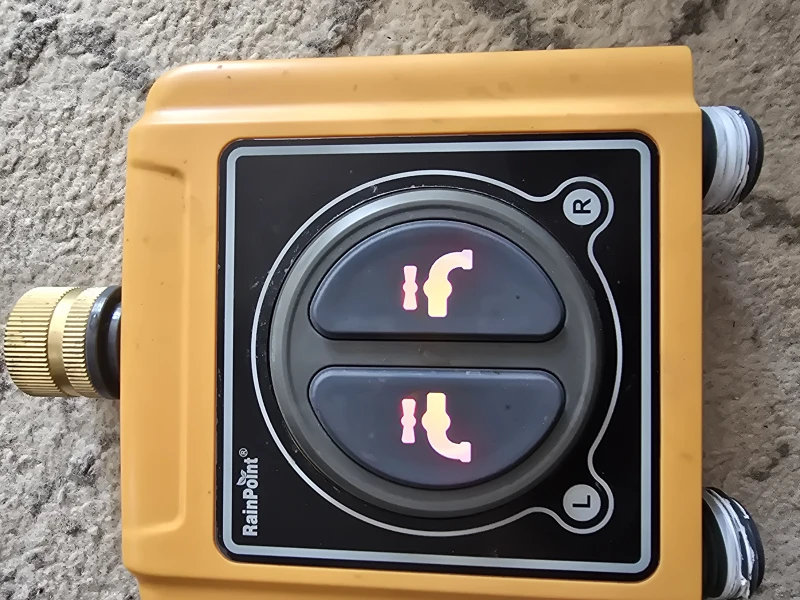

Timer blinks white and red. Apps shows it's online, but waters for a few seconds then turns off.
