PROAIM P-GDTR-01 Assembly Manual

Gladiator ergonomic body support camera rig

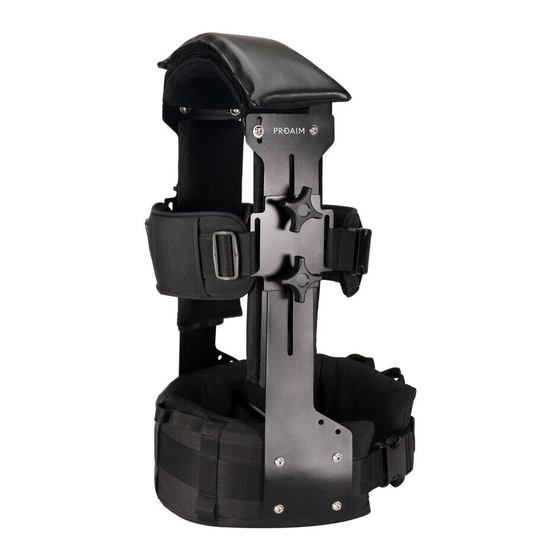

Gladiator Ergonomic Body Support Camera Rig

(P-GDTR-01)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

Removable

Non-Skid Pad

Quick height

Washable Pads

Adjustment

Knobs

Wider Back Support

Accessory Loops

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the P-GDTR-01 and is the answer not in the manual?

Page 1 Gladiator Ergonomic Body Support Camera Rig (P-GDTR-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Gladiator Rig Setup  To adjust the shoulder pad position, loosen the top front & back screws using an Allen key and adjust the shoulder pad as required. Note: You can move the screws up and down by loosening them. Moving the screw up helps you extend the shoulder post upwards.
Page 3 Gladiator Rig Left shoulder Setup Note: If you don't interchange the shoulder support plate of the gladiator rig and wear it on the left shoulder, the gladiator jacket will not adjust on your body, and the pad will go to the back wrong side.
Page 4 ARRI, Red or Black Magic Cameras. YOUR PROAIM GLADIATOR BODY SUPPORT CAMERA RIG ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
Page 5 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
