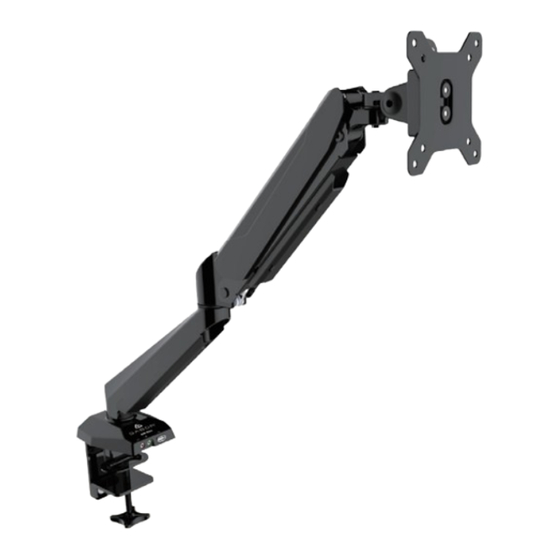

  • Page 2 Thank you for choosing Gabor. The Gabor Single-Arm Desktop Mount is a sturdy accessory that’s capable of securely supporting monitors from 15–27 inches. The rugged aluminum build and durable gas spring mechanism will hold monitors up to 17.6 pounds. The mount consists of two articulating halves that give you maximum control over swivel, tilt, rotation, and height for precise monitor placement.
  • Page 3 Welcome...
  • Page 4 OVERVIEW Quick release Tilt / swivel adjustment screws VESA mount Tension adjustment screw Cable guides Audio in and out jacks USB 3.0 port Clamp mount Clamp Clamp screws (×2) Clamp locking knob Overview...
  • Page 5 ALSO INCLUDED Supplied Parts & Hardware A M4 × 12 screws D 4 mm hex key G Spacers Desk plate B M4 x 30 screws E M8 × 12 hex screws C M6 × 12 hex screws F 5 mm hex key Parts ×4 ×4...
  • Page 6: Product Specifications

    22.8 in. (58 cm) ±90° PRODUCT SPECIFICATIONS Monitor display size: 15–27 in. (38.1–68.6 cm) Maximum load capacity: 17.6 lb. (8 kg) Maximum desktop thickness: 3.5 in. (9 cm) ±180° +90°/-85° VESA standards: 75 × 75, 100 × 100 Tilt: -90°/+85° Swivel: 180°...
  • Page 7: Safety Warnings

    SAFETY WARNINGS Please read and follow the instructions, and Do not exceed the maximum load capacity. keep this manual in a safe place. Do not install this product on an unsteady Clean this product with only a soft, dry cloth. structure or one that is prone to vibration, has a chance of being impacted, or is susceptible to other movements.
  • Page 8 ASSEMBLY INSTRUCTIONS 1. Attach the desk clamp 2. Align the desk plate with 3. Attach the clamp to the mount to the base with the provided holes, and clamp mount with the the M6 × 12 hex screws. press it into place over M8 ×...
  • Page 9 Important! If installing the 4. Tighten the clamp with Make sure the desktop desktop mount in a cubicle the locking knob. For the mount doesn’t wobble or other space with limited most stability, the clamp or shift and is securely clearance, slide the clamp should be parallel to the clamped to the desk...
  • Page 10: Attaching The Monitor

    ATTACHING THE MONITOR Flush Installation 2. Align the holes in the 3. Insert the four M4 × 12 VESA mount with the screws (the shorter of 1. Carefully place your corresponding mounting the Phillips screws) into monitor facedown on a holes in your monitor.
  • Page 11 Recessed Installation 2. Align the spacers with the 4. Insert the four M4 × 30 screws (the longer of the mounting holes in your If the back of your monitor monitor. Phillips screws) into the has a recessed area for the VESA mount, and use a VESA mount, follow these 3.
  • Page 12: Mounting The Monitor

    MOUNTING THE MONITOR Once attached to the monitor, slide the VESA mount into the quick release until it locks into place. To remove the monitor, pull the locking tab while lifting the monitor out of the quick release. Mounting the Monitor...
  • Page 13 ADJUSTING TENSION AND ARTICULATION Important! The arm tension Arm Tension • For heavier monitors, is preset for lighter monitors. rotate the screw To support your monitor’s To avoid damage, do not counterclockwise to weight, you can adjust the continue to loosen the screw increase tension.
  • Page 14 Monitor Swivel and Tilt If you want the monitor Tilt to swivel and tilt more Two adjustment screws freely, use the 5 mm hex at the top of the mounting key to loosen the screws arm regulate the monitor’s (counterclockwise). (vertical) tilt and (horizontal) swivel action.
  • Page 15 ATTACHING THE CABLES TO YOUR COMPUTER The Single-Arm Desktop 1. Connect the USB plug to Mount offers USB and an available USB port on audio connectivity with your your computer or a USB computer, and it gives you hub. a convenient USB 3.0 and 2.
  • Page 16: Cable Organization

    CABLE ORGANIZATION The desktop mount comes 2. Place the monitor cable 4. Run the cable inside the with cable guides to organize inside the guide, and snap guide. Then replace the the cables from your monitor it back into place. guide and screw it in until and prevent clutter.
  • Page 17: Troubleshooting

    TROUBLESHOOTING The desk is too thick for If your desktop is thicker than 3.5 in. (9 cm), follow these steps: the clamp. 1. Remove the clamp from the clamp mount. 2. Completely remove the clamp screw and attachment. 3. Turn the clamp upside down, and reattach the clamp screw and attachment.
  • Page 18: Customer Support

    CUSTOMER SUPPORT ONE-YEAR LIMITED WARRANTY: This Gabor product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year For more information or from the original purchase date or thirty (30) days after replacement, whichever occurs later.
