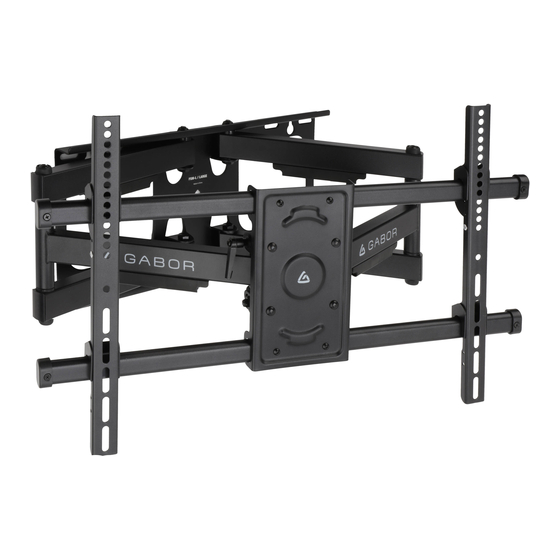

- Page 1 FSM-L AND FSM-X / FULL SWING MOUNT User Manual for Large and Extra-Large Flat-Panel Displays...
- Page 2 Thank you for choosing Gabor. This Gabor Full-Swing Wall Mount offers flexible mounting and customizable viewing angles for wall-mounted TVs and monitors. It accommodates large and extra-large flat-panel displays with screen sizes measuring 40 to 90 inches. The sturdy steel construction supports a maximum weight of 143 to 165 pounds.
-
Page 3: Safety Warnings
• This product may contain small parts which can possibly pose a professional or installation contractor; Gabor takes no responsibility choking hazard; keep out of reach of children and pets. for any product damage or personal injury resulting from mishandling, incorrect mounting, faulty assembly, or improper use of this product. -
Page 4: Product Specifications
2.7 to 25 in. (6.9 to 63.5 cm) FSM-L: 143 lb. (65 kg) FSM-X: 165 lb. (74.8 kg) Recommended Screen Sizes FSM-L: 40 to 70 in. (101.6 177.8 cm) Material FSM-X: 60 to 90 in. (152.4 to 228.6 cm) Steel... - Page 5 Overview Wall bracket Display brackets Required Tools Drill Phillips screwdriver Hammer Stud finder M6,M8 Tape measure 1/4 in. (6 mm) M5 × 14 mm screws M6 × 14 mm screws M6 × 30 mm screws M8 × 30 mm screws M8 ×...
- Page 6 Display/TV Placement Before installing the Gabor Full Swing Mount, you will need to determine the placement of your display and identify surrounding support structures for attachment. The best height for a display is at the viewer’s eye level. You can find this height in one of two ways.
- Page 7 Attaching the Display Brackets Selecting the Right VESA Mounting Hardware for Your Display A variety of screws are included to fit VESA standards on the backs of most displays. Select the M5, M6, or M8 screws and washers that best fit your display. If Your Display Has Recessed Hand-thread the screws to determine the Mounting or a Curved Back:...
- Page 8 Attaching the Wall Bracket to Wooden Studs Wooden studs run vertically inside the wall, 16 inches apart, behind the drywall or plaster. The wall bracket must be mounted to a wooden stud, or the bracket could fall out and damage your display or cause personal harm. Use a stud finder to locate the Use a 1/4-inch (6 mm) wood drill edges of the wooden stud, and...
- Page 9 Attaching the Wall Bracket to Wooden Studs (cont.) Seat the wall bracket onto Screw in the top two anchor screws the rest of the way the two anchor screws, until secure. Use the wrench to further tighten the anchor using the two seating screws, but do not overtighten.
- Page 10 Attaching the Wall Bracket to Concrete Warning! Make sure the concrete wall is solid and at least 8 inches (20 cm) thick. If the concrete exhibits cracks or other defects, this may result in failure of the concrete anchors and cause serious personal injury or damage to your display. Place the wall bracket template Remove the template, up to the marked locations, and...
- Page 11 Attaching the Wall Bracket to Concrete (cont.) Seat the wall bracket onto Screw in the first two anchor screws the rest of the way the two anchor screws until secure. Use the wrench to further tighten the screws, using the two seating but do not overtighten.
- Page 12 Mounting the Display on the Wall Bracket Important! We recommend that two people perform this step. Lift your display up to the wall bracket’s display bars, and hang the Flip up the display bracket latches, and screw in the thumbscrews until display from the hooks of the display brackets.
- Page 13 Post-Installation Adjustment Once your display is mounted on the wall bracket, you can fine-tune the horizontal level, tilt, pivot, and depth from the wall. +3° -3° +5° -15° Horizontal Level Tilt Angle Loosen the four screws with the included crescent wrench as shown, Loosen the ratchet handle, and tilt the display up or down +5°...
- Page 14 Post-Installation Adjustment (cont.) 120° 2.7-25 in. Display Pivot Display Depth Pivot your display up to 120° for flexible mouting in the corner of a You can collapse or extend the mount so your display is 2.7 to 25 room or around an object. inches from the wall.
-
Page 15: Cable Management
Cable Management Run the power and A/V cables through cable concealment covers attached to the bottom of the mounting bracket extension arms. Widen the cover openings to slide the cables into the covers, and pull the cables through. -
Page 16: Five-Year Limited Warranty
To obtain warranty coverage, contact the Gabor Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Gabor along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
