DM-552 / LEVITOUCH DUAL ARM
MONITOR MOUNT
for 17 to 32 in. Desktop Computer Monitors
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Levitouch DM-552 and is the answer not in the manual?

Questions and answers

Related Manuals for GABOR Levitouch DM-552

Summary of Contents for GABOR Levitouch DM-552

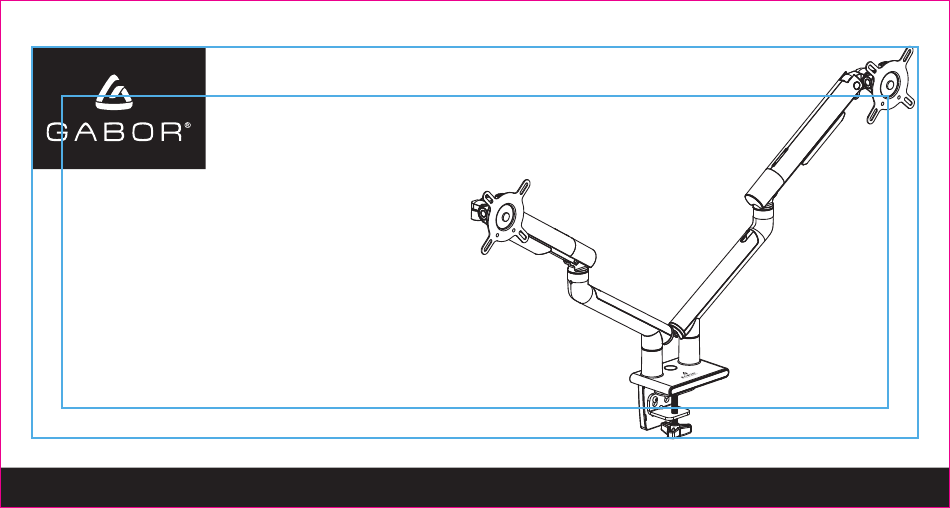

  • Page 1 DM-552 / LEVITOUCH DUAL ARM MONITOR MOUNT for 17 to 32 in. Desktop Computer Monitors User Manual...
  • Page 2 Thank you for choosing Gabor. The Gabor Dual-Arm Desktop Mount can securely support two monitors from 17 to 32 inches. The stylish yet rugged aluminum build will hold two monitors, each weighing up to 19.8 pounds, and the adjustable spring tension mechanism makes it easy to adjust your monitors to the perfect viewing height.

  • Page 3: Safety Warnings

    Safety Warnings • Please read and follow the instructions, and keep this manual in a • Do not exceed the maximum load capacity. safe place. • Do not install this product on an unsteady structure or one that is • To avoid damage to this product, be careful not to overtighten or prone to vibration, has a chance of being impacted, or is susceptible improperly thread any of the threaded fittings.

  • Page 4: Product Specifications

    Product Specifications Monitor display size Monitor arm swivel 94mm 187mm 253-292 mm 70mm 17 to 32 in. (43.2 to 81.3 cm) ±180° Maximum weight per monitor Base arm pivot 19.8 lb. (9 kg) ±90°/±180° Maximum desktop thickness Arm height adjustment 75mm 3.1 in.
  • Page 5 Overview VESA lock Rotation tension screws Tension indicator Bottom cable guide Tilt tension screw End cap Monitor arm VESA receiver Arm tension Monitor arm screw VESA plate setscrew Swivel set screw Top cable Base arm guide Grommet hole Base socket Clamping flange Carriage bolt Base arm setscrew...

  • Page 6: Parts Included

    Parts Included Required tool Optional tool (grommet installation) Phillips screwdriver Drill with 3/8 in. bit M4 × 12 mm screws M5 × 12 mm screws D5 washers Monitor arm Base arm VESA plate Clamp Flange Base Notch cover Clamping flange Carriage bolt Flat hex screws Washer...

  • Page 7: Clamp Installation

    Clamp Installation Attach the flange (E) to the base (F) with the three hex screws (J). Tighten them with hex key (N) until secure. Before you attach the clamp to the flange, Important! The clamp should rest on the flange measure the thickness of the table or bolts.
  • Page 8 Grommet (Non-edge) Installation Important! Predrilled holes in the desktop should be between of 0.4 to 2.4 inches (10 to 60 mm) in diameter. If you need to drill a hole in Place the base on the desktop, and insert the carriage bolt (I) through the top of the base the desktop, use a 3/8-inch socket and the hole in the desktop.

  • Page 9: Attaching The Arms

    Attaching the Arms Note: The base arms should easily slide completely into their sockets. If they don’t, loosen the base arm set screws before reinserting the arms into the sockets. Fit the base arms (B) into the base sockets. Insert the monitor arms (A) into the base arm sockets. Use the screwdriver end of hex key (N) to tighten the base Use the screwdriver end of hex key (N) to tighten the arm setscrews until secure.
  • Page 10 Attaching VESA Plates to the Monitors Important! Before you attach the VESA plate, hand thread one of the M-A or M-B screws to determine which one fits your monitor. Make sure the screw is also not too long or too short.
  • Page 11 Attaching the Monitors Once the VESA plate is securely attached to the monitor, slide it into the VESA receiver. Turn the VESA lock to the locked position. UNLOCKED Important! The VESA lock secures the VESA plate inside the VESA mount and ensures the monitor won’t lift out of the mount when you adjust the monitor height.
  • Page 12 Balancing the Arms You can adjust the arm tension to balance the arm according to the weight of your monitor. Remove the end cap from the arm to expose • If the arm drops, tighten the arm tension screw by the arm tension screw.
  • Page 13 Adjusting Tilt and Rotation Tilt and rotation adjustments determine how easily and smoothly you can adjust the screen’s position. Tilt Rotation The monitor should rotate easily, but once it’s set at the proper orientation it should stay there. If the monitor rotates too easily, adjust the rotation tension screws with a Phillips screwdriver.
  • Page 14 Adjusting Arm Swivel The arms can swivel +/-180°. However, if the stand is in front of a wall or cubical that can be damaged from contact with the arm or monitors, the arm rotation can be limited to +/-90°. To limit arms swivel to +/-90°, tighten the swivel setscrews on the back of the base arm sockets with the screwdriver end of hex key (N).

  • Page 15: Organizing Cables

    Store the Hex Keys Organizing Cables Power and monitor can be neatly run Store the hex keys and keep them through the top and bottom cable guides to handy for future adjustments by minimize clutter and keep cables organized. sliding them into the holes on the back of the flange.
  • Page 16 To obtain warranty coverage, contact the Gabor Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Gabor along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
