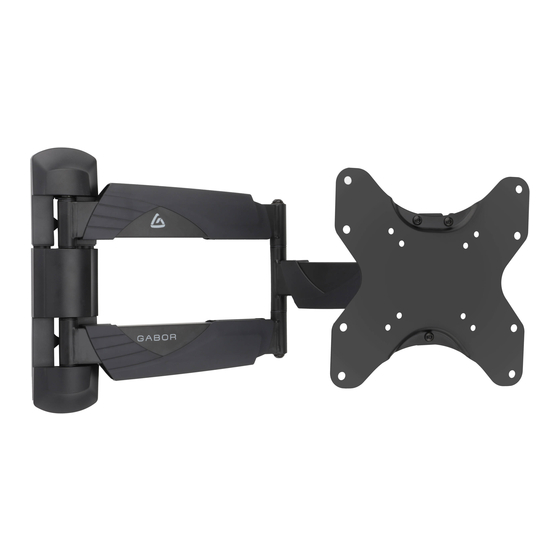

GABOR FSM-S User Manual

Mount for small flat-panel displays
Hide thumbs

Advertisement

Quick Links

Download this manual

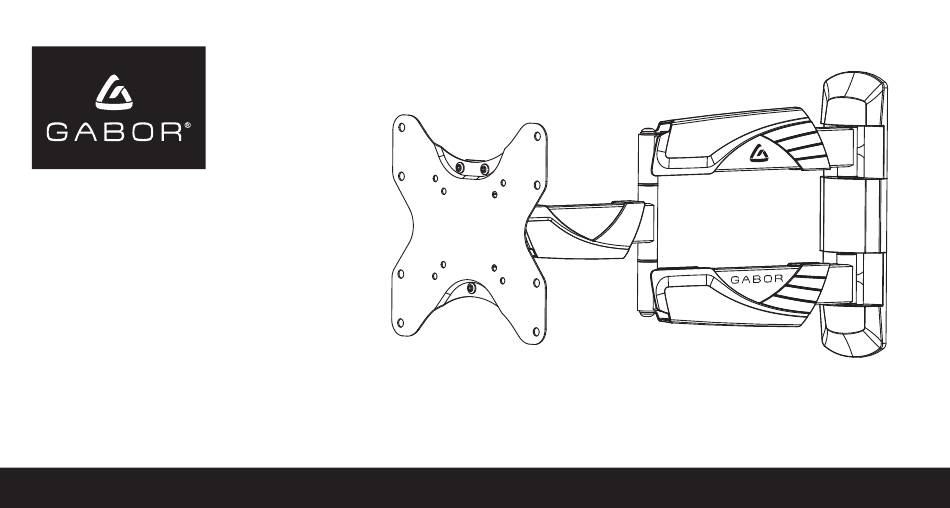

FSM-S / FULL SWING
MOUNT
for Small Flat-Panel Displays
User Manual

Advertisement

loading

Related Manuals for GABOR FSM-S

Summary of Contents for GABOR FSM-S

  • Page 1 FSM-S / FULL SWING MOUNT for Small Flat-Panel Displays User Manual...
  • Page 2 Thank you for choosing Gabor. This Gabor Full-Swing Wall Mount offers flexible mounting and customizable viewing angles for wall-mounted TVs and monitors. It accommodates flat-panel displays with screen sizes measuring 20 to 45 inches. The sturdy steel construction supports a maximum weight of 77 pounds. The mount offers post-installation adjustments for tilt, swivel, pan, screen depth, and horizontal level——so you can easily set up and comfortably view your display.

  • Page 3: Safety Warnings

    • This product may contain small parts which can possibly pose a professional or installation contractor; Gabor takes no responsibility choking hazard; keep out of reach of children and pets. for any product damage or personal injury resulting from mishandling, incorrect mounting, faulty assembly, or improper use of this product.

  • Page 4: Product Specifications

    Product Specifications Depth from Mounting Source Material 1.8 to 20 in. (4.6 to 50.8 cm) Steel Weight Recommended Screen Sizes 7.1 lb. (3.24 kg) 20 to 45 in. (50.8 to 114.3 cm) VESA Mounting Patterns 75×75 mm 100×100 mm 200×100 mm 200×200 mm Max Weight Capacity 77 lb.
  • Page 5 Overview Required Tools Wall bracket Wall bracket Display mounting Drill plate Phillips screwdriver Hammer Stud finder Tape measure 3/16 in. (4.5 mm) M4 × 14 mm screws M5 × 14 mm screws M6 × 14 mm screws M8 × 20 mm screws D5 washers D8 washers Spacers...
  • Page 6 Display/TV Placement Before installing the Gabor Full Swing Mount, you will need to determine the placement of your display and identify surrounding support structures for attachment. The best height for a display is at the viewer’s eye level. You can find this height in one of two ways.
  • Page 7 Preparing the Wall Bracket Preparing the Wall Bracket VESA Patterns Remove the Center Cover 75 × 75 100 × 100 200 × 100 200 × 200 Remove the Display Mounting Plate Loosen the top nuts slightly, then remove the bottom nut as shown. Slide the plate out from the wall bracket.
  • Page 8 Attaching the Display Mounting Plate Selecting the Right VESA Mounting Hardware for Your Display A variey of screws are included to fit VESA standards on the backs of most displays. Select the screws that best fit your display. If Your Display Has Recessed Hand-thread the screws to determine the Mounting or a Curved Back: If the screw is...
  • Page 9 Attaching the Wall Bracket to Wooden Studs Wooden studs run vertically inside the wall, 16 inches apart, behind the drywall or plaster. The wall bracket must be mounted to a wooden stud, or the bracket could fall out and damage your display or cause personal harm. 3/16 in.
  • Page 10 Attaching the Wall Bracket to Wooden Studs (cont.) Attach the bracket to the wall by inserting Attach the center cover and two end covers. Wall bracket mounted to wooden stud, with correct screw placement. the three anchor screws through the washers and the wall bracket’s mounting holes, and screw them into the predrilled support holes until secure.
  • Page 11 Attaching the Wall Bracket to Concrete Warning! Make sure the concrete wall is solid and at least 8 inches (20 cm) thick. If the concrete exhibits cracks or other defects, this may result in failure of the concrete anchors and cause serious personal injury or damage to your display. 3/8 in.
  • Page 12 Attaching the Wall Bracket to Concrete (cont.) Attach the bracket to the wall by inserting Attach the center cover and two end covers. Wall bracket mounted to concrete, with correct screw placement. the anchor screws through the washers and the wall bracket’s mounting holes, and screw them into the anchors until secure.
  • Page 13 Mounting the Display on the Wall Bracket Important! We recommend that two people perform this step. Make sure the two top nuts are attached and slightly loose. Lift your Replace the bottom hex nut and then tighten all three hex nuts using display up to the wall bracket, and seat the display into the mounting the box end wrench.
  • Page 14 Post-Installation Adjustment Once your display is mounted on the wall bracket, you can fine-tune adjustments to the horizontal level +3° to -3°, depth from the wall 1.8 to 20 inches, tilt +10° to -15° and pivot 180°. +3° -3° +10° -15°...

  • Page 15: Cable Management

    Post-Installation Adjustment (cont.) Cable Management 180° 1.8-20 in. 180° 180° Display Pivot Display Depth Run the power and A/V cables through cable covers on Pivot your display up to 180° for You can collapse or extend the mount the top or bottom of the wall bracket extension arms. flexible mounting in the corner of a so your display is 1.8 to 20 inches room or around an object.

  • Page 16: Five-Year Limited Warranty

    To obtain warranty coverage, contact the Gabor Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Gabor along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
