Back Panel Description
The cable connections for the MultiVOIP 200 are made at the back panel. Connectors include Power,
Command Port (RS-232), Ethernet (10BASE-T), and Voice/Fax Channels 1 and 2 (E&M, FXO and
FXS). The cable connectors are shown in Figure 1-5 and defined in the following groups.
Power Connector
The Power connector is used to connect the external power supply to the MultiVOIP 200. The Power
connector is a 6-pin circular DIN connector. A standard computer power cord connects the power
supply to a live AC grounded outlet.
Command Connector
The Command connector is used to configure the MultiVOIP 200 using a PC with an available serial
port and running Windows software. The Command connector is an RJ-45 jack (an adapter cable is
provided to convert to a standard serial port DB9 female connector).
10Base-T (Ethernet) Connector
The Ethernet 10Base-T connector is used to connect the MultiVOIP 200 to a LAN using unshielded
twisted cable. This connector is an RJ-45 jack.
Voice/Fax Channel 1 and 2
The Voice/Fax Channel connectors include three options per channel: E&M, FXS and FXO.
E&M - This connector is used for connecting Voice/Fax Channel 1 or 2 to the E&M trunk on a PBX.
This connector is an RJ-45 jack.
FXS - This connector is used for connecting Voice/Fax Channel 1 or 2 to a station device; e.g., an
analog phone, a KTS (Key Telephone System) phone system, or a fax machine. This connector is an
RJ-14 jack.
FXO - This connector is used for connecting Voice/Fax Channel 1 or 2 to the station side of a PBX.
This connector is an RJ-14 jack.
14

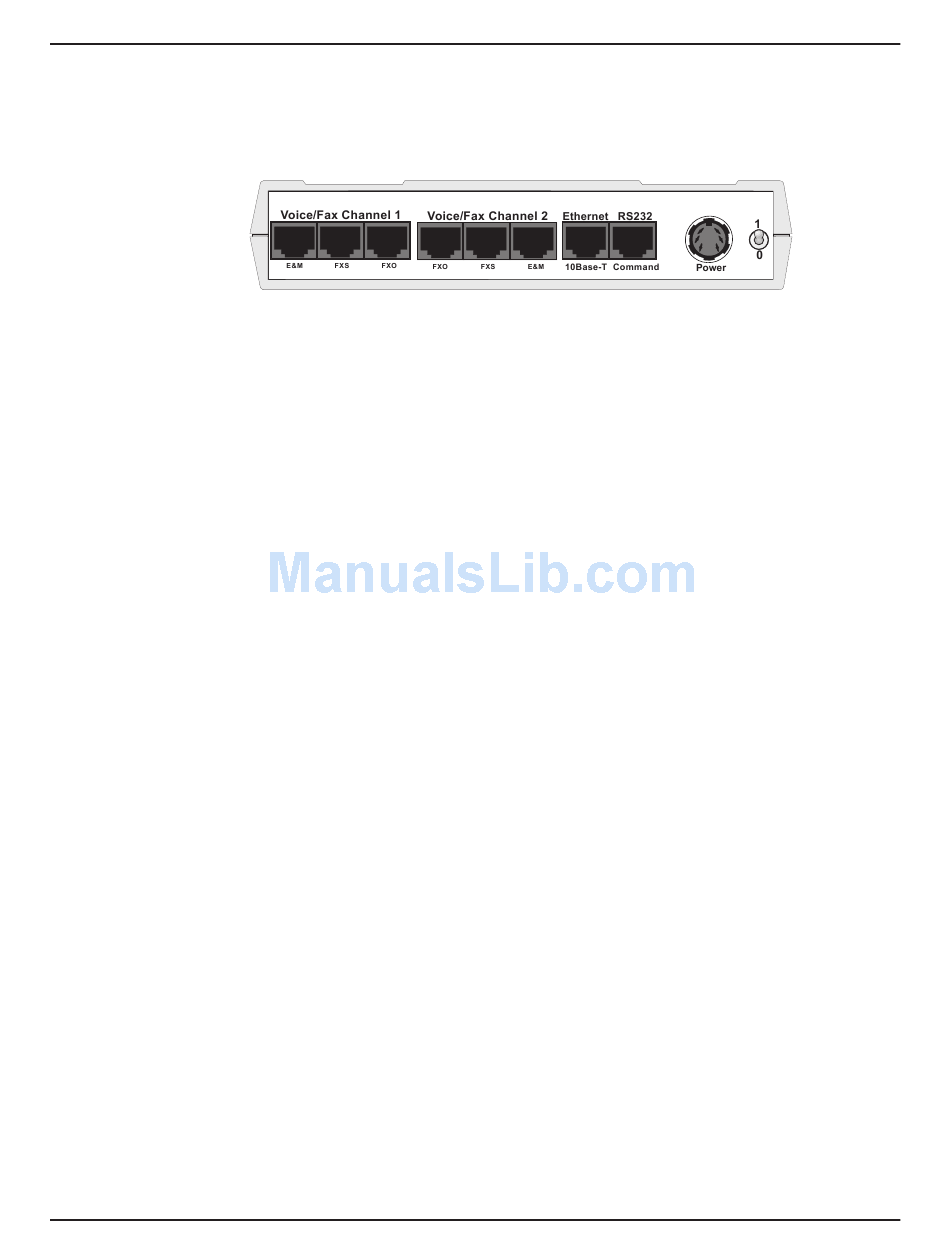

Figure 1-5. Back Panel
