MultiVOIP 200 User Guide
Again, the IP Address of the corporate MultiVOIP needs to be added and the port number is 1720.
This adds phone number 101 of the corporate MultiVOIP to the proprietary data base. Now, to add
extension 102 to the proprietary data base, all you have to do is change the Phone Number and
Description to support channel 2 of the corporate MultiVOIP. After you have added channel 2, you
need to include the two channels at the remote branch office.

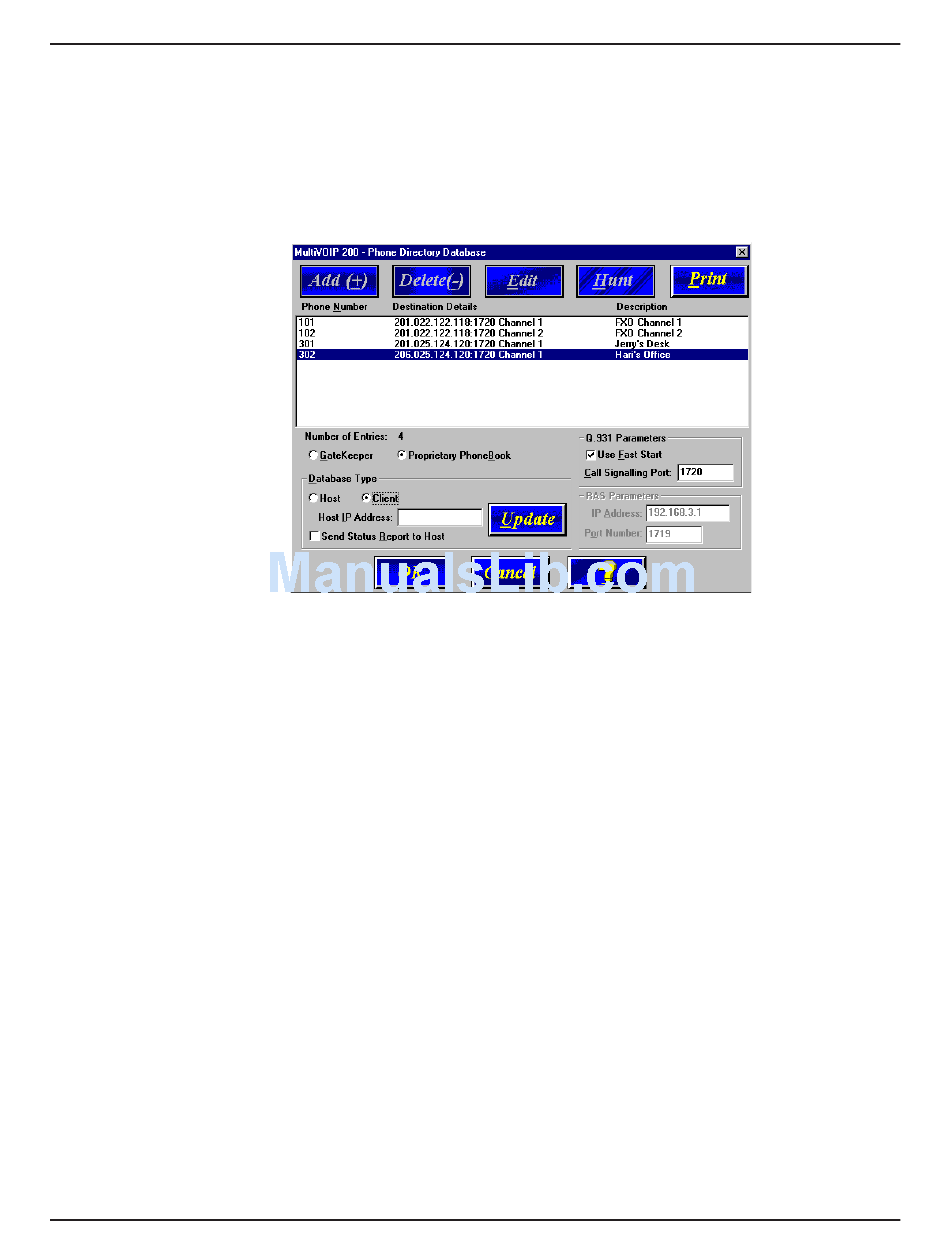

The proprietary data base would then appear as in the following dialog box and when the remote
branch office MultiVOIP is turned on, the current data base would be down loaded to the remote
branch office MultiVOIP.
