MultiVOIP 200 User Guide

LAN-Based

The LAN-based remote configuration requires a Windows Sockets compliant TCP/IP stack. TCP/IP
protocol software must be installed and functional before the configuration program can be used.
1. You must assign an Internet (IP) address for the PC and for each node that will be managed by
the configuration program. Refer to the protocol software documentation for instructions on how
to set the IP addresses.
Once you have completed this step, you should be able to use the protocol Ping command for
the PC host name. You should also test the network interface configuration by Pinging another
TCP/IP device that is connected to the network.
2. Install the MultiVOIP 200 software on the local PC. When installed, click Start | Programs |
MultiVOIP 200 v2.52 | Configuration Port Setup, or double-click the Configuration Port Setup
icon in the MultiVOIP 200 v2.52 program group.

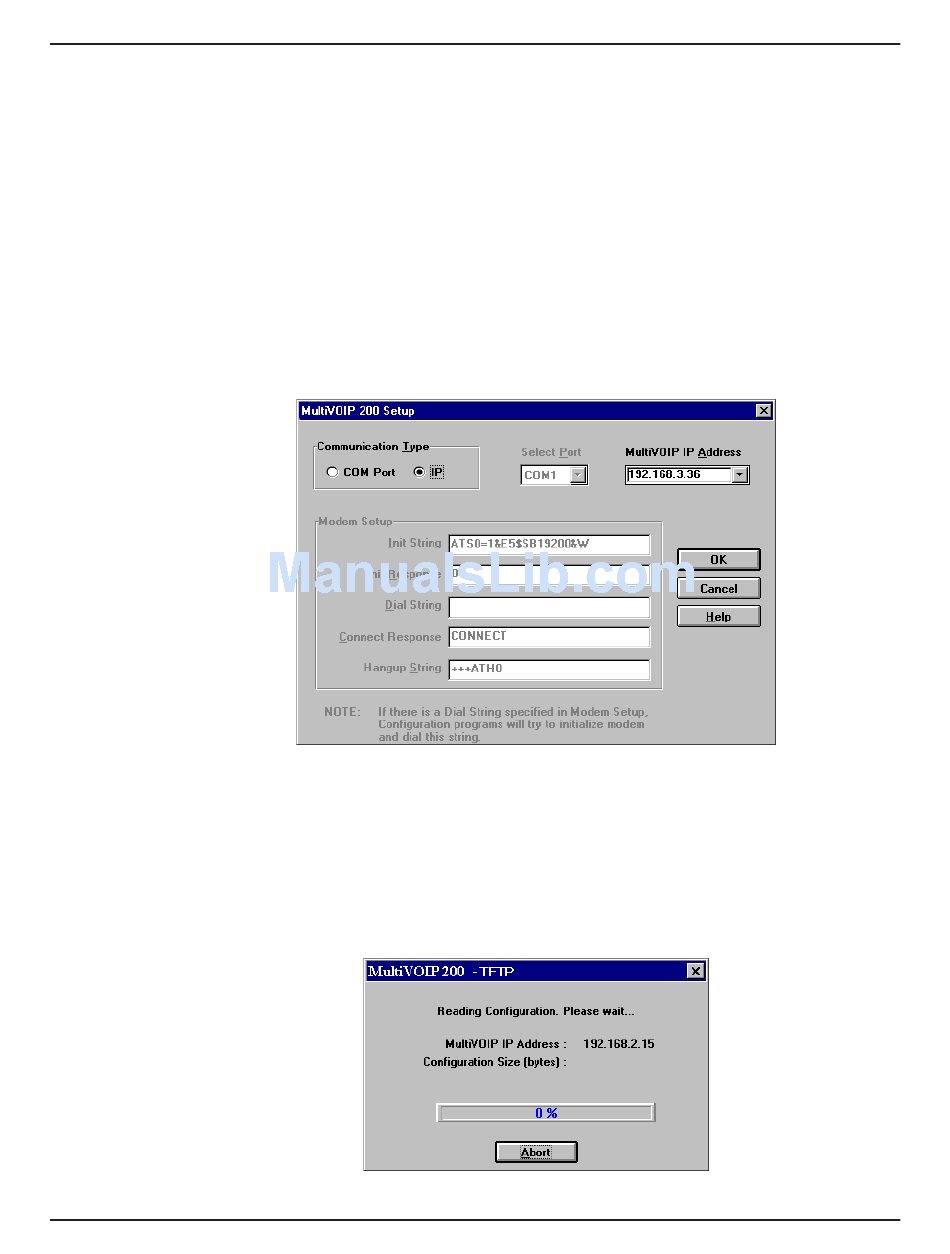

3. The MultiVOIP Port Setup dialog box is displayed.
Verify that IP is set for the Communication Type.
In the MultiVOIP 200 IP Address field, enter the IP Address of the remote MultiVOIP 200.
4. Click OK when you are satisfied with your selections.
5. Run the MultiVOIP 200 Configuration program. Click Start | Programs | MultiVOIP 200 v2.52 |
MultiVOIP Configuration, or double-click the MultiVOIP Configuration icon in the MultiVOIP
200 v2.52 program group.
The Reading Setup dialog box is displayed.
6. The MultiVOIP 200 Setup dialog box is displayed. This is the dialog box of the remote MultiVOIP
78
