Cabling Your MultiVOIP 200

Cabling your MultiVOIP 200 involves making the proper Power, Command Port, and Internet
connections. Figure 2-2 shows the back panel connectors and the associated cable connections. The
Cabling Procedure section provides step-by-step instructions for cabling your MultiVOIP 200.
Note: Before cabling your MultiVOIP 200, perform the E&M Jumper Block Positioning Procedure if
either voice/fax channel (1 or 2) will be connected to an E&M trunk that is a Type 1,3, 4, or 5 rather
than a Type 2 (the default).
Caution: All MultiVOIP's require +5 volts, +12 volts, and -12 volts while some other Multi-Tech
products only require +5V and +12 volts. You might even consider marking or labeling them to ensure
that they are kept together.

Cabling Procedure

1. Using the supplied cable, connect the power supply to a live AC outlet, then plug the power
supply into the MultiVOIP 200 as shown in Figure 2-2. The power connector is a 6-pin circular
DIN connector.
2. Connect the MultiVOIP 200 to a PC using the RJ-45 to DB9 (female) cable provided with your
unit. Plug the RJ-45 end of the cable into the Command port of the MultiVOIP 200 and connect
the other end to the PC's serial port. See Figure 2-2.
3. Connect a network cable to the Ethernet 10Base-T connector on the back of the MultiVOIP 200.
Connect the other end of the cable to your network.
4. If you are connecting a station device; e.g., analog telephone, fax machine, or Key Telephone
System (KTS) to your MultiVOIP 200, connect the smaller end of a special adapter cable
(supplied) to the Voice/Fax Channel 1 FXS connector on the back of the MultiVOIP 200 and the
other end to the station device.
20
Voice/Fax Channel
1 & 2 Connections
E&M
FXS
PBX
PSTN

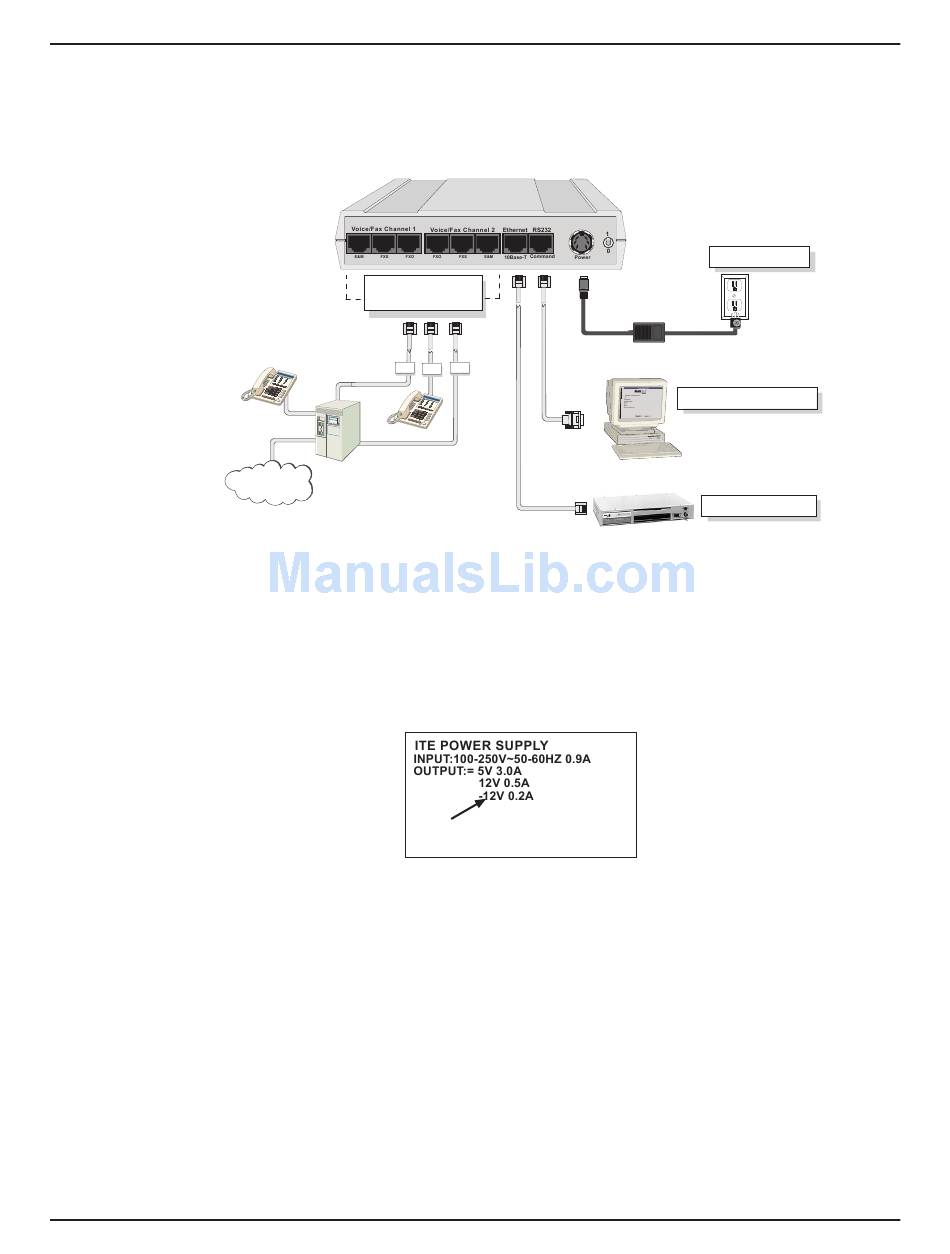

Figure 2-2. Cable Connections
FXO
Power Connection
Command Port Connection
Network Connection
Hub
