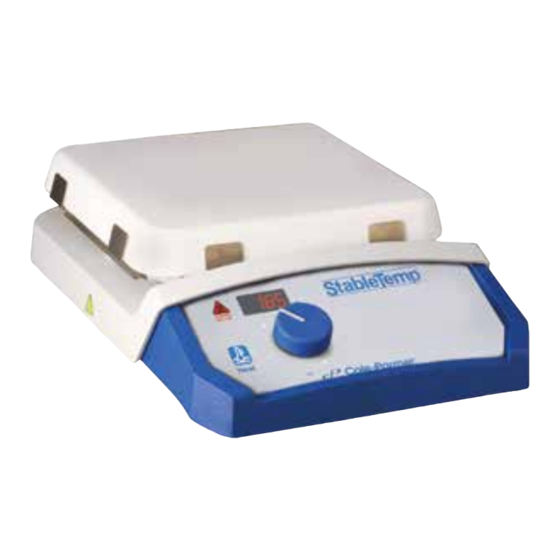

StableTemp
and Stirring Hotplates
Stirring Hotplates:
LT1921X1 • 3/26/07
®
Hotplates, Stirrers
OPERATION MANUAL
AND PARTS LIST
Hotplates:
Catalog #
03405-00
03405-05
03405-10
03405-15
03405-20
03405-25
03405-30
10x10
03405-35
10x10
Stirrers:
Catalog #
03406-00
03406-05
03406-10
03406-15
03406-20
03406-25
03406-30
10x10
03406-35
10x10
Catalog #
03407-00
03407-05
03407-20
03407-10
03407-25
03407-15
03407-30
10x10
03407-35
10x10
Size
Voltage
4x4
120
4x4
240
7x7
120
7x7
240
7x7
120
7x7
240
120
240
Size
Voltage
4x4
120
4x4
240
7x7
120
7x7
240
7x7
120
7x7
240
120
240
Size
Voltage
4x4
120
4x4
240
7x7
120
7x7
120
7x7
240
7x7
240
120
240
Top Plate Material
Ceramic
Ceramic
Ceramic
Ceramic
Aluminum
Aluminum
Ceramic
Ceramic
Top Plate Material
Ceramic
Ceramic
Ceramic
Ceramic
Aluminum
Aluminum
Ceramic
Ceramic
Top Plate Material
Ceramic
Ceramic
Aluminum
Ceramic
Aluminum
Ceramic
Ceramic
Ceramic
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cole Parmer StableTemp 03405-00
Summary of Contents for Cole Parmer StableTemp 03405-00
- Page 1 StableTemp ® Hotplates, Stirrers and Stirring Hotplates OPERATION MANUAL AND PARTS LIST Hotplates: Catalog # Size Voltage Top Plate Material 03405-00 Ceramic 03405-05 Ceramic 03405-10 Ceramic 03405-15 Ceramic 03405-20 Aluminum 03405-25 Aluminum 03405-30 10x10 Ceramic 03405-35 10x10 Ceramic Stirrers: Catalog # Size Voltage Top Plate Material...
-
Page 2: Table Of Contents
Table of Contents Safety Information ..............................3 Warnings ..............................3 Specifications ..............................5 Environmental Conditions ..........................6 Declaration of Conformity..........................6 Unpacking and Installation ..........................7 General Usage ..............................7 Unpacking ..............................7 Installation ..............................7 Operation ................................8 Setting the Stirring Speed ..........................8 Setting the Temperature..........................8 Maintenance and Troubleshooting ........................9 General Cleaning Instructions ........................9 Error Codes ..............................9 Replacement Parts............................10... -
Page 3: Safety Information
Safety Information Your Cole-Parmer StableTemp Hotplate, Stirrer or Alert Signals Stirring Hotplate has been designed with function, reli- ability, and safety in mind. It is your responsibility to install it in conformance with local electrical codes. For Warning safe operation, please pay attention to the alert signals Warnings alert you to a possibility of throughout the manual. - Page 4 AFETY NFORMATION Do not use metal foil on hotplate which may block air flow. Overheating will result. Check and tighten the removable cord periodi- cally making sure it is secure. If loosened, the cord could become hot and/or spark and be a potential fire hazard.
-
Page 5: Specifications
Specifications Electrical Temperature Speed Top Plate Catalog # (Volts/Amps/Watts/Freq./Phase) Range Range Capacity Hotplates: 03405-00 120/3.2/385/60/1 5-540°C 1L flask - 15 lbs. 03405-05 230/1.7/420/50-60/1 5-540°C 1L flask - 15 lbs. 03405-10 120/8.8/1060/60/1 5-540°C 4L flask - 25 lbs. 03405-15 230/4.8/1150/50-60/1 5-540°C 4L flask - 25 lbs. -
Page 6: Environmental Conditions
PECIFICATIONS Environmental Conditions Operating: 17°C to 27°C; 20% to 80% relative humidity, non-condensing. Installation category II (overvoltage) in accordance with IEC 664. Pollution degree 2 in accordance with IEC 664. Altitude Limit: 2,000 meters. Storage: -25°C to 65°C 10% to 85% relative humidity Declaration of Conformity (for 230 volt) We hereby declare under our sole responsibility that this product conforms with the technical requirements of... -
Page 7: Unpacking And Installation
Unpacking and Installation General Usage Do not use this product for anything other than its intended usage. Unpacking Remove your hotplate, stirrer or stirring hotplate from the carton. Inspect to ensure that the unit has not been damaged during shipment. If the unit appears to have sustained shipping damage contact Cole-Parmer Customer Service at 800-323-4340. -
Page 8: Operation
Operation Setting the Stirring Speed Warning To set the speed, turn the STIR knob to the desired Use caution when heating volatile setting. Turn the knob clockwise to increase the speed materials; top surface and element or counter-clockwise to decrease the speed. To discon- can reach the “Flash Point tinue stirring, turn knob counter-clockwise to OFF. -
Page 9: Maintenance And Troubleshooting
Maintenance and Troubleshooting General Cleaning Instructions Wipe exterior surfaces with lightly dampened cloth containing mild soap solution. Error Codes - Hotplates and Stirring Hotplates only The following errors should not be addressed by the user. If any of the errors appear, contact Cole-Parmer Technical Service at 800-323-4340. -
Page 10: Replacement Parts
Replacement Parts 4x4 Ceramic 7x7 Ceramic 7x7 Aluminum 10x10 Ceramic Part No. Part No. Part No. Part No. Description 261575 261575 261575 261575 PC Board Fuse - 220-240V PCX118 PCX118 PC1895X1 PC1886X1 Control Board - 120V (SHP) PCX119 PCX119 PC1895X2 PC1886x2 Control Board - 220-240V (SHP) PC1887X1... -
Page 11: Warranty
Warranty Cole-Parmer Company warrants to the direct purchaser that the representation made accurately reflect the manufacturer’s representations. To the extent permissible, we will make available to its direct purchaser the manufacturer’s warranty. The Company agrees, at its election, to correct by repair, by replacement, or by credit to purchaser, any defect of material or workmanship which develops within two years after delivery of the product to the original purchaser by the Company or by an authorized dealer of the Company provided that investigation or factory inspection by the Company discloses that such defect developed under normal and proper use.
