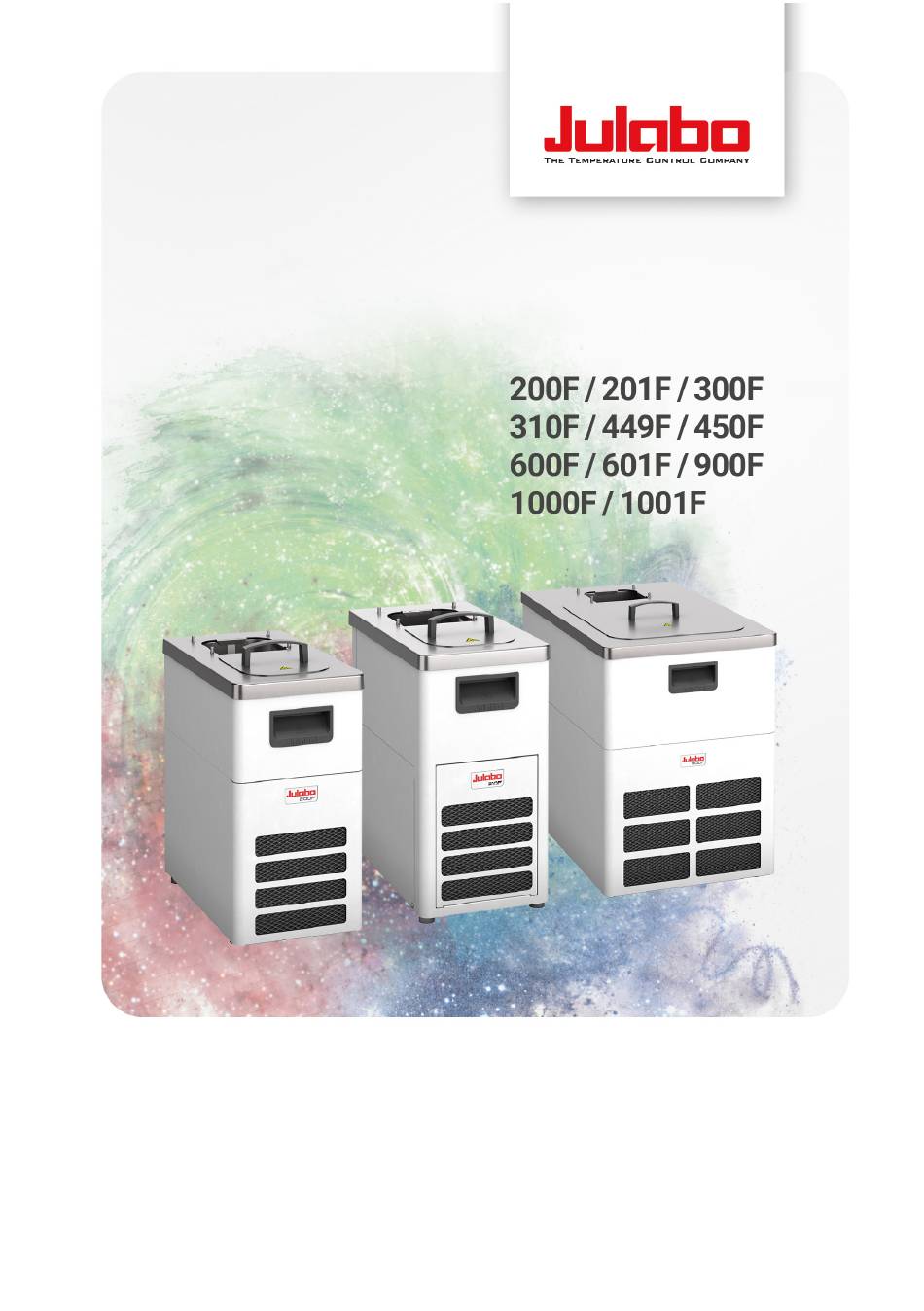

- Page 1 Refrigerated bath basic units Original operating manual 1.950.0170.us.V08 10/2022...
- Page 2 Legal JULABO USA, Inc. 884 Marcon Boulevard Allentown, PA 18109 Phone: +1(610) 231-0250 Fax.: +1(610) 231-0260 Info@julabo.us www.julabo.us The content of this operating manual is protected by copyright. Information, including texts, images, and other contents may not be reproduced, distributed, transmitted, stored or otherwise used in any form without prior explicit written consent.
-
Page 3: Table Of Contents
Foreword .................... 4 About this manual ................5 Notes on commissioning and operation ......... 5 Original JULABO spare parts ............5 Accessories ..................5 Warnings ..................6 Symbols used ................. 7 Intended use ..................7 Safety ....................8 Safety instructions ................8 Safety symbols ................ -
Page 4: Foreword
Foreword Foreword Congratulations! You have made an excellent choice. JULABO would like to thank you for the trust you have placed in our company and products. This operating manual will help you become acquainted with the use of our units. Read the operating manual carefully. Keep the operating manual handy at all times. -
Page 5: About This Manual
About this manual About this manual This manual is intended for the equipment specified on the cover page. NOTE Observe the safety instructions! Read the Safety section of this manual before using the equipment for the first time. Notes on commissioning and operation The cooling machine is combined with a suitable JULABO circulator to form a refrigerated circulator. -
Page 6: Warnings
About this manual Warnings The manual contains warnings to increase safety when using the device. Warnings must always be observed. A warning sign displayed in signal color precedes the signal word. The signal word, highlighted in color, specifies the severity of the hazard. CAUTION This signal word designates a danger with a low level of risk which, if it not prevented, may result in minor to moderate injuries. -
Page 7: Symbols Used
Intended use Symbols used Various symbols are used throughout this manual to aid reading comprehension. This list describes the symbols used. Tools needed for the following approach Prerequisite to be met for the following procedure 1. Numbered action steps ... -
Page 8: Safety
Safety Safety Safety instructions The unit is built in accordance with state of the art technology and recognized safety regulations. Despite this, its use may pose a risk to life and limb for the user or third parties. Therefore, always read and observe the following safety instructions before using the product. - Page 9 Safety Natural refrigerants are flammable! The device contains flammable refrigerants. If there is a leak in the refrigerant cycle, a flammable concentration may form in the air and ignite or explode. This can result in serious injury or death. • Use the required minimum room size for operating the device.
-
Page 10: Safety Symbols
Safety Safety symbols There are safety symbols included with the device, which should be attached to the device before initial operation. Safety Description symbols Warning of a danger zone. Note operating manual Warning about hot surface Read operating manual before switching on Safety function Technical safety functions protect the device from damage. -
Page 11: Product Description

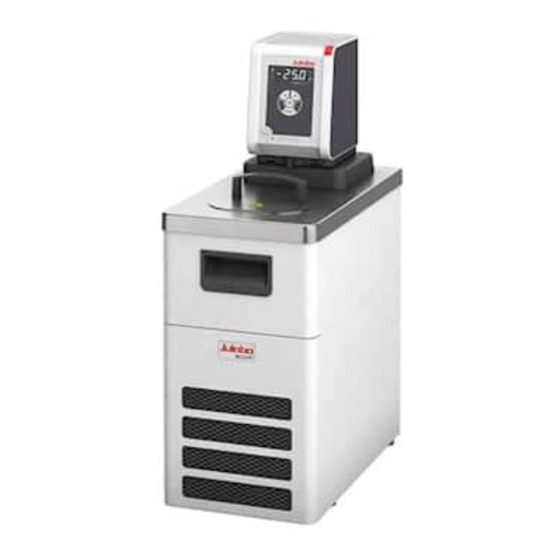

Product description Product description Function description This section describes the function of the device. The cooling machine is combined with a circulator to form a refrigerated circulator. The device combination can precisely cool and heat samples over a wide temperature range. The device combination is suitable for external temperature applications. -
Page 12: Operating And Functional Elements
Product description Operating and functional elements The following figure shows the operating and functional elements and their position on the unit. Front (without cover) and rear (e.g. 310F) Recessed grip Bath tank drain opening Drain valve Drain hose (for 310F and 450F) Condenser Recessed grip CAN plug for connection with a circulator... -
Page 13: 5.3.1 External Inverter
Product description 5.3.1 External inverter With the 100 V voltage variant of 310F and 450F, the inverter is mounted on the rear side. Rear side of 310F/450F (100 V voltage variant) Inverter CAN plug for connection with a circulator Mains input socket Circulator mains output socket Mains fuse Mains fuse... -
Page 14: Technical Data
Product description Technical data Performance specifications measured in accordance with DIN12876. Cooling capacities up to 20°C measured with ethanol; over 20°C with thermal oil unless specified otherwise. Performance specifications apply at an ambient temperature of 20°C. Performance values may differ with other bath fluids. Grouping of the device acc. - Page 15 Product description Technical data 200F Performance values Lowest temperature °C Refrigerants R134a Dimensions Dimensions (W x D x H) 23 x 39 x 44 Usable bath opening (W x D) 13 x 15 Bath depth Volumes min. … max. 3.0 … 4.0 Weight Mains connection 100 V...
- Page 16 Product description Mains connection 100 V 115 V 230 V 50/60 Hz 60 Hz 50/60 Hz Nominal current consumption Total current consumption Switzerland Great Britain Mains fuse, resettable Technical data 300F Performance values Lowest temperature °C Refrigerants R134a Dimensions Dimensions (W x D x H) 24 x 42 x 66 Usable bath opening (W x D) 13 x 15...
- Page 17 Product description Technical data 310F Performance values Lowest temperature °C Refrigerants R449A/R290 Dimensions Dimensions (W x D x H) 23 x 40 x 43 Usable bath opening (W x D) 13 x 15 Bath depth Volumes min. … max. 3.0 … 4.0 Weight Mains connection 100 V...
- Page 18 Product description Mains connection 100 V 115 V 200-230 V 50/60 Hz 60 Hz 50/60 Hz Nominal current consumption 3 (200 V) 3 (230 V) Total current consumption Switzerland Great Britain Mains fuse, resettable Technical data 600F Performance values Lowest temperature °C Refrigerants R449A, R452A*...
- Page 19 Product description Technical data 601F Performance values Lowest temperature °C -35/-40* Refrigerants R449A, R452A** Dimensions Dimensions (W x D x H) 33 x 46 x 52 Usable bath opening (W x D) 22 x 15 Bath depth Volumes min. … max. 8.0 …...
- Page 20 Product description Mains connection 100-230 V 50/60 Hz Nominal current consumption 5 (100 V) 3 (230 V) Total current consumption Mains fuse, resettable at 100 V/ Technical data 900F Performance values Lowest temperature °C -38/-40* Refrigerants R449A Dimensions Dimensions (W x D x H) 39 x 62 x 53 Usable bath opening (W x D) 26 x 35...
- Page 21 Product description Technical data 1000F Performance values Lowest temperature °C -40/-50* Refrigerants R449A Dimensions Dimensions (W x D x H) 42 x 49 x 51 Usable bath opening (W x D) 18 x 13 Bath depth Volumes min. … max. 5.0 …...
-
Page 22: 5.4.1 Material Of Parts That Come Into Contact With The Medium
Product description Mains connection 200-230 V 50/60 Hz Nominal current consumption 5 (200 V) 5 (230 V) Total current consumption Switzerland Great Britain Mains fuse, resettable 5.4.1 Material of parts that come into contact with the medium The table lists parts that could come into contact with the bath fluid as well as the material that the parts are made of. -
Page 23: Transport And Installation
Transport and installation Transport and installation This section describes how to transport the unit safely. CAUTION Risk of crushing by falling device! A device that is not secured appropriately can fall down during improper transport and cause crushing injuries. • Secure the device against tipping and falling during transport •... -
Page 24: Maintenance
Maintenance Maintenance Replace detachable power cord The device is equipped with a detachable power cord. If the power cord needs to be replaced, ensure that the new one is at least dimensioned for the device power requirements. Insufficiently dimensioned power cords must not be used. See type plate for mains voltage and current value. - Page 25 Maintenance [1] Safety signs (order no.: 3.383.2600): [2] Safety signs (order no.: 3.383.2630): [3] Note (order no.: 3.383.2640): 1. Check the safety symbols on the unit for legibility and completeness. 2. Replace defective or missing safety symbols. Safety symbols can be reordered from JULABO. ...
-
Page 26: Emptying
Maintenance Emptying The device must be completely drained if it is to be sent in for technical service or is to be properly disposed of. In general, the device should be completely emptied before longer shutdowns or when there is a change to the external application. CAUTION Risk of burns from hot bath fluid! Bath fluid can become very hot during a temperature control process. -
Page 27: Clean Device
Maintenance Clean device The outside of the device should be periodically cleaned. Lint-free cloth Mild cleaning agent NOTE Damage to the electronics due to water penetration! Ingress of water can damage electronic components of the device and thus lead to failure of the device. -
Page 28: Device Storage
Maintenance 3. Use a vacuum cleaner to carefully vacuum the dirt off the condenser. Make sure that the fins of the condenser are not damaged. 4. Place the venting grid back on. The condenser is cleaned. Device storage Take your device out of operation if you have not used it for a long time or, for example, it is to be sent to Technical Service for repair. -
Page 29: Technical Service
Maintenance Technical Service If the unit shows faults you cannot resolve, please contact our Technical Service. JULABO Technical Service Tel.: +1(610) 231-0250 Option 3 Fax: +1(610) 231-260 Email: Service@julabo.us Before sending a device to Technical Service, the following points must be observed: •... -
Page 30: Warranty
Maintenance Warranty The following Warranty Provisions shall apply to products sold in North America by Julabo (“Seller”) to the entity shown as buyer (“Buyer”) on Seller’s invoice. Initial Warranty Upon Seller’s receipt of payment in full for the products and subject to Buyer’s compliance with the terms of sale and any other agreement with Seller relating to the products, Seller warrants to the Buyer that the products manufactured by the Seller are free from defects in material and workmanship for a period not to... - Page 31 Maintenance be extended. All repairs or replacements performed by Seller pursuant to these Warranty Provisions shall be performed at one of the Seller’s facility in Allentown, Pennsylvania, U.S.A. or at the facility of an authorized representative of Seller, which location shall be determined by Seller in its sole discretion; provided, however, that Seller may, in its sole discretion perform such repairs or replacements at Buyer’s facility in which case Buyer shall pay Seller’s travel, living and related expenses incurred by Seller in performing the repairs or...
- Page 32 Maintenance Waiver Any failure of the part of Seller to insist on strict compliance with the Warranty Provisions shall no way constitute a waiver of such right. No claim or rights arising out of a breach of the Warranty Provisions by Buyer may be discharged in whole or in part by a waiver of the claim or right, unless the waiver is in writing signed by an authorized representative of Seller.
-
Page 33: Disposal
Disposal Disposal Device disposal When disposing of the device, the applicable country-specific guidelines must be observed. CAUTION Risk of fire with flammable refrigerants! If the device contains a flammable refrigerant, there is a risk of fire if refrigerant leaks. • Do not open the refrigerant circuit •...
