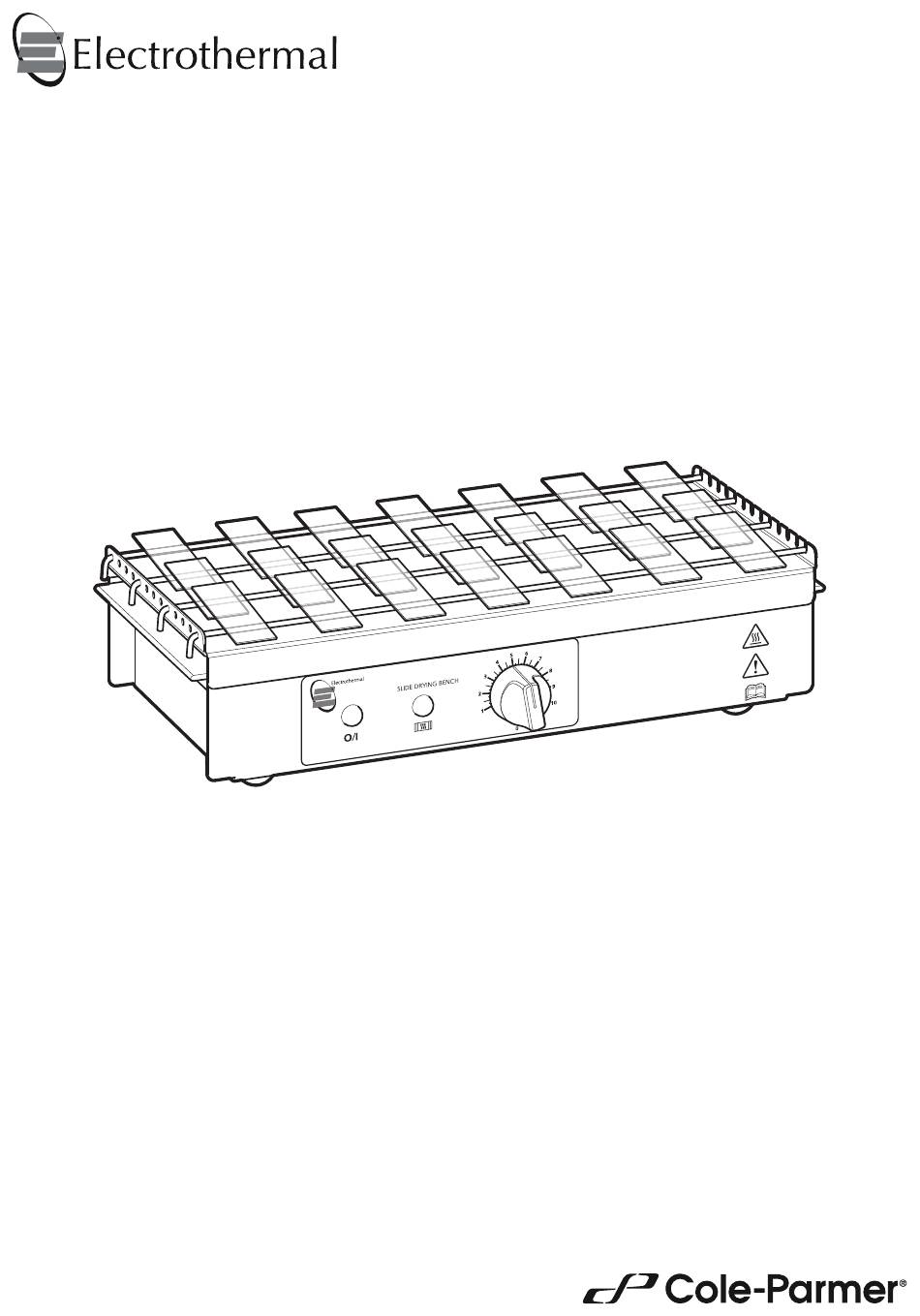

  • Page 1 Slide Drying Bench MH6616 MH6616X1 Instruction Manual M6627 / Version 7.4...
  • Page 2 Please take your time to read this Instruction Manual in order to understand the safe and correct use of your new Electrothermal product. It is recommended the Responsible Body for use of this equipment reads this Instruction Manual and ensures the user(s) are suitably trained in its operation. Section 1.
  • Page 3 INTRODUCTION 1.1. This Slide Drying Bench aids the preparation of microscope slides at the specimen mounting stage. Accepting up to 50 slides, it has the facility for drying slides in different orientations. The temperature control is provided by a built-in energy regulator controlling temperature up to 100C. The case and top are painted aluminium.
  • Page 4 SYMBOLS AND USING THIS INSTRUCTION MANUAL. 2.1. Throughout this Instruction Manual the following symbols are shown to identify conditions which pose a hazard to the user, or to identify actions that should be observed. These symbols are also shown on the product, or its packaging. When a symbol is shown next to a paragraph or statement it is recommended the user takes particular note of that instruction in order to prevent damage to the equipment or to prevent injury to one’s self or other people.

  • Page 5: Safety Information

    SAFETY INFORMATION. This product has been designed for safe operation when used as detailed in accordance with the Manufacture’s instructions. NOTE: Failure to use this equipment in accordance with the manufacture’s operating instruction may compromise your basic safety protection afforded by the equipment and may invalidate the warranty / guarantee.
  • Page 6 Do not operate or handle any part of this product with wet hands. Do not touch the heating surface whilst in use. Do not lean or stretch over equipment. Keep the Mains Plug and Lead set cable away from the heating surface.

  • Page 7: Unpacking And Contents

    UNPACKING AND CONTENTS. Please check the contents of this carton against the diagram. Item No Description Mains Cord set. (Illustration only- may vary depending on variant) Support rods Slide Dry Bench Instruction Manual Unit Serial Number Unit Model/Cat Number. For your future reference please record your products Serial and Model numbers.

  • Page 8: Installation

    INSTALLATION. 5.1. Electrical safety and installation. 5.1.1. This equipment is designed to safe under the following conditions:-  Indoor use.  Altitude up to 2000 meters.  Temperatures between 5C and 40C.  Maximum relative humidity 80% for temperatures up to 31C decreasing linearly to 50% relative humidity at 40C.

  • Page 9: Environmental Protection

    ENVIRONMENTAL PROTECTION. 6.1. Maximum consideration to environmental issues within the design and manufacturing process without compromising end product performance and value. Packaging materials have been selected such that they may be sorted for 6.2. recycling. At the end of your product and accessories life, it must not be discarded as 6.3.

  • Page 10: Product Operation

    PRODUCT OPERATION This unit has been designed for safe operation when used as described in accordance with the manufacturers instructions. Note: failure to use this equipment in accordance with the manufacturers ‘Instruction manual’ may compromise your basic safety protection afforded by this equipment and may invalidate the terms of the Warranty / Guarantee.

  • Page 11: Technical Specification

    TECHNICAL SPECIFICATION. 8.1. Specification. Maximum power consumption. 160 Watts Fuse rating (115V). 2.5 Amps (5 x 20mm dia Glass Quickblow) Fuse rating (230V). 1.25 Amps (5 x 20mm dia Glass Quickblow) Operational climatic conditions. Temperature range 5C to 40C. Humidity not to exceed 80%. Heating Element Silicone Rubber Mat Heater.

  • Page 12: Maintenance

    MAINTENANCE 9.1. General Information Unplug the unit from the mains input voltage supply and allow it to cool before undertaking any maintenance tasks. Maintenance should only be carried out under the direction of the Responsible Body, by a competent electrician. Failure to do so may result in damage to the product and in extreme cases be a danger to the end user.
  • Page 13 9.3. Replacing the Heater Mat. WARNING: The Insulation Pressure Plate contains insulation made from Refractory Ceramic Fibres (RCF) classified as a category 2 carcinogen under EU Directive 67/548/EC. Follow the guidelines for working with RCF as laid down in the ECFIA Code of Practise. In the event of a heater element becoming open circuit the following procedure should be adopted for its replacement.
  • Page 14 9.4. Spillage and Decontamination. In the event of spillage switch off and unplug this product from the mains electrical supply. Wipe off all excess liquid from the reaction block and surrounding area using an absorbent soft cloth. Allow sufficient time for any ingressed liquid to evaporate before commencing with use. If in doubt please consult Customer Support.

  • Page 15: Parts And Accessories

    PARTS & ACCESSORIES. 230V 115V Heater Mat REMH6616 AZ9137 Slide Support Rod Qty 4 AZ9139 AZ9139 CRM5607 CRM5619 Neon Clear CRM5608 CRM5620 Neon Amber AZ9127 AZ9128 Energy Regulator AZ9039 (F1.25A) AZ9040 (F2.5A) Fuse (Qty 10) HH179(S) Plug and lead set (UK) HH180(S) Plug and lead set (Europe) Plug and lead set (USA)

  • Page 16: Customer Support

    11. CUSTOMER SUPPORT. For help and support in using this product, please contact Customer Services at the following address. Cole-Parmer Ltd. Beacon Road, Stone, Staffordshire, ST15 0SA, United Kingdom Tel: +44 (0)1785 812121 Service: cpservice@coleparmer.com General enquiries: cpinfo@coleparmer.com Order enquiries: cpsales@coleparmer.com Technical support: cptechsupport@coleparmer.com www.electrothermal.com...
  • Page 17 12. NOTES...

  • Page 19: Eu Declaration Of Conformity

    This product meets the applicable EC and so we cannot guarantee that interference will not harmonised standards for radio frequency occur in practice. Where there is a possibility that injury, interference and may be expected not to damage or loss might occur if equipment malfunctions interfere with, or be affected by, other equipment with due to radio frequency interference, or for general similar qualifications.
  • Page 20 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
