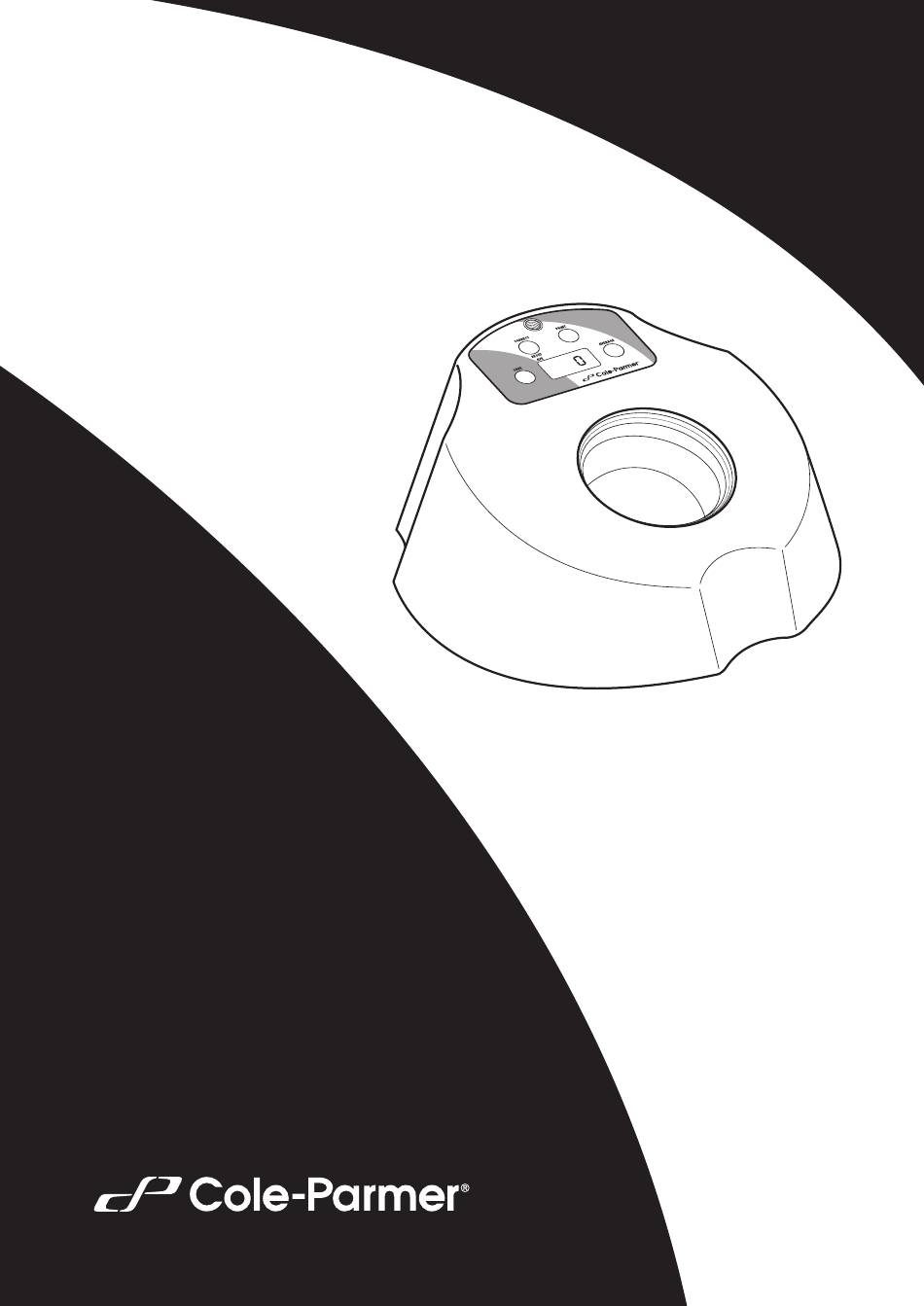

- Page 1 Colony Counter User Guide Version 1.2...
- Page 2 Magnifier position Control panel Receiver plate Figure 1 - Colony Counter controls Background Printer adjustment connector Sensitivity adjustment connector (USB) Power on/off switch Power socket Fuse Dish adapters Figure 2 - Colony Counter back panel Figure 3 - Underneath the Colony Counter...
-
Page 3: Electrical Installation
Colony Counter Introduction Thank you for purchasing this Cole-Parmer product. To get the best performance from the equipment, and for your own safety, please read these instructions carefully before use. Before discarding the packaging check that all parts are present and correct. -
Page 4: General Description
The wires in the power cable (230 V) are colored as follows: BROWN - HOT/LIVE BLUE - NEUTRAL GREEN/YELLOW - EARTH IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN Should the power cable need replacing, a cable of 1mm of harmonized code H05W-F connected to an IEC320 plug should be used. - Page 5 If small colonies are to be counted, a magnifier accessory is available for separate purchase. To assemble, screw the flexible support arm into the designated area located on top of the unit. Adjust the flexible support arm until the required magnification and field of view is achieved. Counting Turn the unit ON at the ON/OFF switch located at the back of the unit (see Fig.
- Page 6 Replace the petri dish with the next and press <save> to resume the count. Repeat until all dishes have been counted. At the end of the run, press the <average> key to display the average count. average The average count will be calculated from all previously saved counts. The average count may be viewed at any time during the batch counting of petri dishes by pressing the <average>...
-
Page 7: Servicing And Repair
If in doubt, please contact Cole-Parmer. Warranty Cole-Parmer warrants this equipment to be free from defects in material and workmanship, when used under normal laboratory conditions, for a period of three (3) years. In the event of a justified claim, Cole-Parmer will replace any defective component or replace the unit free of charge. -
Page 8: Technical Specification
Technical Specification 14312-00 Digital display 3-digit LED Light source White LED Count 0 to 999 Dish size up to 90 mm (3.5 in.) Dimensions (width x depth x height) 310 x 300 x 140 mm (12.2 x 11.8 x 5.5 in.) Net weight 1.5 Kg (3.3 lb) Electrical supply... - Page 9 This page intentionally left blank...
- Page 10 This page intentionally left blank...
-
Page 11: Declaration Of Conformity
These products meet the relevant EC and we cannot guarantee that interference will not occur harmonized standards for radio frequency in practice. Where there is a possibility that injury, interference and may be expected not to damage or loss might occur if equipment malfunctions interfere with, or be affected by, other equipment with due to radio frequency interference, or for general advice similar qualifications. - Page 12 For technical, sales or servicing information, contact: Cole-Parmer 625 East Bunker Court Vernon Hills, IL 60061-1844 Toll-Free: 800-323-4340 Phone: 847-549-7600 Fax: 847-247-2929 www.coleparmer.com...
