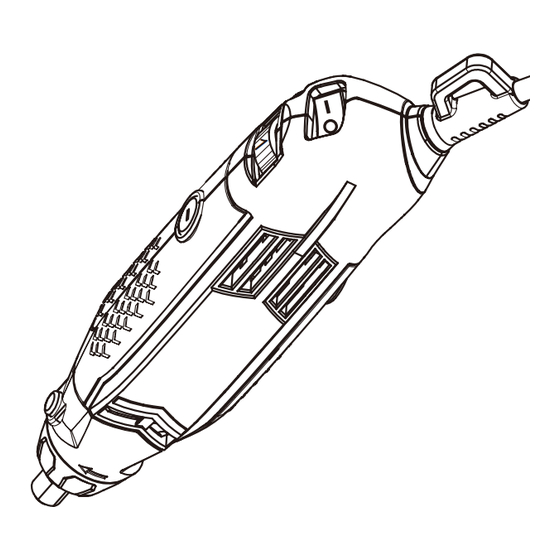

- Page 1 130W Rotary Tool TTB863MLT Barcode: 5059340264301 WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee EC declaration of conformity... - Page 3 TTB863MLT by TITAN Safety information Safety warnings General power tool safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 4: Safety Information
TTB863MLT by TITAN Safety information Safety warnings >Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. >Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. - Page 5 TTB863MLT by TITAN Safety information >Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. switch or energising power tools that have the switch on invites accidents.
- Page 6 TTB863MLT by TITAN Safety information Safety warnings >Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Page 7 TTB863MLT by TITAN Safety information >This power tool is intended to function as a grinder, sander, wire brush, polisher, carving or cut-off tool. Read all safety warnings, instructions, illustrations Failure to follow all instructions listed below may result > designed and recommended by the tool manufacturer.
- Page 8 TTB863MLT by TITAN Safety information Safety warnings >Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, sanding drum for cracks, tears or excess wear, wire brush for loose or cracked wires.
- Page 9 TTB863MLT by TITAN Safety information > the start-up. The reaction torque of the motor, as it accelerates to full speed, can cause the tool to twist. >Use clamps to support workpiece whenever practical. Never hold a small workpiece in one hand and the tool in the other hand while in use.
- Page 10 TTB863MLT by TITAN Safety information Safety warnings >Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock. Further safety instructions for all operations – Kickback and related warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, sanding band, brush or any other accessory.
- Page 11 TTB863MLT by TITAN Safety information >Do not attach a toothed saw blade. Such blades create frequent kickback and loss of control. >Always feed the bit into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown).
- Page 12 TTB863MLT by TITAN Safety information Safety warnings > Do not position your hand in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your hand, the possible kickback may propel the spinning wheel and the power tool directly at you.
- Page 13 TTB863MLT by TITAN Safety information operations >Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/ or skin.
- Page 14 TTB863MLT by TITAN Safety information Safety warnings >Visual inspection Abrasives shall be subjected to a visual inspection as received before mounting. >Mounting, before starting and information for grinding The mounting of abrasives shall be carried out according to the instructions provided by both, the abrasive and the machine manufacturer.
- Page 15 TTB863MLT by TITAN Safety information Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. >Always be alert when using this product, so that you can recognise and handle risks early.
- Page 16 TTB863MLT by TITAN Safety information Safety warnings WARNING! This product produces electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their...
- Page 17 TTB863MLT by TITAN Your product Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarize yourself with them to reduce hazards like personal injuries and damage to property.
-
Page 18: Your Product
TTB863MLT by TITAN Your product Your product Tool socket Air vents a. Clamp nut Grinding belt (x2) b. Collet 10. Cutting disc (x10) c. Spindle 11. Mandrel for cutting disc d. Threaded nut 12. Mandrel for grinding belt Spindle lock button 13. - Page 19 TTB863MLT by TITAN Before you start General > Rated voltage, frequency : 220 – 240 V~ , 50 Hz > Rated power input : 130 W > Rated speed n : max. 36000 min > Spindle thread > Protection class : II >...
- Page 20 TTB863MLT by TITAN Before you start Rating Label Explanation: TTB863MLT = Model Number 863 = Version Number TT = TITAN MLT = Rotary Tool B = 230 - 240V AC Unpacking > > Remove all packing materials and shipping devices, if applicable.
-
Page 21: Before You Start
TTB863MLT by TITAN Before you start WARNING! Always use the correct tool attachment according to the intended use! Observe the technical requirements of this product (see section Some tool attachments are very sharp and become hot during use! Handle them carefully! Wear protective gloves when handling tool attachments in order to avoid injuries like burns and cuts! Tool attachments are available in various shapes and sizes. - Page 22 TTB863MLT by TITAN Before you start Picture Num. Description Parameter/corn rpm* Usage Axial Brass brush 12.7x43.0 mm 8000 - 15000 Cleaning of electrical parts Radial Brass brush 21.0x43.0 mm For shaping and polishing of 32.0x9.5 mm Flap wheel 8000 - 15000...
- Page 23 TTB863MLT by TITAN Before you start Inserting WARNING! Specialised dealers offer collets in different sizes. > > Press the spindle lock button (2) and hold it in position while loosening the clamp nut (1a) with the wrench (14) (Fig. 3).
- Page 24 TTB863MLT by TITAN Before you start Removing/Replacing NOTE: Replace the tool attachment if it is worn or shows damage. Never use a tool attachment which is damaged or worn in order to avoid hazards and resulting injuries and damages. >...
- Page 25 TTB863MLT by TITAN Before you start Connection to power supply > Make sure the on/off switch (5) is in its off position. > Connect the plug with a suitable socket. WARNING! Check the voltage! The voltage must comply with the information on the rating label! >...
-
Page 26: In More Detail
TTB863MLT by TITAN more detail... Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee EC declaration of conformity... - Page 27 TTB863MLT by TITAN Product functions Intended use The intended use of this product includes the use of the corresponding tool attachment: > rough grinding of wood, welds, plastics, leather and steel; > abrasive cutting of hooks, nails and screws; >...
- Page 28 TTB863MLT by TITAN Product functions Speed dial Recommended rotational speed Material Speed stages Hardwood (beech) 4 – 6 Softwood (pine) 5 – 6 Chipboard 3 – 5 Plastic 2 – 3 Aluminium 1 – 4 Speed stages Approx. speed 8000...
- Page 29 TTB863MLT by TITAN Operation General operation > Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. > > Always hold the product on its handle/gripping surface (3). Keep the handle/ gripping surface dry to ensure safe support.
- Page 30 TTB863MLT by TITAN Operation Handling > application and switch it on. > Wait until the tool attachment has reached its full speed before applying it to the workpiece. > Move the product slowly toward the work piece. > Work with steady, careful movements.
- Page 31 TTB863MLT by TITAN Care and maintenance The golden rules for care WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! > Keep the product clean. Remove debris from it after each use and before storage.
- Page 32 TTB863MLT by TITAN Care and maintenance Power cord If the power cord is damaged, it must be replaced by the manufacturer, its service UK plug IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
- Page 33 TTB863MLT by TITAN Care and maintenance Repair This product does not contain any parts that can be repaired by the consumer. checked and repaired. Storage > Switch the product off and disconnect it from the power supply. > Clean the product as described above.
-
Page 34: Troubleshooting
TTB863MLT by TITAN Troubleshooting / Recycling and disposal Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! -
Page 35: Guarantee
We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product TITAN 130W rotary tool has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost. - Page 36 TTB863MLT by TITAN Guarantee This guarantee does not cover defects and damage caused by or resulting from: Normal wear and tear Overload, misuse or neglect Repairs attempted by anyone other than an authorised agent Cosmetic damage Damage caused by foreign objects, substances or accidents Accidental damage or modification Failure to follow manufacturer’s guidelines...
-
Page 37: Ec Declaration Of Conformity
TTB863MLT by TITAN EC declaration of conformity EC declaration of conformity (UK) DECLARATION OF CONFORMITY Product • 130W Rotary Tool • TTB863MLT • Serial number: from 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited... - Page 38 TTB863MLT by TITAN EC declaration of conformity EC declaration of conformity (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARAȚIA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto •...
- Page 39 TTB863MLT by TITAN EC declaration of conformity EC declaration of conformity 2006/42/WE w zmienionej dyrektywie maszynowej 2014/30 / UE ze zmianami Dyrektywa Kompatybilność elektromagnetyczna 2011/65 / UE ze zmianami Dyrektywa Ograniczenie stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym 2006/42/CE, astfel a fost modificată...
- Page 40 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.screwfix.com | www.screwfix.ie To view instruction manuals online visit www.kingfisher.com/products...
