Titan TTB772STM Manual

Titan TTB772STM Manual

2000w wallpaper stripper

Advertisement

Quick Links

EN
2000W Wallpaper
Stripper
TTB772STM
EAN: 5059340118314
WARNING: Read the instructions before using the product!
BX220IM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTB772STM and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan TTB772STM

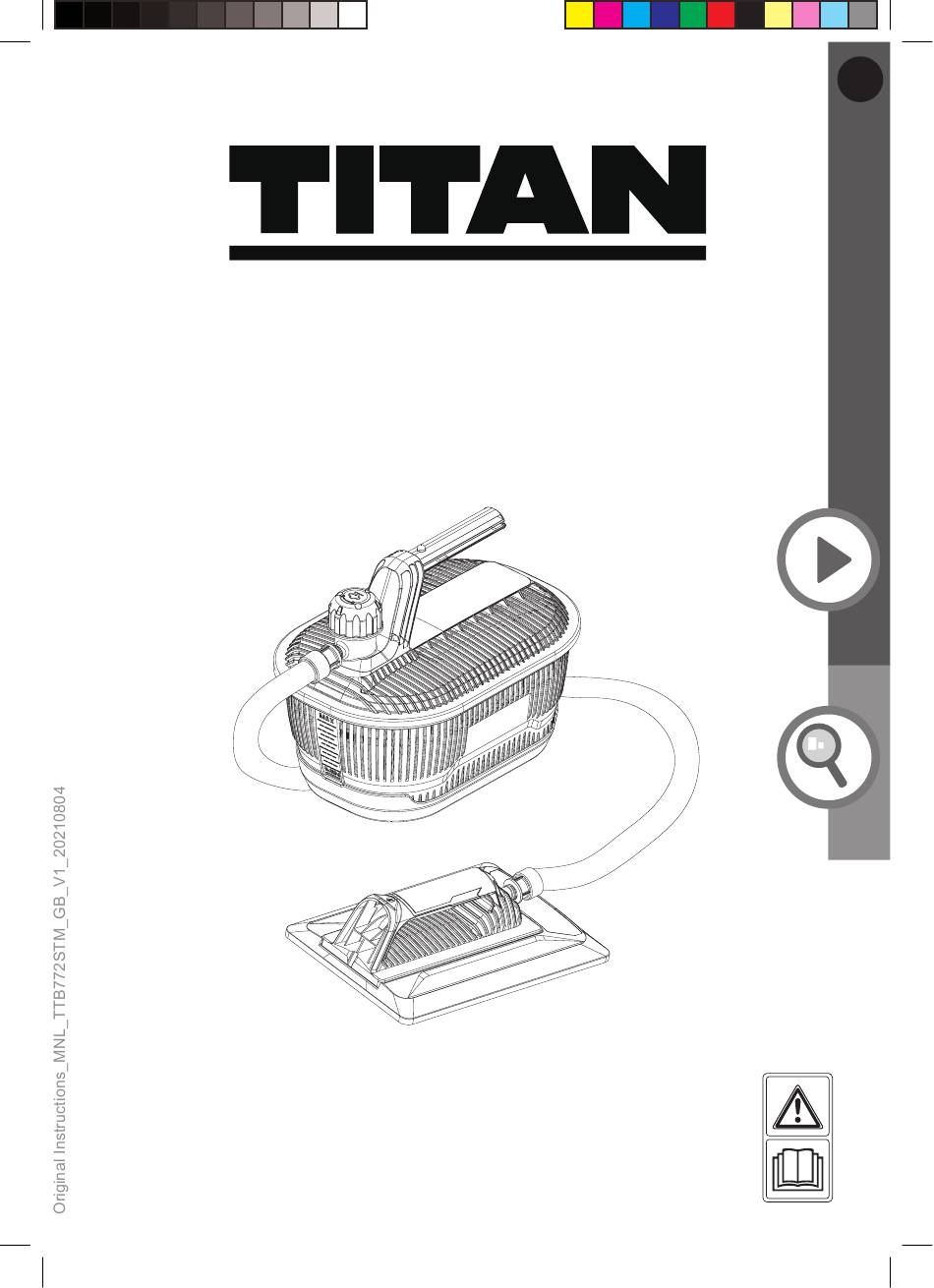

  • Page 1 2000W Wallpaper Stripper TTB772STM EAN: 5059340118314 WARNING: Read the instructions before using the product! BX220IM...
  • Page 2 Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Technical and legal information Your product Technical Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee...
  • Page 3: Safety Warnings

    Technical and legal information TTB772STM by TITAN Safety warnings 1. This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
  • Page 4 Technical and legal information TTB772STM by TITAN Safety warnings 4. Do not abuse the cord • Never yank the cord to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges. 5. Disconnect the product •...
  • Page 5 Technical and legal information TTB772STM by TITAN 3. Do not use the product if it has been dropped, if there are visible signs of damage or leakage. 4. Do not remove the safety cap during use. Always allow the water tank to cool down for at least 3 minutes after use before attempting to remove the safety cap.
  • Page 6 Technical and legal information TTB772STM by TITAN Safety warnings 13. Never touch the plug and / or socket with wet hands. 14. Do not step on or place items on the water tank or hose. 15. Never use the steam plate directly above your head as boiling water may drip from the plate.
  • Page 7: Symbol Explanation

    Technical and legal information TTB772STM by TITAN 27. Ensure that the product is in good condition and well maintained. 28. Use correct attachments for the product and ensure they are in good condition. 29. Never put descaling, aromatic, alcoholic or detergent products into the water tank, as this can damage the product or make it unsafe for use.
  • Page 8 Technical and legal information TTB772STM by TITAN Symbol explanation Note / Remark. Caution / Warning. Read the instruction manual. WARNING! Beware of electric shocks. Wear eye protection. Wear protective gloves. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
  • Page 9: Product Description

    Your product TTB772STM by TITAN Product description 1. Safety cap b. Socket* 2. Carry handle c. Water level indicator a. Lock button (MIN / MAX)* 3. Steam plate d. Hose connector* a. Hose connector* 5. Hose b. Apron a. Hose adaptor (x2) c.
  • Page 10 TTB772STM by TITAN General > Rated voltage, frequency : 230-240 V~, 50 Hz > Rated power input : 2000 W > Degree of protection : IPX4 > Protection class > Tank capacity : 4 l > Hose length : 3 m >...
  • Page 11: You Will Need

    Before you start TTB772STM by TITAN You will need (Items not supplied) (Items supplied) Suitable personal protective equipment Steam plate (3) Scraper Water tank (4) Hose (5) Assembly WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with...
  • Page 12 Before you start TTB772STM by TITAN Assembly Fig. 3 Fig. 4 WARNING! Do not use this product with a damaged hose (5) or steam plate (3)! Check that both hose connectors (3a, 4d) on the steam plate (3) and water tank (4) are free of damage before assembly.
  • Page 13: Filling With Water

    Before you start TTB772STM by TITAN > After use, once the product has cooled down, unscrew both hose adaptors (5a) in an anti-clockwise direction from the steam plate (3) and water tank (4) hose connectors (3a, 4d). NOTE: Slightly unscrew the safety cap (1), once the product has cooled down.
  • Page 14: Connection To Power Supply

    Before you start TTB772STM by TITAN Filling with water > Screw the safety cap (1) back onto the water tank (4). Do not overtighten. NOTE: reduce lime scale deposits. It is not necessary to use distilled water. It is possible to shorten the preheat time by adding hot water, but never pour boiling water into the tank.
  • Page 15 TTB772STM by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee...
  • Page 16: Intended Use

    Product functions TTB772STM by TITAN Intended use This wallpaper stripper TTB772STM is designated with a nominal power of 2000 Watts. This product is intended for wallpaper stripping and can also be used for some cleaning tasks. The product must never be left unattended while it is connected to power supply or cooling down.
  • Page 17: General Operation

    TTB772STM by TITAN Product functions / Operation NOTE: Should the thermal protection continuously be activated even after following the steps under “Troubleshooting”, do not use the WARNING! The product is not designed for continuous use. Let it rest for 15 minutes after each hour of running.
  • Page 18 Operation TTB772STM by TITAN Stripping NOTE: Place a suitable element, such as a wooden board, under the product to avoid marking and / or damaging the surface due to heat generated by the product. > Ensure the water level in the water tank (4) is located between the MIN and MAX markings and then connect the product to power supply.
  • Page 19: After Use

    TTB772STM by TITAN Operation / Care and maintenance Operation / Care and maintenance > Keep working along the strip of wallpaper until it can be completely removed from the wall. > Repeat above steps until all wallpaper strips have been removed from the walls.
  • Page 20: General Cleaning

    Care and maintenance TTB772STM by TITAN General cleaning > Clean the product with a dry cloth. Use a brush for areas that are hard to reach. NOTE: Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.
  • Page 21: Power Cord

    TTB772STM by TITAN Care and maintenance Power cord If the power cord is damaged, it must be replaced by the manufacturer, its service UK plug IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
  • Page 22 Care and maintenance TTB772STM by TITAN Repair This product does not contain any parts that can be repaired by the consumer. checked and repaired. Storage > Disconnect the product from the power supply to switch it off and unplug the power cord from the product.
  • Page 23: Troubleshooting

    TTB772STM by TITAN Troubleshooting Troubleshooting Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must specialist if you cannot solve the problem yourself!
  • Page 24: Recycling And Disposal

    Troubleshooting / Recycling and disposal TTB772STM by TITAN Troubleshooting 5. Escaping 5.1. Loose connection 5.1. Tighten connection steam from 5.2. Damaged hose 5.2. Replace with a suitable hose / hose connection 5.3. Steam release openings 5.3. Remove blockage and / or steam plate is...
  • Page 25 We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN 2000W Wallpaper Stripper) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non -professional or commercial) household use.
  • Page 26 Manufacturer,Fabricant,Producent, Producător,Fabricante: UK Manufacturer Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
