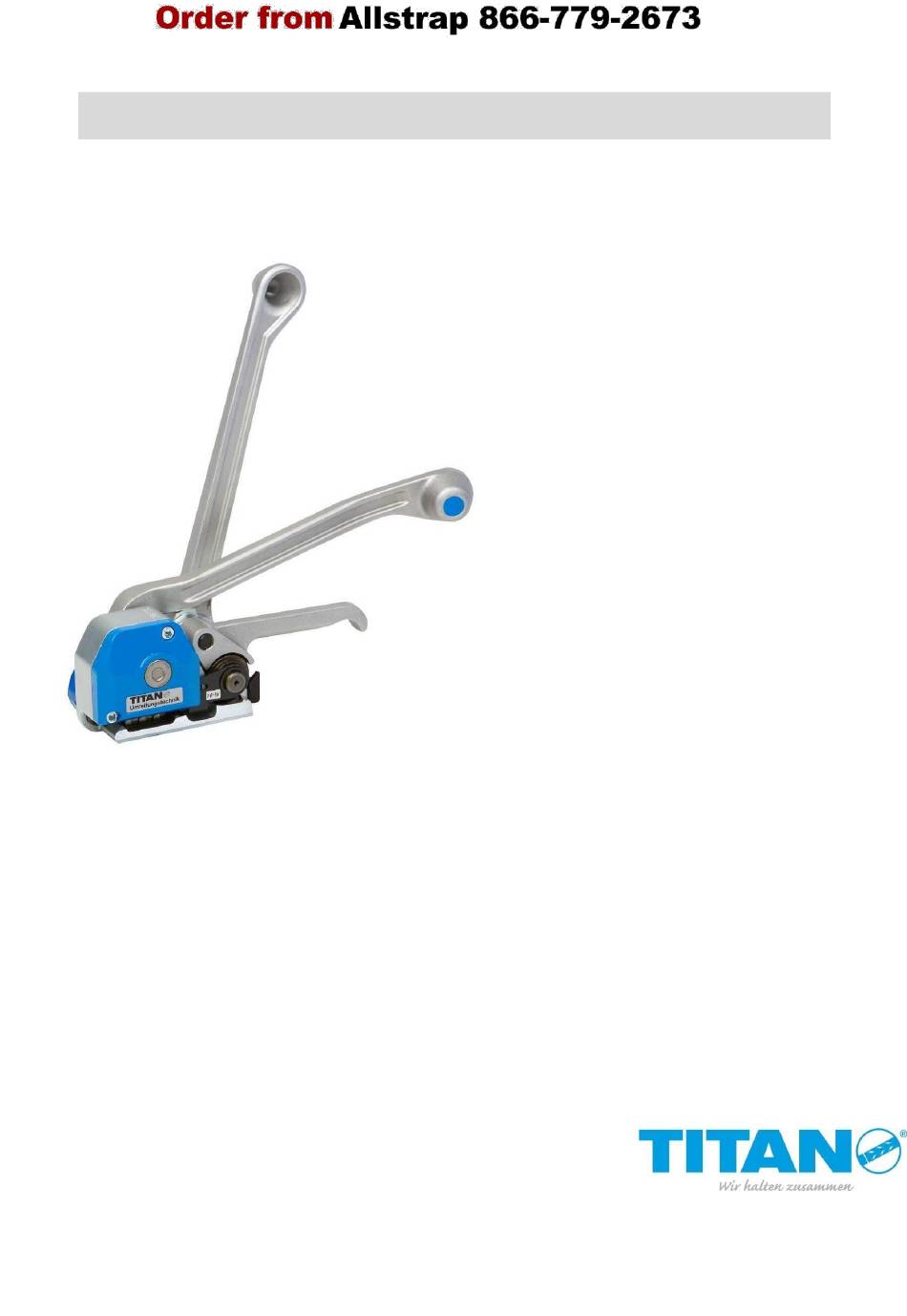

Page 1: Instruction Manual

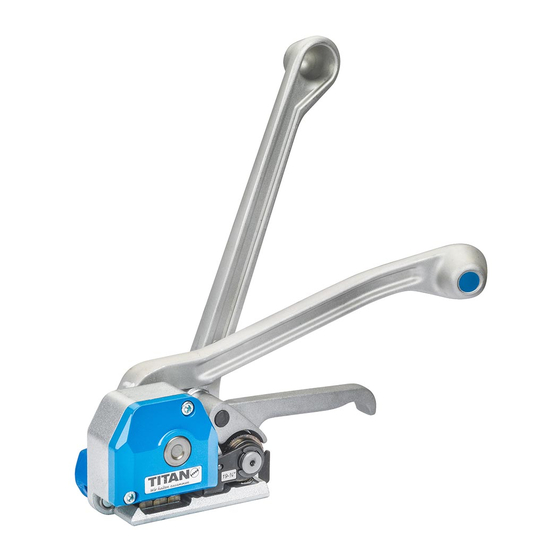

Instruction manual HKE-L 000200 Combined strapping tool for steel strap Important! Do not dispose of this manual. It is the customers responsibility to ensure that all operators and servicemen read and understand this manual. -
Page 2: General Information
Many thanks for your confidence in the technology of TITAN Umreifungstechnik GmbH & Co. KG These operating instructions are intended to simplify familiarisation with the HKE-L and the possibilities of application for the intended purpose. The operating instructions contain important information concerning the safe, proper and efficient use of the strapping tool. - Page 3 The use of plastic straps is not allowed with this device. The strapping tool HKE-L complies with the German and European safety standards and is in accordance with EU Guidelines: see Declaration of conformity of the machinery.
-
Page 4: Safety Instructions
Attention: The lower part of the area. strap will fly outward. Use only original TITAN replacement parts! The use of other than original TITAN replacement parts will void the warranty and all liability. -
Page 5: Technical Data
Steel strap for Standard quality High quality strap width 13, 16, 19 mm (Automatenband) (Megaband) 0.4 – 0.6 mm 0.4 – 0.63 mm Strap thickness Tensile strength up to approx. 900 N/mm² up to approx. 1.100 N/mm² HKE-L H 223 EU 22/11... - Page 6 Strap clamped by pressure on gripper plate1/2 Tensioning by turning feed wheel 1 Sealing by punching the strap 3 Cutting the strap with cutter 4 Attention! When changing the feed wheel strictly observe the moving direction! Arrow HKE-L H 223 EU 21/06...
-
Page 7: Operating Instructions
Operating instructions TITAN steel strap around package from top. Pull end of strap until it is positioned in the middle of the package below the upper strap. Pull through the strap end until it is in the centre of the package beneath the upper run of strap and juts out approx. - Page 8 508 back into its initial position. The right hand remains there and provides support for the joining process. The TITAN “No-seal” joint is formed by pushing the cutting lever 35 forwards rapidly with the left hand until it strikes against the case;...
- Page 9 HKE-L H 223 EU 05/10...
- Page 10 0.2 mm gap at the adjusting screw 84. Note! The feed wheel and the gripper plate may not come into contact with each other. Otherwise both parts will be subject to premature wear. HKE-L H 223 EU 21/06...
- Page 11 DIN 125-6.4 under the strap guide: 13 mm band width = 2 washers 16 mm band width = 1 washer 19 mm band width = no washer Fasten cap screw again after adjustment. HKE-L H 223 EU 21/06...
-
Page 12: Maintenance
8.2. Tool inspection Perform a daily visual inspection of the outside of the unit. The early detection of damaged parts extends the life of the unit. Replace all damaged parts immediately with Original TITAN spare parts. HKE-L H 223 EU 05/10... -
Page 13: Declaration Of Conformity Of The Machinery
Declaration of conformity of the machinery...
