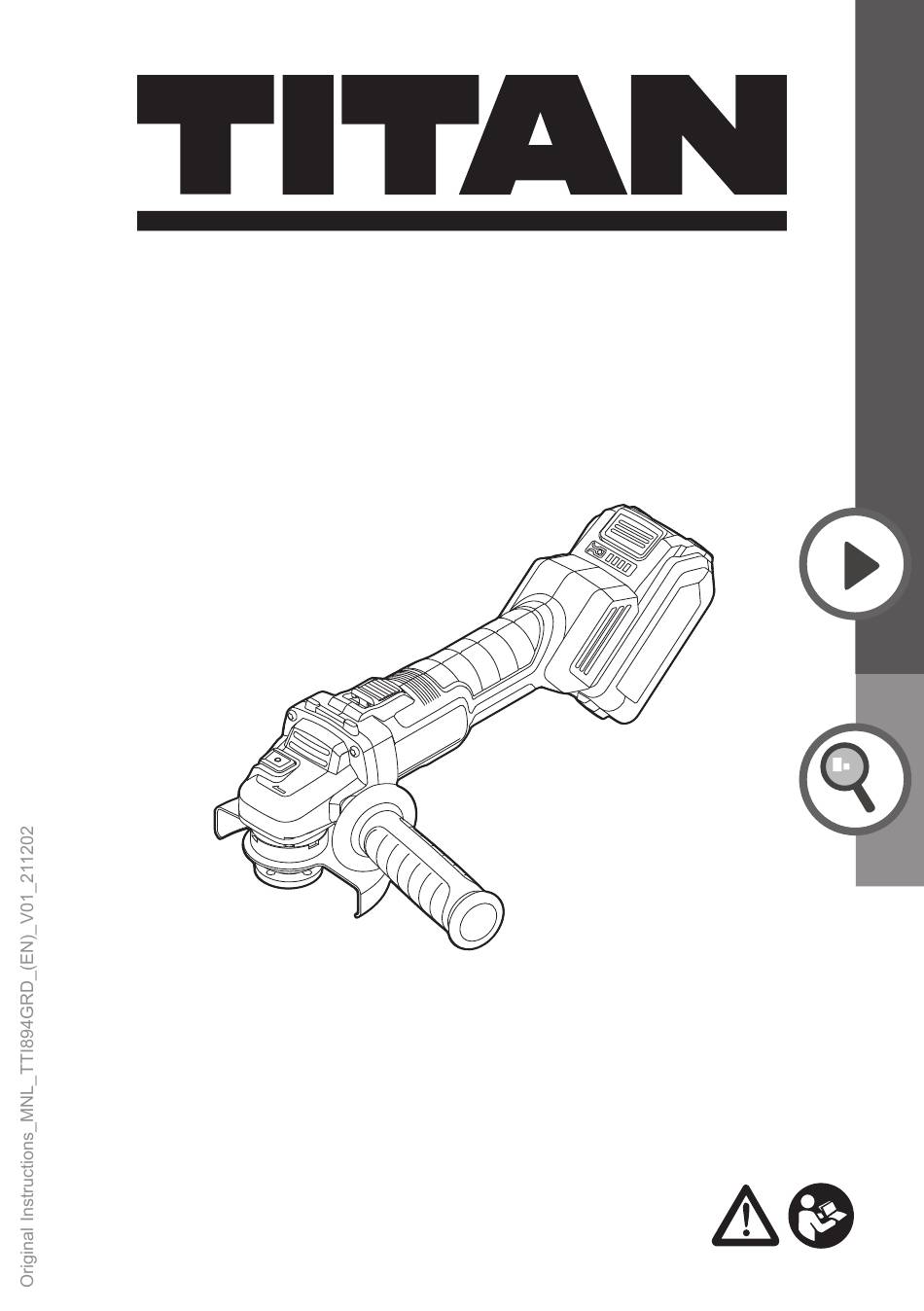

  • Page 1 TTI894GRD WARNING! Read the instructions before using the product!

  • Page 2: Table Of Contents

    TTI894GRD Let's get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety Symbols Your product Technical and legal information Before you start more detail... Product functions...
  • Page 3 Safety TTI894GRD Safety warnings General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 4: Safety

    Safety TTI894GRD Electrical safety 1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
  • Page 5 Safety TTI894GRD Personal safety 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 6 Safety TTI894GRD 7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
  • Page 7 Safety TTI894GRD 5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  • Page 8 Safety TTI894GRD 3. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. 4. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,...
  • Page 9 Safety TTI894GRD Service 1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 2. Never service damaged battery packs. Service of battery packs should only be performed by the...
  • Page 10 Safety TTI894GRD 3. Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. 4. The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool.
  • Page 11 Safety TTI894GRD Damaged accessories will normally break apart during this test time. 8. Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments.
  • Page 12 Safety TTI894GRD 12. Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. 13. Do not run the power tool while carrying it at your side.
  • Page 13 Safety TTI894GRD uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that...
  • Page 14 Safety TTI894GRD 4. Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. 5. Do not attach a saw chain woodcarving blade or toothed saw blade.
  • Page 15 Safety TTI894GRD side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter. 5. Always use undamaged wheel flanges that are of correct size and shape for your selected wheel.
  • Page 16 Safety TTI894GRD 3. When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur.
  • Page 17 Safety TTI894GRD 3. Do not pierce the battery with nails, strike the battery with a hammer, step on the battery or otherwise subject it to strong impacts or shocks. 4. Do not solder directly onto the battery. 5. Do not expose battery to water or salt water, or allow the battery to get wet.
  • Page 18 Safety TTI894GRD The following information applies to professional users only but is good practice for all users: Additional safety warning for construction dust The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsumdusts.
  • Page 19 Safety TTI894GRD it is tiny – like a small pinch of salt: This limit is the legal maximum; the most you can breathe after the right controls have been used. How to reduce the amount of dust? 1. Reduce the amount of cutting by using the best sizes of building products.
  • Page 20 Safety TTI894GRD Safety warnings WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paint •...
  • Page 21 Safety TTI894GRD See technical specifications in the instruction manual for the vibration levels of your tool. The declared vibration emission value should be used as a minimum level and should be use with the current guidance on vibration. Calculating the actual period of use can be difficult and the HSE website has further information.
  • Page 22 Safety TTI894GRD Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.

  • Page 23: Symbols

    Symbols TTI894GRD Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Read the instruction manual Wear eye protection Wear hearing protection.

  • Page 24: Your Product

    Your product TTI894GRD Your product 9. Auxiliary handle 1. Spindle lock button 10. Grinding safety guard 2. Mounting threads (×2) 11. Guard clamping lever 3. On/off switch 12. Spindle 4. Gripping surface 13. Inner flange 5. Battery release button 14. Outer flange 6.

  • Page 25: Technical And Legal Information

    Technical and legal TTI894GRD information Technical specifications Angle grinder Rated voltage: 18V d.c. Rated speed n: 8500 /min Spindle thread: Maximum wheel diameter Ø115mm(4 1/2”) Maximum thickness of grinding wheel: Wheel bore: Ø22.23mm Weight (without battery): 1.6 kg Battery (may not be included)
  • Page 26 RATING LABEL EXPLANATION TTI894GRD = MODEL NUMBER TT = TITAN I=18V Li-Ion 894 =Serial number...
  • Page 27 Before you start TTI894GRD Unpack Unpack all parts and lay them on a flat, stable surface. Remove all packing materials and shipping devices if applicable. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 28 Before you start TTI894GRD Auxiliary handle For all work with the machine, the auxiliary handle (9) must be mounted. Screw the auxiliary handle (9) in one of the two mount- ing threads on both sides of the machine head depending on the working method (Fig.
  • Page 29 Before you start TTI894GRD The closed side of the safety guard (10) must always point to the operator. Fig.2 Wheel guard for cutting WARNING! For cutting, always work with the wheel guard for cutting. For grinding, always work with the wheel guard for grinding.
  • Page 30 Before you start TTI894GRD Mounting the grinding/cutting wheels (sold separately) Before any work on the machine itself, remove the battery pack. Grinding and cutting wheels become very hot while working; do not touch until they have cooled. Spindle lock button Clean the grinder spindle and all parts to be mounted.
  • Page 31 Before you start TTI894GRD Grinding/cutting wheel (sold separately) Pay attention to the dimensions of the grinding/cutting wheel. The mounting hole diameter must fit the inner flange (13) without play. Do not use reducers or adapters . When using a diamond cutting disc, take care that the direction-...

  • Page 32: Before You Start

    Before you start TTI894GRD After recharge, slide it back into your tool. A simple push and slight pressure will be sufficient. (Fig. 7). Fig.6 Fig.7 Battery pack power bar The Li-Ion battery pack (7) is equipped with a POWER BAR which is used to give an indication of the battery pack’s remaining...

  • Page 33: In More Detail

    TTI894GRD detail... more Product functions Operation Care and maintenance Trouble shooting Guarantee Declaration of conformity...
  • Page 34 Product functions TTI894GRD Intended use This tool is intended for cutting and grinding metal and stone materials without using water. For grinding or cutting, safety guard must be used. Operating instructions • Clamp the workpiece if it does not remain stationary due to its own weight.
  • Page 35 Operation TTI894GRD Hand grip areas Always hold your angle grinder firmly with both hands when operating. Working hints for your angle grinder If your power tool becomes too hot, run no load for 2-3 minutes to cool the motor. Never start your angle grinder with the disc/ ac- cessory in contact with the workpiece.

  • Page 36: Operation

    Operation TTI894GRD Grinding The best grinding results are achieved when setting the machine at an angle of 15°to 30°. Move the machine back and forth with moderate pressure. In this manner, the workpiece will not become too hot, discolor and no grooves are formed (Fig. 9).
  • Page 37 Operation TTI894GRD Fig.10 The golden rules for cleaning WARNING! Always switch the product off, remove the battery pack and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris and dust from it after each use and before storage.
  • Page 38 Operation TTI894GRD General cleaning WARNING! Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. • Clean the product with a dry cloth. Use a brush for areas that are hard to reach.

  • Page 39: Care And Maintenance

    Care and maintenance TTI894GRD Maintenance Before and after each use, check the product and accessories (or attachments) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements. Recycling and disposal Waste electrical products should not be disposed of with household waste.
  • Page 40 Care and maintenance TTI894GRD Storage • Clean the product as described above. • Store the product and its accessories in a dark, dry, frost- free, well- ventilated place. The ideal storage temperature is between 10 °C and 30 °C. •...

  • Page 41: Trouble Shooting

    Troubleshooting TTI894GRD Trouble shooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within...

  • Page 42: Guarantee

    We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN Angle grinder) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
  • Page 43 TTI894GRD EC declaration of conformity (UK) DECLARATION OF CONFORMITY Product • Cordless Angle Grinder • TTI894GRD • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
  • Page 44 • Cordless Angle Grinder/Meuleuse d'angle sans fil/Szlifierka kątowa bezprzewodowa/Polizor unghiular fără fir/Amoladora angular inalámbrica/ Rebarbadora de ângulo sem fios • TTI894GRD • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
  • Page 45 TTI894GRD The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: L’objet de la déclaration décrit ci-dessus est conforme à la législation d’harmonisation de l’Union applicable: Wymieniony powyżej przedmiot niniejszej deklaracji jest zgodny z odnośnymi wymaganiami unijnego prawodawstwa harmonizacyjnego: Obiectul declarației descris mai sus este în conformitate cu legislația relevantă...
  • Page 46 TTI894GRD References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared: Références des normes harmonisées pertinentes appliquées, y compris la date de celles-ci, ou des autres caractéristiques techniques, y compris la date de celles-ci, par rapport auxquelles la conformité...
  • Page 48 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
