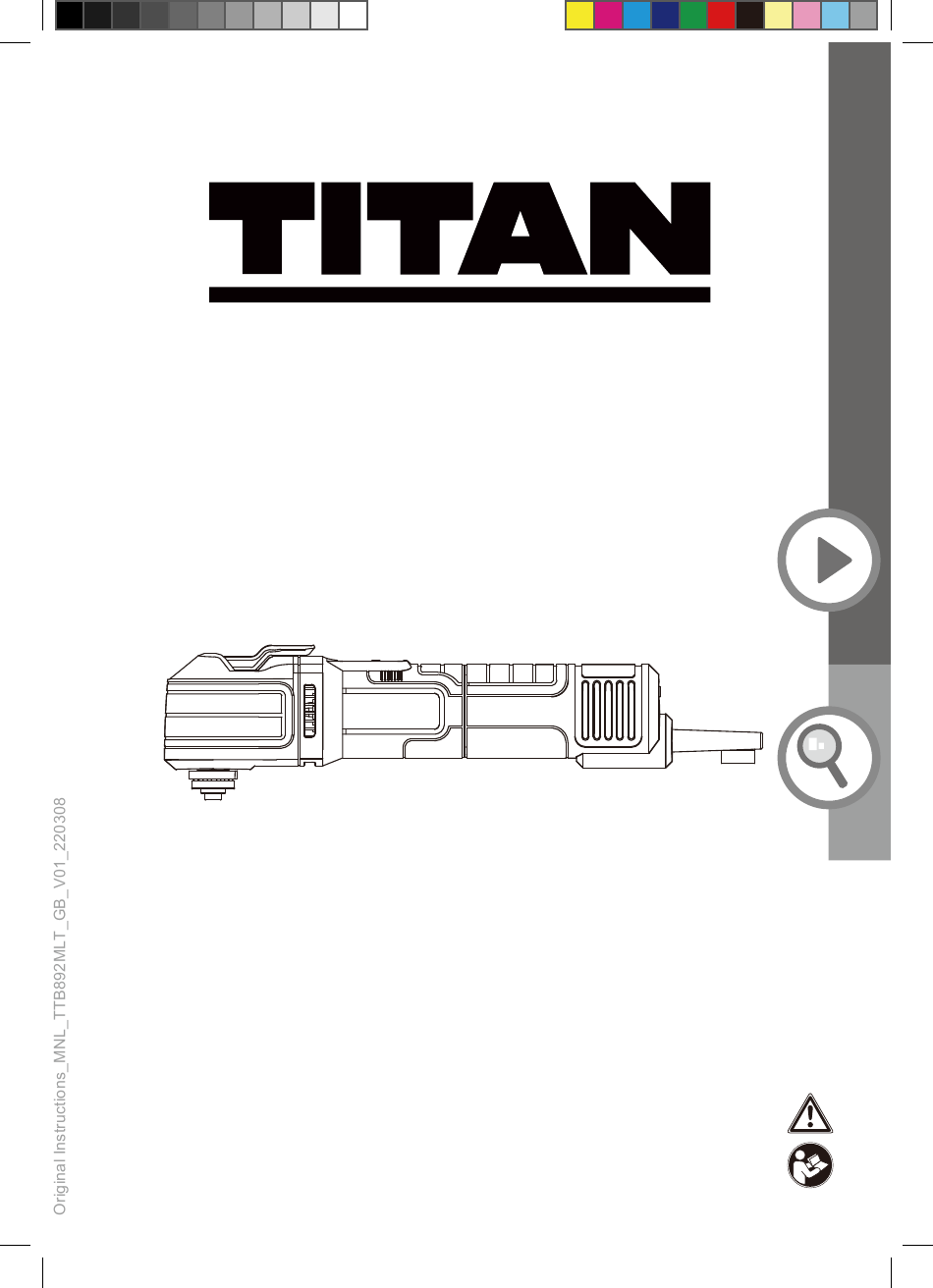

- Page 1 TTB892MLT WARNING: Read the instructions before using the product!
- Page 2 Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Declaration of conformity...
- Page 3 TTB892MLT Safety information Safety warnings General power tool safety warnings WARNING! Read safety warnings, instructions, illustrations and specifications provided with this power tool.Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.The term "power tool"...
- Page 4 TTB892MLT Safety information Safety warnings > Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, >...
- Page 5 TTB892MLT Safety information > Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all >...
- Page 6 TTB892MLT Safety information Safety warnings Maintain power tools and accessories. Check for > misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 7 TTB892MLT Safety information Safety warnings Safety instructions for multi tool >Take special care to protect yourself and people around against dusts, including the following: • All persons entering the work area must wear an appropriate dust mask specially designed for protection...
- Page 8 TTB892MLT Safety information Safety warnings >Do not touch the moving tool attachment. >Do not scrape wet or dampened materials (e. g. wallpaper) or on moist surfaces. Penetration of water into the product increases the risk of an electric shock. >Where possible, secure smaller workpieces to prevent them from moving under the product.
- Page 9 TTB892MLT Safety information >Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. >Keep the handles dry to ensure safe control. Grip the product securely with two hands so you have full control at all times.
- Page 10 TTB892MLT Safety information Safety warnings >Plan your work schedule to spread any high vibration tool use across a longer period of time. >Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g.
- Page 11 TTB892MLT Safety information >Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use. > objects. This product produces WARNING! may under some circumstances interfere with active or passive medical implants! To reduce...
- Page 12 TTB892MLT Safety information Safety warnings • Lung cancer • Silicosis • Chronic Obstructive Pulmonary Disorder (Chronic obstructive pulmonary disease (COPD)) the development of Asthma. The risk of lung disease is linked to people who regularly breathe construction dust over a period of time, not on the odd occasion.
- Page 13 TTB892MLT WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paint • Crystalline silica from bricks and cement and other masonry products •...
- Page 14 TTB892MLT Safety information Safety warnings the HSE website has further information. The declared vibration total value has been measured in accordance with EN 62841-1 and EN 62841-2-4 and may be used for compare one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.
- Page 15 TTB892MLT Safety information WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
- Page 16 TTB892MLT Safety information Symbols others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt (alternating voltage) Kilogram Hertz °C Degree Celsius Watt dB(A) Decibel (A-rated) /min or Per minute m/s²...

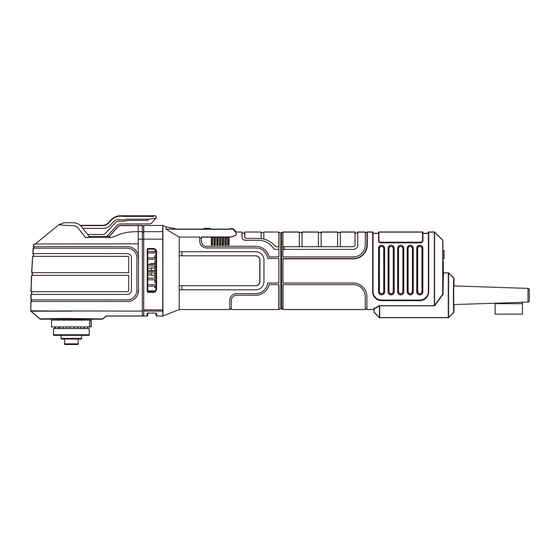

- Page 17 TTB892MLT Your product Your product 1. SDS clamping lever 9. Segment saw blade 2. On/Off switch 10. Plunge saw blade for metal 3. Hand grip 11. Sanding paper 4. Speed dial* (60# x3, 120# x3, 240# x3) 5. Hex key 12.
- Page 18 (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). RATING LABEL EXPLANATION TTB892MLT = Model number TT = TITAN B = 220-240V ~ 892 = Serial Number...
- Page 19 TTB892MLT Before you start Unpacking > > Remove all packing materials and shipping devices, if applicable. > Make sure the delivery contents are complete and free of any damage. If you your dealer. Using an incomplete or damaged product represents a hazard to people and property.
- Page 20 TTB892MLT Before you start Setup NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid lost. Tool attachments Different tool attachments can be used with this product depending on the material being worked.
- Page 21 TTB892MLT Before you start Tool attachment Material Application Plunge saw blade Wood, plastic, Separating or for wood (8) drywall cutting, also for sawing close to edges, in corners and hard to reach areas Segment saw Wood blade (9) Plunge saw blade...
- Page 22 TTB892MLT Before you start Sanding base plate/paper Sanding paper is available with different grain sizes (grit) and for different material. The grain size is indicated with a number on the reverse of the sanding paper, the Grain size Class Application Removal of paint and varnish, preparation of rough <...
- Page 23 TTB892MLT Before you start Removing/Replacing (sanding paper) With the hook-and-loop system, sanding papers are simply removed by pulling off. > Grip one corner of the sanding paper (11) and pull it off the base plate (7) (Fig. 2). > Attach a new sanding paper as required.
- Page 24 TTB892MLT Before you start Sanding base plate/paper Removing/Replacing (Sanding base plate) > The sanding base plate can be removed following the reverse actions as instructed for “attaching”. > Check for damage and wear, clean the tool holder from dust and attach a new one if necessary.
- Page 25 TTB892MLT Before you start NOTE: Adjust the scraper (12) and plunge saw blade (8/10) at the desired angle according to the intended use. The tool holder (6) and at 30° intervals around the tool holder, from -90° to +90°. 0°...
- Page 26 TTB892MLT Before you start Tool holder adaptor parts (13, 13a) enable the product to work with popular brand accessories which cannot be attached to the quick changing tool holder (6) of this product. WARNING! Check with the dealer of the tool attachments to make sure if their tool attachments are compatible with the provided tool holder adaptor (14).
- Page 27 TTB892MLT Before you start Connection to the power supply > Make sure the on/off switch (2) is in off position (Fig. 13). “0” - Off “I” - On Fig. 13 > Connect the plug with a suitable socket. WARNING! Check the voltage! The voltage must comply with the information on the rating label! >...
- Page 28 TTB892MLT more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Declaration of conformity...
- Page 29 TTB892MLT Product functions lister Intended use This product is intended for cutting and sawing on wood, gypsum, plasterboard, can also be used for dry sanding and scraping of small surfaces, e. g. edges etc. The supplied segment saw blade is only suitable for cutting wood and must not be used on other materials.
- Page 30 TTB892MLT Operation General operation > Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. > > Always hold the product on its gripping surface. Keep the gripping surface dry to ensure safe support.
- Page 31 TTB892MLT Operation > Switch the product on before placing it on the workpiece. > Move the product back and forth with slow even speed. > workpiece. Higher pressure will not increase but lower the performance of the product and leads to uneven results.
- Page 32 TTB892MLT Operation Cutting Warning! Use the supplied saw blades only for cutting of wood, never for any other materials! WARNING! Always wear a dust mask to protect yourself against hazards resulting NOTE: Do not turn the switch on or off while the product is in contact with the workpiece.
- Page 33 TTB892MLT Operation / Care and maintenance Fig. 17 Fig. 18 WARNING! Switch the product off, let it come to a complete stop and disconnect it from the power supply if the attachment gets stuck in the workpiece. Only then free the jammed attachment.
- Page 34 TTB892MLT Care and maintenance The golden rules for care WARNING! Only perform repairs and maintenance work according to specialist! General cleaning > Clean the product with a dry cloth. Use a brush for areas that are hard to reach. > In particular clean the air vents (3a) after every use with a cloth and brush.
- Page 35 TTB892MLT Care and maintenance As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows. The wire, which is coloured blue, must be connected to the terminal, which is marked with N or coloured black.
- Page 36 TTB892MLT Care and maintenance / Troubleshooting Storage > Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C. > We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust.
- Page 37 TTB892MLT Troubleshooting / Recycling and disposal Problem Possible Cause Solution 2. Product does 2.1. Extension cord not 2.1. Use a proper extension not reach full suitable for operation cord power with this product 2.2. Power source (e. g. 2.2. Connect to another...
- Page 38 We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN Multi Tool) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
- Page 39 TTB892MLT Declaration of conformity (UK) DECLARATION OF CONFORMITY Product • Multi Tool • TTB892MLT • Serial number: from 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 40 (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Producto/Produto • Multi Tool/Outil multifunction/Multiherramienta/Multiferramenta • TTB892MLT • SN: 000001-999999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nombre y dirección del fabricante o de su representante autorizado:...
- Page 41 TTB892MLT Declaration of conformity 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique Directive 2011/65/UE relative à...
- Page 42 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.screwfix.com To view instruction manuals online, visit www.screwfix.ie www.kingfisher.com/products www.bricodepot.fr Pour consulter les manuels d’instructions en ligne, rendez-vous sur le site www.kingfisher.com/products www.bricodepot.es...
