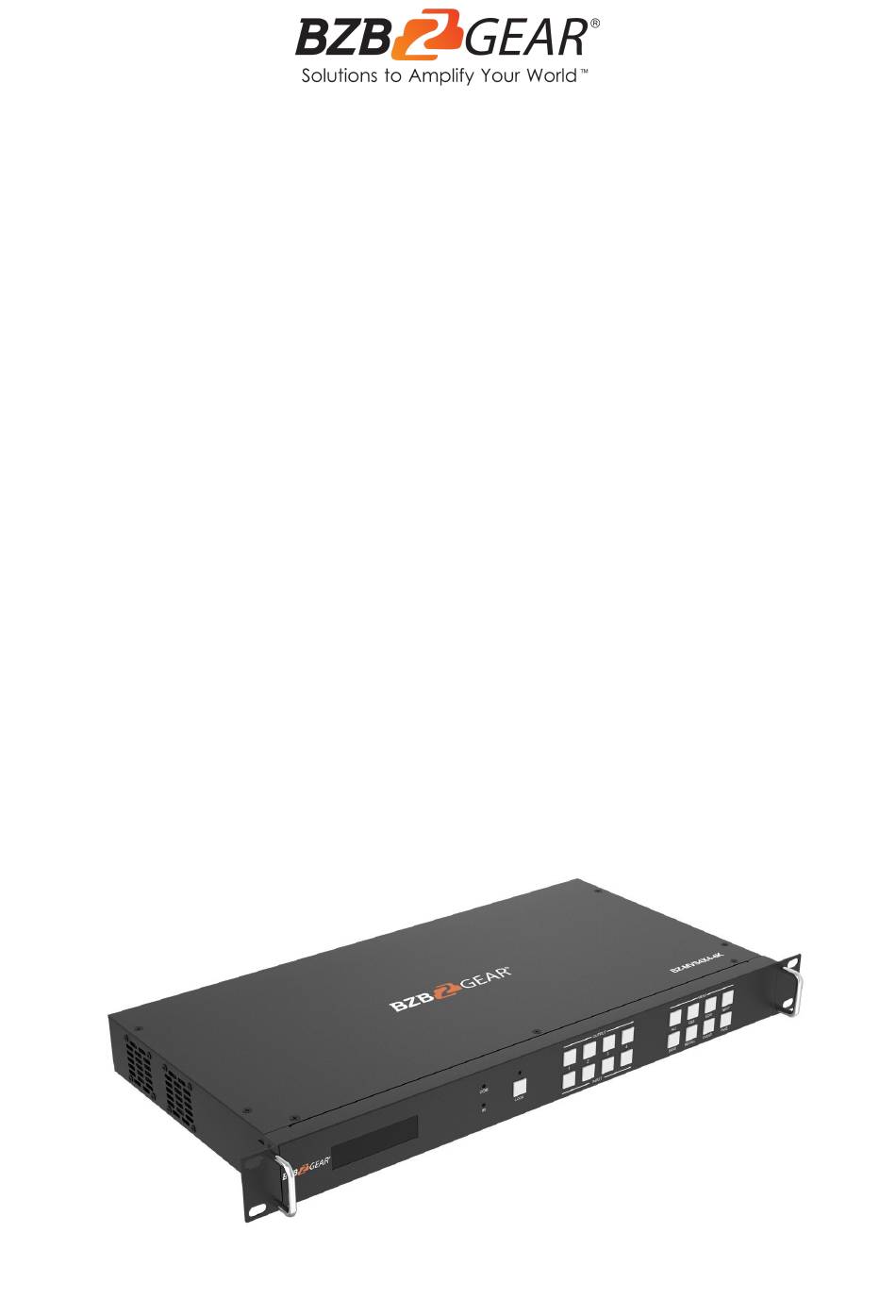

- Page 1 BZ-MVS4X4-4K 4X4 4K UHD 18Gbps HDMI Video Wall Processor & Seamless Matrix Switcher with Scaler, IR, and Audio User Manual...
- Page 2 BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions RS232/LAN Control Connection PC Tool User Guide Control via Web Interface Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BZ-MVS4x4-4K matrix and video wall processor is an incredible tool for anyone seeking a matrix switcher that can support four inputs and four outputs. The device can support multiple video walls simultaneously in various configurations such as a 1x2, 2x2, 1x4, etc. -
Page 6: Specifications
BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution Up to 4K60 4:4:4 Color Space RGB, YCbCr 4:4:4/4:2:2 HDMI Amplitude TM.D.S +/- 0.4Vpp Differential Impedance 100±15ohm Human-body Model: ESD Protection ±8kV (Air-gap discharge) , ±4kV (Contact discharge) -
Page 7: Operation Controls And Functions
BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Operation Controls and Functions Front Panel Item Description LCD Panel Displays the current video selections Power LED (also indicates control commands) LOCK Front panel lock/unlock OUTPUT Output selection buttons 1~4 INPUT Input selection buttons 1~4 Set all outputs to the next input selection... - Page 8 BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL ● Press buttons EDID + INPUT # + NEXT + TAKE to change the EDID mode of the selected input port. EDID options: Number Output Resolution Setting Number Output Resolution Setting Manual 1920 x 1080 60Hz...
- Page 9 BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Rear Panel ● LAN (10M/100M) and RS232 are for PC control. ● Analog Audio IN/OUT ports bind to their corresponding HDMI ports by default. For example: If HDMI 1 audio source is selected with External LR, then analog AUDIO IN LR1 (with phoenix connector) will be selected to replace the embedded audio of the HDMI input 1 data stream.
-
Page 10: Rs232/Lan Control Connection
BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL ● Audio Input 4 3-pin Phoenix connectors can embed external analog LR audio. The user can select this audio to replace the corresponding embedded HDMI audio. ● Audio Output 4 5-pin Phoenix connectors output balanced LR audio and 4 mini TOSLINK jackets output analog LR and digital audio respectively. -
Page 11: Pc Tool User Guide
BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Network Control Connection LAN The product also supports Network control. Connect the LAN port of the product to a PC via a CAT cable, as shown in the following figure: Note: Your PC’s network settings must be manually configured to be on the same subnet as the matrix to be able to communicate. - Page 12 BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL The PC Tool Connection Methods 1. Select one of the radials in the Ctrl Mode section (UART or Network) a. Use “UART” to connect with a RS-232 cable and set your baud rate to 9600 bps.
- Page 13 BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Matrix Switch Page 1. Allset: The Allset dropdown is a shortcut button to switch one input to all output ports. For example, to switch input 1 to all outputs users select Input1 as follows: 2. Recall: Recall an input/output routing scene which was previously saved.
- Page 14 BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Signal Setting Page 1. Audio Select There are two options for input Audio Select. a) Auto: If the input source is an HDMI signal the system will get the embedded audio; if the input source is DVI signal, the system will get the corresponding external analog audio.
- Page 15 BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Video Wall Page This page is used to configure a group of outputs to function as a video wall. 1. Use the “VideoWall Setting” controls to change how the displays are arranged on the Video Wall page: a) Adjust the ‘Rows’...
- Page 16 BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Video Wall Context Menu Right clicking on any of the screen icons which will display the following context menu: · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 17 BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Screen Stitching This option connects the selected screens into a video wall configuration. Cancel Stitching Return the Video Wall configuration to normal outputs. Remove a single screen from the video wall to allow the display of another full frame image within the video wall configuration, as shown in this example:...
-
Page 18: Control Via Web Interface
BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Layout Save/Load The Save Scene/Layout and Load Scene/Layout buttons allow a video wall configuration to be saved or recalled at any time. Up to 4 configurations, each with their own name can be saved or recalled. When saving, each Scene can optionally be given a name to identify that video wall scene setup. -
Page 19: Tech Support
BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL IP Config The IP Config tab is used to change the IP settings of the matrix switcher. Enter any necessary changes and click “Save” to program the switcher to the new settings, or click “Cancel” to reject the changes. -
Page 20: Mission Statement
BZBGEAR BZ-MVS4X4-4K PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.
