- Page 1 BG-PSC11X2-HDBT 4K 11x2 HDMI Multi-format Presentation Scaler Switcher USER MANUAL...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Table of Content Introduction ........................4 Features ......................... 4 Panel Descriptions ......................5 Front Panel ......................5 Rear Panel ......................7 Remote Control Description ..................9 Application Diagram ....................10 Specifications ....................... 10 RS-232 Pin Assignment ....................11 RS232 and Telnet Commands ..................11 Package Contents ...................... -
Page 4: Introduction

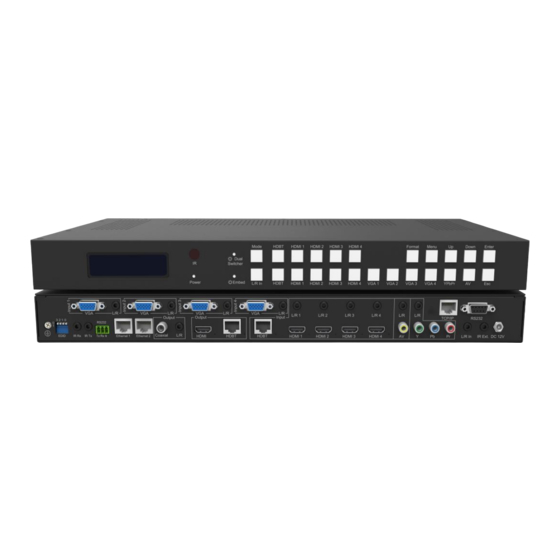

Introduction The BG-PSC11X2-HDBT is a multi-format video presentation scaler switch with audio. It features 11 inputs of various video formats including HDMI, VGA, Component, Composite, and HDBaseT with HDMI and HDBaseT outputs. Video can be scaled to various aspect ratios and resolutions from 640x480 up to 1920x1080 @ 60Hz. -
Page 5: Panel Descriptions
LCD display---Show the status of input-output selection, EDID info and so on. ② IR receiver window----Receive the IR from the remote control of BG-PSC11X2-HDBT ③ Dual switcher LED indicator---When the LED is lit, dual switcher mode is on. Output HDMI 1 is selected by HDBT/HDMI1/HDMI2/HDMI3/HDMI4 which works as 4K 5x1 switcher in by-pass mode;... - Page 6 7.1CH 4K2K NONE D1024 D1024=DVI 1024 x 768 D1080 D1080=DVI 1920 x 1080 D1200 D1200=DVI 1920 x 1200 OUT1 OUT1=Copy OUTPUT1 EDID to INPUTx OUT2 OUT2=Copy OUTPUT2 EDID to INPUTx IN10 IN11 ALL=Set EDID to ALL INPUTs Note: Volume can be changed by UP and Down button. During F/W mode，press Enter button will show the current F/W information.
-
Page 7: Rear Panel
Rear Panel ① VGA input 1 to 4--- VGA input 1 to 4 with L/R audio input. ② L/R In 1 to 4--- Connect to addition audio input to embed to HDMI output 1 to 4. ③ AV input--- AV input with L/R audio input. ④... - Page 8 ⑬ Coaxial audio output --- It will always follow HDMI output 2. ⑭ L/R audio output--- It will always follow HDMI output 2. ⑮ HDMI output--- Connect to HDTV. ⑯ HDBT output---Connect to HDBT class A receiver ⑰ HDBT input--- Connect to HDBT class A transmitter. ⑱...
-
Page 9: Remote Control Description
HDMI2/HDBT Out: Source selection for HDMI output 2 when in Matrix Switcher mode or when in Splitter mode Format: Video output resolution selection. includes in-built BG-PSC11X2-HDBT video scaler. Press the required resolution button on remote control to change the HDMI output video resolution. Setting: Bypass: Audio on HDMI outputs is from HDMI input selected. -
Page 10: Application Diagram
Application Diagram Specifications Bandwidth： 10.2Gbps Video Input Connectors: 4x HDMI Type A, 4x VGA, 1x RJ45, 1xYPbPr, 1x AV Video Output Connectors: 1x HDMI Type A, 1x RJ45 Audio Input Connectors: 11x 3.5mm stereo jack Audio Output Connectors: 1x 3.5mm stereo jack,1x RCA (SPDIF) RS-232 serial port: 1x DB 9 connector,1x 3 phoenix terminal TCP/IP... -
Page 11: Rs-232 Pin Assignment
RS-232 Pin Assignment Remote Control BG-PSC11X2-HDBT Console Assignment Assignment Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None RS232 and Telnet Commands Command Action Print Help Information HELP Print Help Information STATUS Print System Status And Port Status... - Page 12 Reset System To Default Setting (Should Type "Yes" To RESET Confirm, "No" To Discard) Set IR And RS232 Connect To Remote Valens RX/TX vv=OFF: Disconnect With Valens IR232 vv vv=RRX: Remote Valens RX vv=RTX: Remote Valens TX vv=BOTH: Remote Valens RX and TX Set OUTPUT:xx From INPUT:yy xx=00: Select All OUTPUT Port xx=[01...02]: Select One OUTPUT Port...
-
Page 13: Package Contents
PC 4K2K, HDMI 4K2K, 7.1CH PCM/DTS/DB/HD zz=12: DVI 1280x1024@60Hz, Audio None zz=13: DVI 1920x1080@60Hz, Audio None zz=14: DVI 1920x1200@60Hz, Audio None Package Contents BG-PSC11X2-HDBT 1x 12V/5A power supply. 1x Remote control. 3x IR Emitter 4x IR Receiver. 1x Rack-mounting ears... -
Page 14: Maintenance
Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. Warranty Policy BZBGEAR products are warranted against defects in material and workmanship for one year from the date of shipment. During the warranty period, BZBGEAR will, at its option, repair or replace products that prove to be defective. -
Page 15: Exclusive Remedies
The warranty does not cover replacement or repair necessitated by loss or damage from any cause beyond the control of BZBGEAR, such as lightning or other natural and weather-related events or wartime environments. The warranty does not cover any labor involved in the removal and or reinstallation of warranted equipment or parts on site, or any labor required to diagnose the necessity for repair or replacement. -
Page 16: Once You Have Obtained An Rma Number
An RMA number must first be issued by sales. This RMA number will need to be referenced on the outside of the return shipment. Upon receipt of the defective product, BZBGEAR will, at its discretion, either repair or replace the product and ship it out in the most expeditious manner possible. Subject to availability, the replacement product will be shipped on the business day following receipt of the defective product. -
Page 17: Warranty Information (Second Year Assurance)
Warranty Information (Second Year Assurance) BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1. -
Page 18: Mission Statement
Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
