Summary of Contents for BZB Gear BG-UHD-QVP-4X2

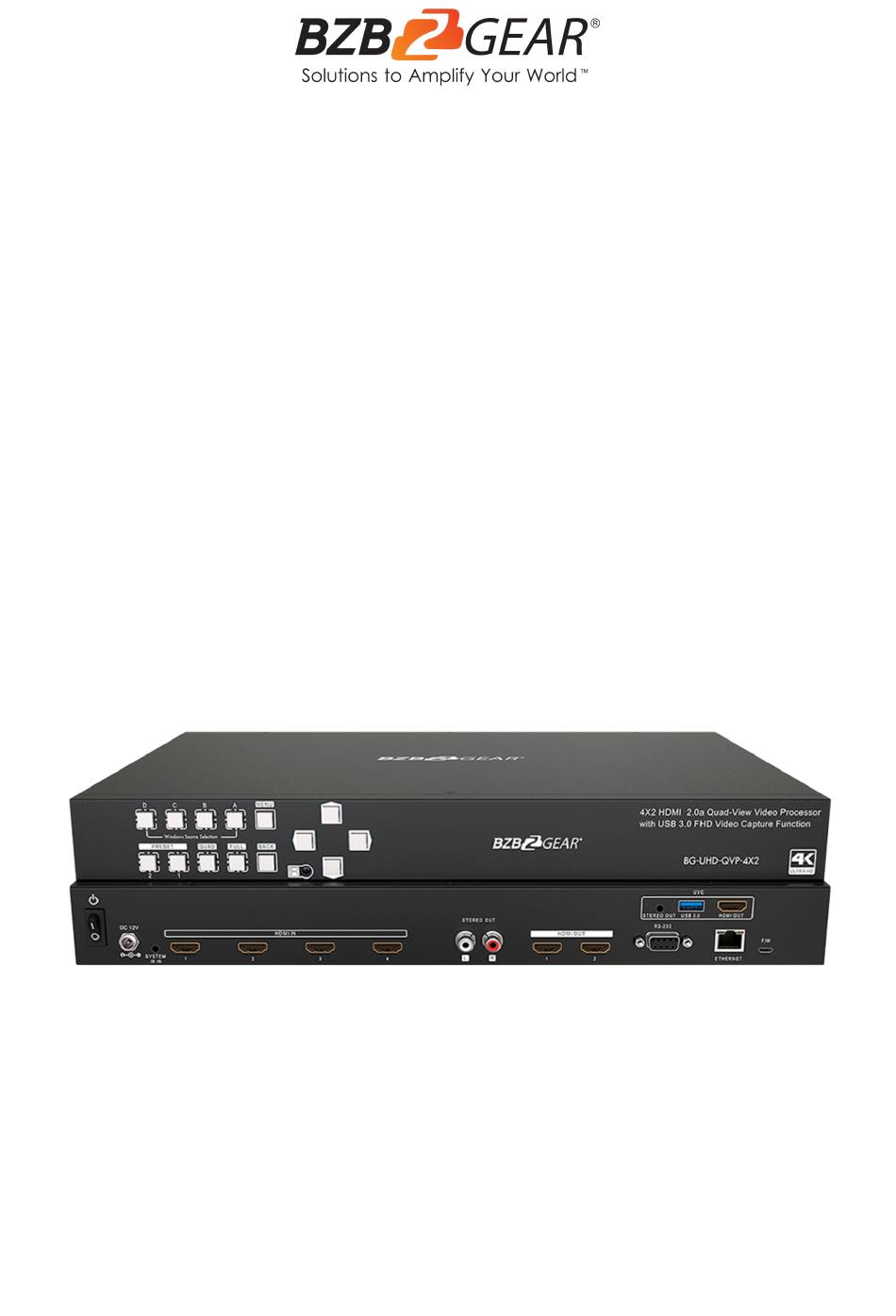

- Page 1 BG-UHD-QVP-4X2 Crestron Driver User Manual...
- Page 2 BZBGEAR BG-UHD-QVP-4X2 Crestron Driver User Manual · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-QVP-4X2 Crestron Driver User Manual Table of Contents Statement Safety Precaution Introduction Installation Inputs Outputs Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-UHD-QVP-4X2 Crestron Driver User Manual Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
BZBGEAR BG-UHD-QVP-4X2 Crestron Driver User Manual Introduction This driver has been designed to provide control for the BZBGEAR BG-UHD-QVP-4X2 via TCP/IP. Installation ● You will need to copy all of the files in the folder to your project directory to allow Simpl Windows to recognize the driver module. -
Page 6: Inputs
BZBGEAR BG-UHD-QVP-4X2 Crestron Driver User Manual Inputs The module has the following commands available as inputs: Command Type Description Serial Signal used to receive character from the connected device Factory Reset Digital Signal used to factory reset the connected device... -
Page 7: Outputs
BZBGEAR BG-UHD-QVP-4X2 Crestron Driver User Manual Set_Output_Resolution Analog Send X (range 1-11) 1. 720x480@60Hz 7. 1920x1080@50Hz 2. 720x576@50Hz 8. 1920x1080@59.94Hz 3. 1280x720@50Hz 9. 1920x1080@60Hz 4. 1280x720@59.94Hz 10. 3840x2160@30Hz 5. 1280x720@60Hz 11. 3840x2160@50Hz 6. 1920x1080@30Hz Outputs The module has the following commands available to be used as feedback outputs:... - Page 8 BZBGEAR BG-UHD-QVP-4X2 Crestron Driver User Manual FB_Input_3_Screen C Serial High to indicate that input 3 is routed to screen C. FB_Input_4_Screen C Serial High to indicate that input 4 is routed to screen C. FB_Input_1_Screen D Serial High to indicate that input 1 is routed to screen D.
- Page 9 BZBGEAR BG-UHD-QVP-4X2 Crestron Driver User Manual FB_Preset_8_Selected Serial High to indicate that preset 8 is selected. FB_Preset_9_Selected Serial High to indicate that preset 9 is selected. FB_Preset_10_Selected Serial High to indicate that preset 10 is selected. FB_Preset_11_Selected Serial High to indicate that preset 11 is selected.
-
Page 10: Tech Support
BZBGEAR BG-UHD-QVP-4X2 Crestron Driver User Manual Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.
