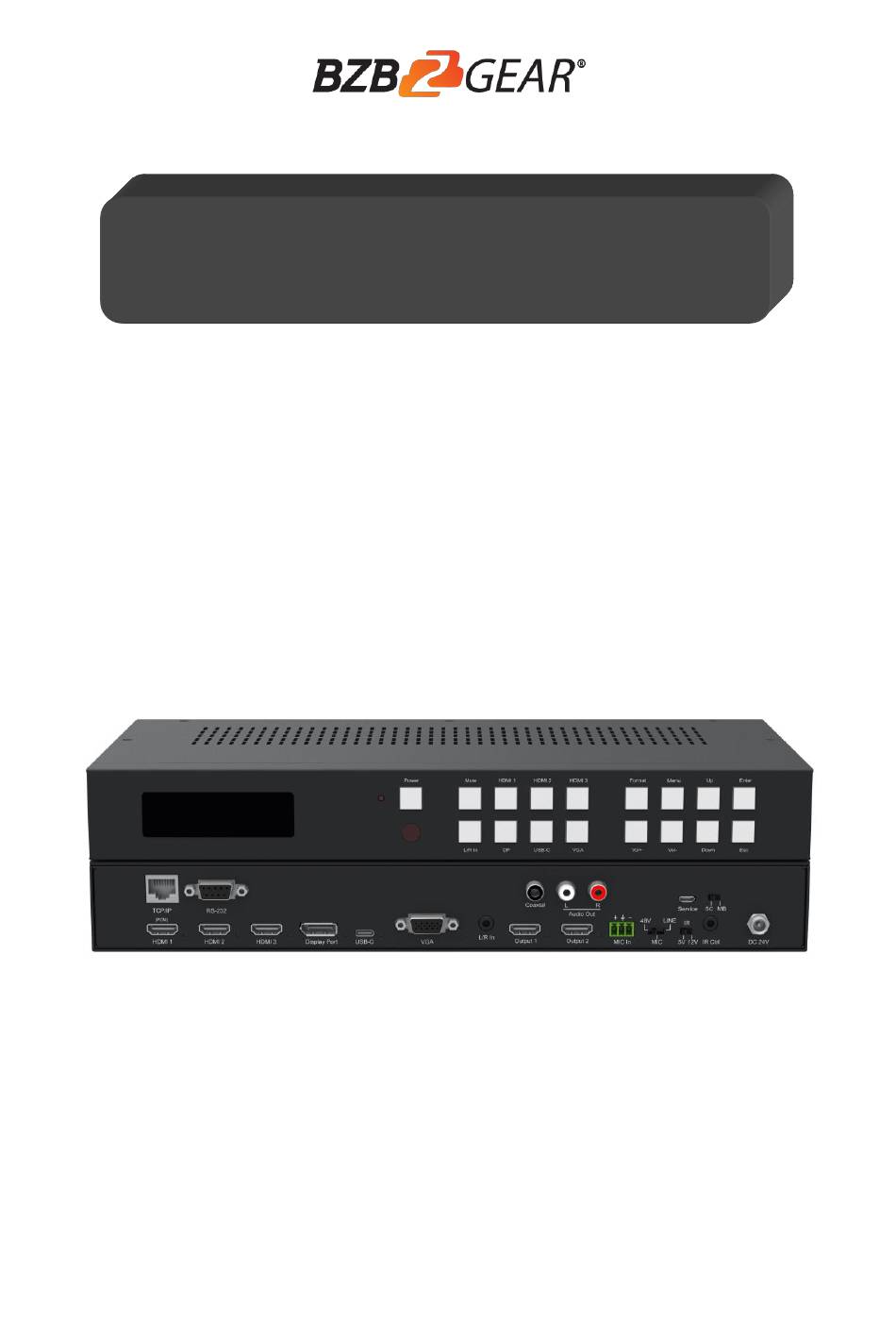

- Page 1 BG-PSC6X2-4K 4K/18Gbps 6x2 Presentation Scaler Switcher USER MANUAL...
- Page 2 Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Table of Content Introduction ........................4 Features ......................... 4 Panel Descriptions ......................5 Front Panel ......................5 Rear Panel ......................6 Remote Control Description ..................7 Application Diagram ...................... 8 Specifications ......................... 8 IR TX/RX Guidelines......................9 RS-232 Pin Assignment ....................9 RS232 and Telnet Commands .................. -
Page 4: Introduction
Introduction The BG-PSC6X2-4K is a 4K/18Gbps presentation scaler switcher supports 6 inputs including 3 HDMI inputs, 1 DisplayPort, 1 USB-C and 1 VGA, and 2 HDMI mirrored outputs. With built-in scaler chip, the video can be scaled to various aspect ratios and resolutions from 1024x 768 up to 3840x 2160 @ 60Hz. -
Page 5: Panel Descriptions
Enter button – Press to confirm the settings. IR receiver window – Receive the IR from the remote control of BG-PSC6X2-4K 10. L/R In – Press to embed analog audio into the HDMI outputs. 11. DP Input button – Press to select DisplayPort Input. -
Page 6: Rear Panel
16. Down selection button – Press to change segment’s value 17. ESC – Press to quit EDID set mode. Rear Panel TCP/IP port – RJ45 connector, for TCP/IP control. RS232 port – DB9 female connector, to control the unit from a PC or control processor. Coaxial audio output –... -
Page 7: Remote Control Description
Embed: Audio on HDMI outputs is from L/R Analogue audio input (3.5mm Jack) Format: Video output resolution selection. BG-PSC6X2-4K includes built-in video scaler. Press the required resolution button on remote control to change the HDMI output video resolution... -
Page 8: Application Diagram
Application Diagram Specifications Bandwidth： 18Gbps Video Input Connectors: 3x HDMI Type A, 1x VGA, 1x USB-C,1x DP Video Output Connectors: 2x HDMI Type A Audio Input Connectors: 1x 3.5mm stereo jack Audio Output Connectors: 1x 3.5mm stereo jack,1x RCA (SPDIF) RS-232 serial port: 1x DB 9 connector IR Input ports:... -
Page 9: Ir Tx/Rx Guidelines
IR signals. IR Receiver: Plug in the IR receiver to receiver all IR command signals from the IR remote controls of the corresponding devices. RS-232 Pin Assignment Remote Control Console BG-PSC6X2-4K Assignment Assignment Baud Rate: 57600 bps Data Bit: 8-bit... -
Page 10: Rs232 And Telnet Commands
RS232 and Telnet Commands Command Action Print Help Information HELP Print Help Information STATUS Print System Status And Port Status Power On, System Run On Normal State POFF Power Off, System Run On Power Save State IR ON/OFF Set System IR Control On Or Off KEY ON/OFF Set System KEY Control On Or Off LCD ON/OFF... - Page 11 rr=12: 4K2K@50Hz rr=13: 4K2K@60Hz rr=14: Auto EDID xx CP yy Set Input:xx EDID Copy From Output:yy yy=[00]: Set Input:xx EDID To Default EDID:zz xx=00: Select All INPUT Port xx=[01...05]: Select One INPUT Port yy=[01...02]: Select One OUTPUT Port zz=00: HDMI 1080p@60Hz, Audio 2CH PCM zz=01: HDMI 1080p@60Hz, Audio 5.1CH DTS/DOLBY zz=02: HDMI 1080p@60Hz, Audio 7.1CH DTS/DOLBY/HD zz=03: HDMI 1080i@60Hz, Audio 2CH PCM...
-
Page 12: Package Contents
NET SM xxx.xxx.xxx.xxx Set Subnet Mask Address NET TN XXXX Set Telnet Port NET RB Set Network Reboot and Apply New Config!!! Package Contents 1x BG-PSC6X2-4K 1x 24V/1A power supply 1x Remote control 1x IR Receiver cable. 1x mounting kit. -
Page 13: Maintenance
Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. Warranty Policy BZBGEAR products are warranted against defects in material and workmanship for one year from the date of shipment. During the warranty period, BZBGEAR will, at its option, repair or replace products that prove to be defective. -
Page 14: Exclusive Remedies
The warranty does not cover replacement or repair necessitated by loss or damage from any cause beyond the control of BZBGEAR, such as lightning or other natural and weather-related events or wartime environments. The warranty does not cover any labor involved in the removal and or reinstallation of warranted equipment or parts on site, or any labor required to diagnose the necessity for repair or replacement. -
Page 15: Once You Have Obtained An Rma Number
An RMA number must first be issued by sales. This RMA number will need to be referenced on the outside of the return shipment. Upon receipt of the defective product, BZBGEAR will, at its discretion, either repair or replace the product and ship it out in the most expeditious manner possible. Subject to availability, the replacement product will be shipped on the business day following receipt of the defective product. -
Page 16: Warranty Information (Second Year Assurance)
Warranty Information (Second Year Assurance) BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1. -
Page 17: Mission Statement
Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
