BZ-41S-PA100
4K@60 4×1 Switcher with
2×50W Audio Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BZ-41S-PA100 and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BZ-41S-PA100

Summary of Contents for BZB Gear BZ-41S-PA100

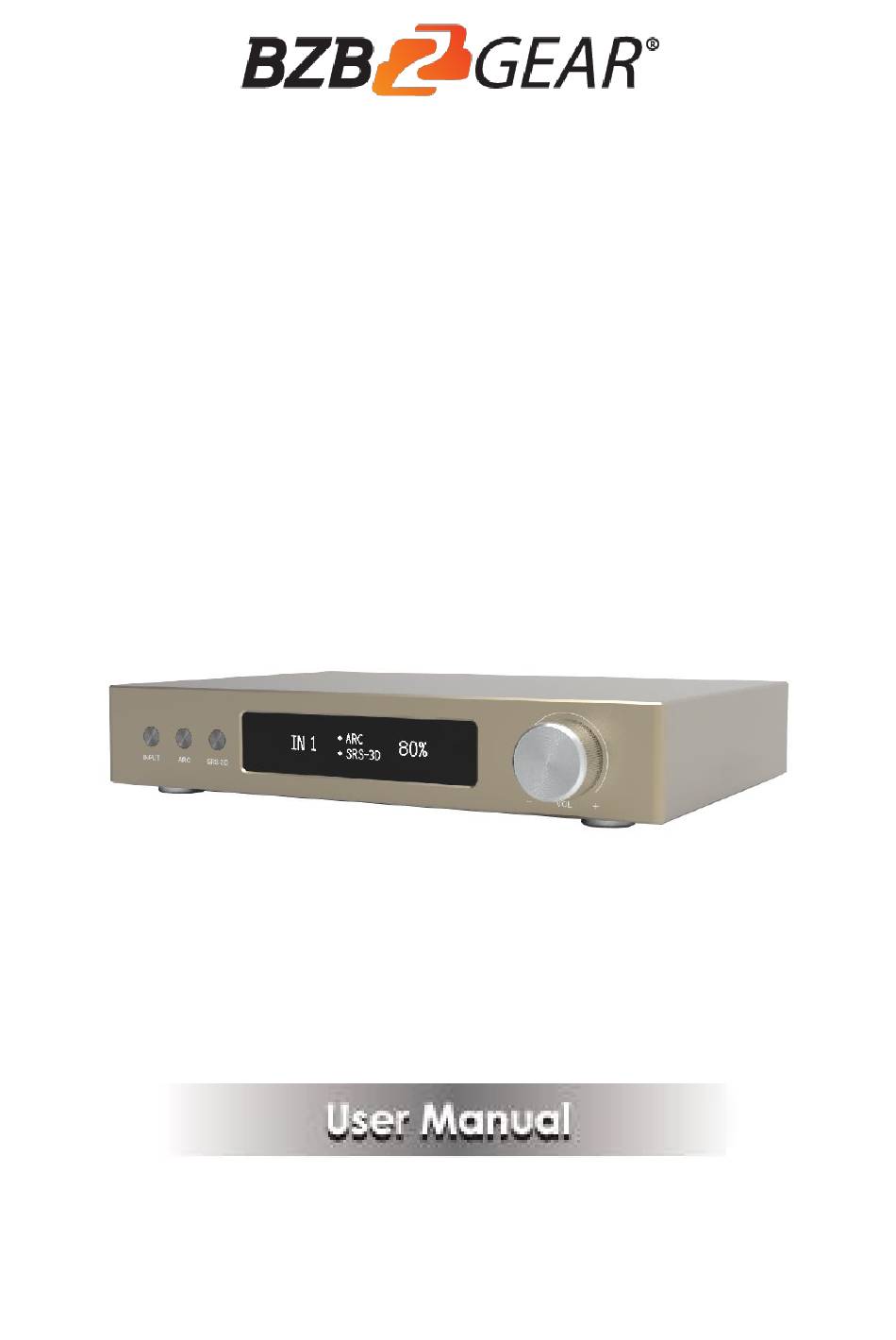

  • Page 1 BZ-41S-PA100 4K@60 4×1 Switcher with 2×50W Audio Amplifier...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    The BZ-41S-PA100 4×1 Switcher supports four HDMI high-definition inputs and one HDMI output, the highest resolution is up to 4K60Hz YCbCr 4:4:4, HDCP 2.2. It supports external analog audio input. It can extract HDMI audio and external analog audio to analog audio and 2×50W amplifier output. The product supports Audio Return Channel (ARC) function and 3D sound effect.

  • Page 4: Specifications

    ⑤ 1× Phoenix Connector (4-pin, male) ⑥ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Video Resolution 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (YCbCr 4:4:4) HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Signal-Noise ratio ＞94dB...

  • Page 5: Front Panel

    5.1 Front Panel Number Name Function description INPUT button The OLED screen will display relevant informationwhen the INPUT button selects one input source. ARC button Start and stop ARC function. The OLED on front panel will display when the ARC is started. SRS-3D button Start and stop the 3D function.

  • Page 6: Remote Control

    ▪ RS-232 port: For firmware updated use. ▪ SPEAKER port: Connect to speaker output. The port outputs audio from 1~5 INPUT source. (Note: LINE port and SPEAKER port output the same audio.) DC 24V Connect to 24V/3.75A adapter to AC wall outlet for power supply.

  • Page 7: Mission Statement

    We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank. BZB Gear is the solution for small to medium-sized applications requiring the latest professional products in AV.

  • Page 8: Warranty Information

    9. Warranty Information BZB Gear | Second Year Assurance BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple, just follow the steps below: 1.
  • Page 9 For complete warranty information, please visit BZBGear.com/warranty or scan the QR code below. *Terms and conditions apply. Registration is required.
